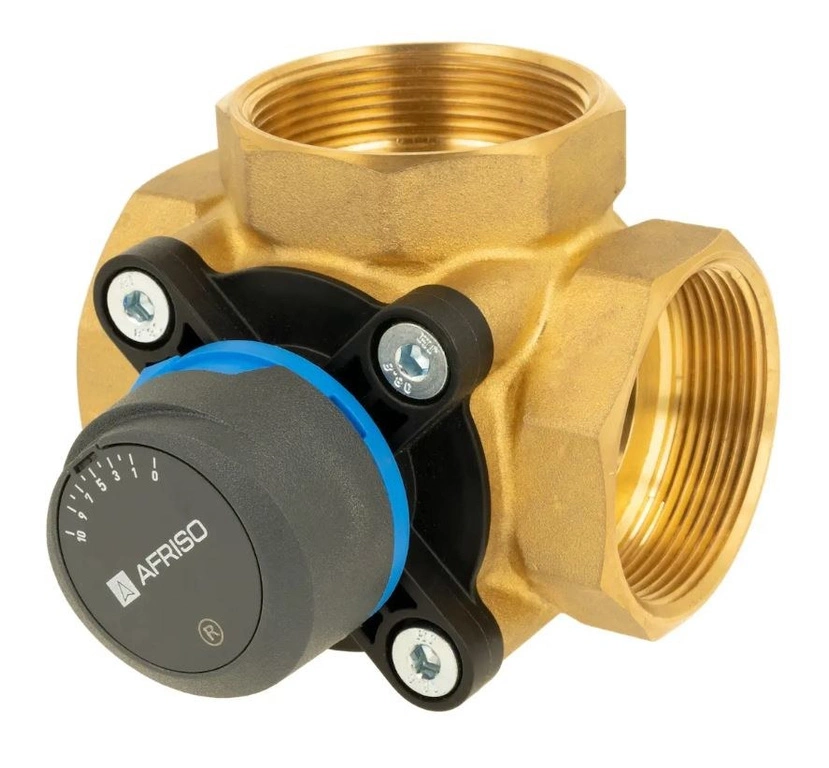

Rotary 3-way mixing valve ARV 386 Vario ProClick, DN40, Rp1 1/2 inch Kvs=14-36

aRV 386 Vario ProClick 3-way rotary mixing valve - DN40, Kvs 14-36

Valve **ARV 386 Vario ProClick** is a high-end 3-way mixing valve, ideal for heating and cooling systems. The DN40 version with **Rp 1½"** connection and Kvs flow control in the range **14-36 m³/h** allows flexible adaptation to different system requirements.

Application

• Mixing of medium streams in heating and cooling systems
• Temperature control in central heating, heat pump, solar systems
• Possible operation as a switching or diverting valve
• Modernization or expansion of existing installations

Technical specifications

Main advantages

• Wide range flow control (Kvs 14-36)
• System **ProClick** - actuator assembly without tools
• Low torque, which extends the life of the actuator
• Robust design for high pressures and temperatures
• Versatile application in heating and cooling systems

Installation and usage notes

• Choose an actuator compatible with the ProClick mechanism for easy installation
• Set the correct Kvs range with the lever according to system specifications
• Ensure that the pressure differential in the system does not exceed 1 bar
• Use media in accordance with the permissible temperature range and composition (e.g., glycol up to 50%)
