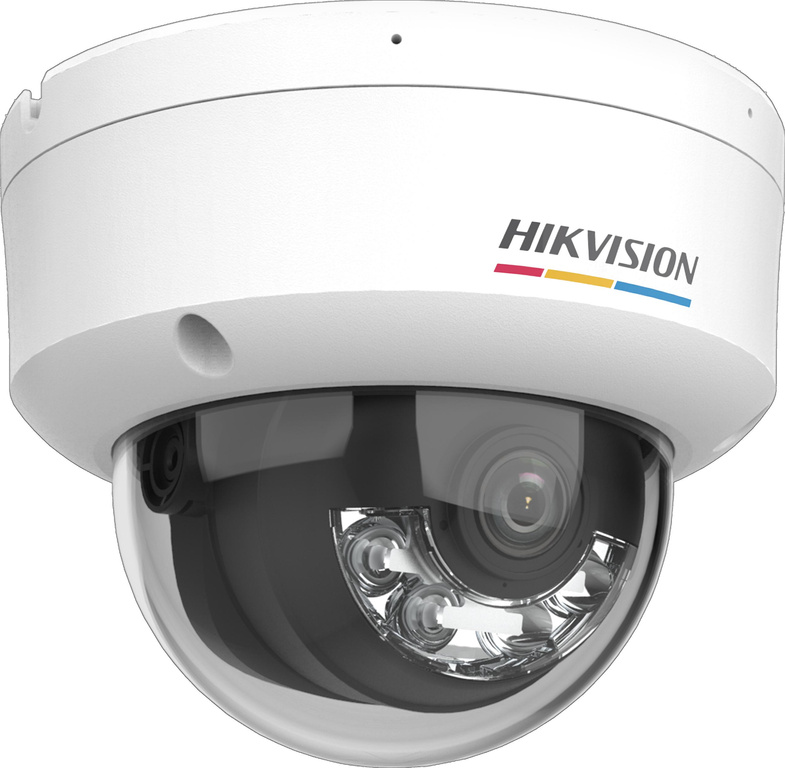

Hikvision IP camera DS-2CD1147G2H-LIU 2.8mm PL

Technical specifications

Image sensor:1/3" Progressive Scan CMOS

Maximum resolution:2560 × 1440 (4 MP)

Minimum illumination:

• Color: 0.0014 Lux @ (F1.0, AGC ON)
• B/W: 0 Lux with IR on

Lens:2.8mm fixed focal length

Viewing angle:

• Horizontal: 105,2°
• Vertical: 55.4°
• Diagonal: 125.4°

Illuminator:

• IR LED with up to 30m range
• White light LED with up to 30m range

Illuminator modes:

• IR (black and white image)
• White light (color image)
• SMART mode (automatically switches between IR and white light when a person or vehicle is detected)

Video compression:H.265+/H.265/H.264+/H.264

Image features:

• WDR (120 dB)
• 3D DNR
• BLC
• HLC

Video analysis:Motion detection 2.0 with human/vehicle classification

Network interface:RJ-45 10/100 Mbps

Memory card slot:Up to 256 GB

Built-in microphone:Yes

Power supply:12 V DC ±25%, PoE (802.3af)

Power consumption:Max. 5.5 W

Operating temperature:-30°C to 60°C

Degree of protection:IP67, IK08

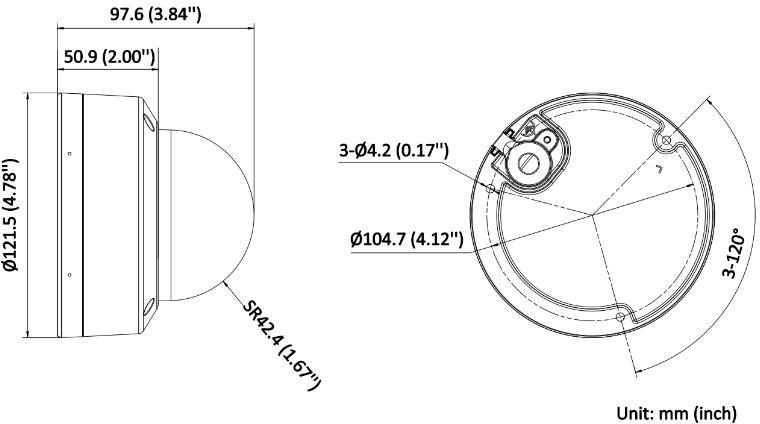

Dimensions:Φ 110 mm × 96.6 mm

Weight:Approximately 500 g
