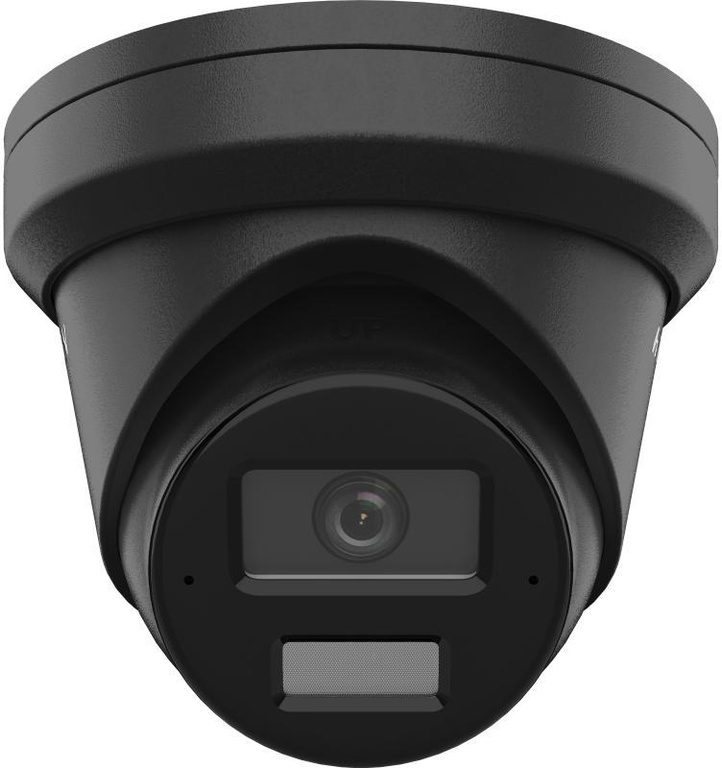

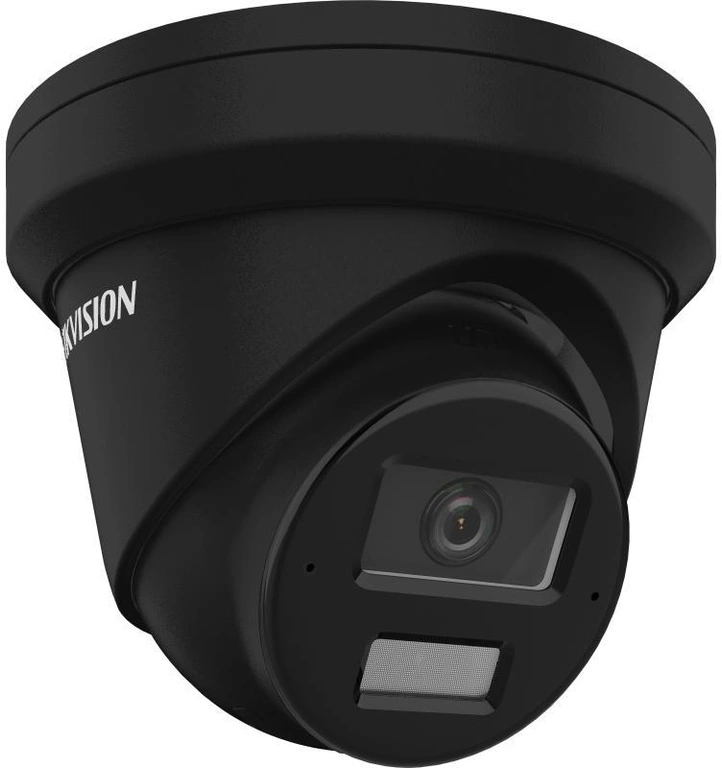

Hikvision IP Camera DS-2CD2383G2-LI2U 2.8mm BLACK PL
Hikvision IP Camera DS-2CD2383G2-LI2U 2.8mm BLACK PL
- The Hikvision DS-2CD2383G2-LI2U 2.8mm BLACK PL IP camera is an advanced device with 8 MP resolution. It offers smart hybrid lighting, dual microphone, Acusense technology and water and dust resistance (IP67). Ideal for surveillance.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Hikvision IP Camera DS-2CD2383G2-LI2U 2.8mm BLACK PL
Purpose
8 MP Acusense Smart Hybrid Light Fixed turret network camera
- High-quality images in 8 MP resolution
- Acusense: Classify alarms caused by people and vehicles based on deep learning technology
- Intelligent Hybrid Lighting: Integrated infrared and white lights, 4 additional lighting modes
- -2U: Built-in dual microphone for high real-time audio quality
- Clear imaging in strong backlight with 120 dB true WDR technology
- Efficient H.265+ compression technology
- Water and dust resistant (IP67)
APLICATION HIK-CONNECT
ApLication of mobile Hik-Connect, enables remote management of products. Hik-Connect also provides a login mode where you can manage your devices without registration. After installing apLication on your phone, you can access your devices via Wi-Fi, 3G or 4G.G
Technicnza specifications
| Image sensor | 1/2.8" Progressive Scan CMOS |
| Max resolution | 3840 × 2160 |
| Min. illumination | Color: 0.005 lux at (F1.6, AGC ON), 0 lux with illumination |
| Shutter speed | 1/3 s to 1/100,000 s |
| Day and night | IR cut filter |
| Camera positioning | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Lens type | Fixed focal length lens, 2.8 mm |
| Focal length and field of view | 2.8 mm: horizontal 108°, vertical 59°, diagonal 127° |
| Lens mount | M12 |
| Aperture type | Fixed |
| Aperture | F1.6 |
| Depth of field | 2.8 mm: 1.7 m to ∞ |
| DORI (2.8 mm) | D: 84 m, O: 33 m, R: 16 m, I: 8 m |
| Assist light | Infrared, white light |
| Range of booster light | Up to 30 m |
| Smart SuppLement Light | Yes |
| IR wavelength | 850 nm |
| Main stream (50 Hz) | 20 fps (3840 × 2160); 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Main stream (60 Hz) | 20 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream (50 Hz) | 25 fps (1280 × 720, 640 × 480, 640 × 360) |
| Sub-stream (60 Hz) | 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third stream (50 Hz) | 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Third stream (60 Hz) | 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Notes - 3rd stream | Third stream is supported in some settings |
| Video compression | Main: H.265/H.264/H.264+/H.265+ |
| Sub-stream: H.265/H.264/MJPEG | |
| Third: h.265/h.264 | |
| Video bitrate | 32 Kbps to 16 Mbps |
| H.264 type | Basic Profile, Main Profile, High Profile |
| Type H.265 | Main Profile |
| SVC | H.264 and H.265 encoding |
| Bitrate control | CBR/VBR |
| ROI | 1 fixed region for main stream and sub stream |
| Target trimming | Yes |
| Audio compression (-2U) | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio bitrate (-2U) | 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32-160 Kbps (MP2L2) / 8-320 Kbps (MP3) / 16-64 Kbps (AAC-LC) |
| Sampling frequency (-2U) | 8 kHz / 16 kHz / 32 kHz / 48 kHz |
| Noise filtering (-2U) | Yes |
| Network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets |
| Simultaneous live viewing | Up to 6 channels |
| API | ONVIF (S profile, G profile), ISAPI, SDK, ISUP |
| User/host | Up to 32 users; 3 roles: administrator, operator, user |
| Security | Password protection, compLible password, HTTPS encryption, IP address filter, security audit log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface |
| Clients | iVMS-4200, Hik-Connect, Hik-Central |
| Network storage | NAS (NFS, SMB/CIFS), ANR; with Hikvision memory card: card encryption and status detection |
| Browser-view (pLug-in) | IE 11 |
| Browser - preview without plug-in | Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
| Browser - local services | Chrome 80+, Firefox 80+, Edge 89+, Safari 13+ |
| Switching of image parameters | Yes |
| Day/night switch | Day, night, automatic, schedule |
| Image settings | Rotation mode |
| WDR | 120 dB |
| SNR | ≥ 52 dB |
| Image quality enhancement | BLC, HLC, 3D DNR |
| Privacy mask | 8 programmable polygonal privacy masks |
| Ethernet interface | 1 RJ-45 10M/100M, self-adaptive Ethernet port |
| Built-in microphone (-2U) | Dual array microphone |
| Memory card slot | Built-in microSD/microSDHC/microSDXC slot up to 512GB |
| Reset | Yes |
| Basic events | Motion detection (alarm by target type: human/vehicle), image tampering, exception |
| Linking | FTP/NAS/memory card, monitoring center notification, email, recording trigger, capture trigger |
| Perimeter security (AI) | Line crossing, intrusion; alarm triggering by target type (human and vehicle) |
| Power supply | 12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm plug, reverse polarity protection; PoE: IEEE 802.3af, class 3, max. 9.5 W |
| Material | Metal |
| Dimensions | Ø127.3 mm × 96.3 mm (Ø5.0" × 3.8") |
| Package dimensions | 150 mm × 150 mm × 141 mm (5.9" × 5.5" × 5.5") |
| Weight | Approximately 515 g (1.1 lb) |
| Weight with packaging | Approximately 755 g (1.7 lb) |
| Storage conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% (no cond.) |
| Operating and commissioning conditions | -30 °C to 60 °C (-22 °F to 140 °F), humidity ≤95% (without cond.) |
| Language | Polish |
| General functions | Heartbeat, mirror, flash log, password reset via e-mail, pixel counter, anti-banding |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021; RCM: AS/NZS CISPR 32 2015; IC: ICES-003: Issue 7; KC: KN32: 2015, KN 35: 2015 |
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017; BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005; LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Range: Regulation (EC) No. 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
