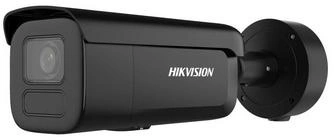

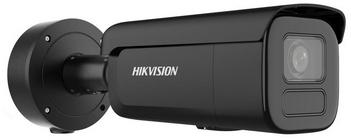

Hikvision IP camera DS-2CD2686G2H-IZS(2.8-12mm)eF/BLACK
Key features:
- High-quality images at 8 MP resolution
- Excellent low-light performance with power-by-DarkFighter technology
- Clear imaging in strong backlight with 120 dB WDR technology
- Efficient H.265+ compression technology
- Human and vehicle triggered alarm classification based on deep learning technology
- Motorized zoom lens for easy installation and monitoring
- Water and dust resistant (IP67) and vandal proof (IK10)
Technical specifications:
| Category / Parameter | Value |
| Camera | |
| Image sensor | 1/1.8" CMOS, progressive scanning |
| Max. resolution | 3840 × 2160 |
| Min. illumination | Color: 0.0008 lux (F1.2, AGC ON), B/W: 0 lux with IR |
| Shutter opening time | 1/3 s - 1/100,000 s |
| Day/Night | IR filter |
| Position setting | Rotation: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Lens | |
| Lens type | Motozoom, 2.8-12 mm |
| Focal length and FOV | Horizontal: 112.3°-41.2°; Vertical: 58.1°-23.1°; Diagonal: 137.4°-47.3° |
| Mounting | Integrated |
| Aperture type | Fixed |
| Aperture | F1.2 |
| Depth of field | 1 m - ∞ |
| DORI | |
| Wide | D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m |
| Tele | D: 220 m, O: 87.3 m, R: 44.0 m, I: 22.0 m |
| Illuminator | |
| Backlight | IR |
| Range | Up to 60 m |
| Smart SuppLement Light | Yes |
| IR | 850 nm |
| Video | |
| Main stream | 50 Hz: 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720) - 60 Hz: 24 fps (3840×2160), 30 fps (3200×1800, 2688×1520, 1920×1080, 1280×720) |
| Sub-stream | 50 Hz: 25 fps (1280×720, 640×480, 640×360) - 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third stream | 10 fps (50/60 Hz) at 1920×1080, 1280×720, 640×480, 640×360 (supported in some settings) |
| Compression | Main: H.265/H.264/H.264+/H.265+ - Sub-stream: H.265/H.264/MJPEG - Third: H.265/H.264 |
| Bitrate | 32 Kbps - 16 Mbps |
| H.264 profiles | Baseline, Main, High |
| H.265 Profile | Main |
| Bitrate control | CBR/VBR |
| SVC | H.264 and H.265 |
| ROI | 1 fixed region for master and slave stream |
| Audio | |
| Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Bitrate | 64 Kbps (G.711u/a), 16 Kbps (G.722.1), 16 Kbps (G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC) |
| Sampling frequency | 8/16/32/44.1/48 kHz |
| Noise filtering | Yes |
| Networking | |
| Protocols | TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket(s), SRTP, SFTP |
| Simultaneous viewing | Up to 6 channels |
| API | ONVIF (S/G/T profile), ISAPI, SDK, ISUP |
| Users/Roles | Up to 32 users; administrator / operator / user |
| Security | Password, complex passwords, HTTPS, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, auth for HTTP/HTTPS (basic/encrypted), WSSE, RTP/RTSP over HTTPS, timeouts, audit log, TLS 1.1/1.2/1.3, MAC authentication |
| Network storage | US (NFS, SMB/CIFS), ANR |
| Clients | iVMS-4200, Hik-Connect, Hik-Central |
| Viewer | PLug-in for Live View: TJ.10, TJ.11 - Plug-in-free: Chrome 57+, Firefox 52+, Edge 89+ - Local services: Chrome 57+, Firefox 52+, Edge 89+ |
| Image | |
| Parameter switching | Yes |
| Image settings | Corridor mode, saturation, brightness, contrast, sharpness, gain, white balance (from client/viewer) |
| Day/Night switch | Day, Night, Auto, Schedule |
| Quality enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| WDR | 120 dB |
| Privacy masks | 4 programmable polygonal zones |
| Interface | |
| Ethernet | 1× RJ-45 10/100M (auto-MDI/MDIX) |
| Card slot | microSD/microSDHC/microSDXC up to 512 GB |
| Audio (connectors) | 1 line input (2-pin, max 3.3 Vpp, 4.7 kΩ, non-equilibrium) - 1 line output (2-pin, max 3.3 Vpp, 100 Ω, non-equilibrium) |
| Alarm | 1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset | Yes |
| Events | |
| Basic | Motion detection (target handling: people/vehicles), exceptions |
| Smart Event | Detection of sudden scene change |
| Linking | FTP/NAS/card, surveillance center notification, email, alarm output, recording, capture, audio warning |
| Deep Learning functions | |
| Face capture | Yes |
| Perimeter protection | Line crossing, intruder, region entry/exit (human/vehicle) |
| General | |
| Power supply | 12 VDC ±25%, 1.21 A, max 14.5 W (2-pin, reverse polarity protection) - PoE: IEEE 802.3at cl. 4, max 18 W |
| Material | Cover: metal, body: metal, bracket: metal |
| Dimensions | Ø140 × 333.8 mm (Ø5.5" × 13.1") |
| Package dimensions | 385 × 190 × 180 mm (15.2" × 7.1" × 7.1") |
| Weight | ~1475 g (with packaging ~2319 g) |
| Storage conditions | -30 °C to 60 °C, RH ≤95% (non-condensing) |
| Operating conditions | -30 °C to 60 °C, RH ≤95% (non-condensing) |
| General functions | Heartbeat, mirror, email password reset, pixel counter, anti-banding |
| Languages | 33 (including PL, EN, DE, FR, RU, IT, ES, PT, ZH, JP, TR, etc.) |
| Certifications | |
| EMC | EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, ICES-003 (Ed.7), RCM (AS/NZS CISPR 32:2015) |
| Safety | CB: IEC 62368-1:2014+A11, CE-LVD: EN 62368-1:2014/A11:2017, LOA: IEC/EN 60950-1 |
| Environment | CE-RoHS 2011/65/EU, WEEE 2012/19/EU, REACH (EC) 1907/2006 |
| Protection | IP67 (IEC 60529:2013), IK10 (IEC 62262:2002) |
