Hikvision IP Camera DS-2CD2687G3-LIZS2UY/SL(2.8-12mm)

Hikvision IP Camera DS-2CD2687G3-LIZS2UY/SL(2.8-12mm)

+ Add to compareAdd to shopping list
  • HikAI-ISP for excellent noise reduction Color images 24/7 thanks to ColorVu WDR technology with scene adaptation Focus on person and vehicle classification based on deep learning Built-in dual microphone for high quality
Size
P/N:

552,96 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
Product available in our warehouse
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in our warehouse
Shipment
Cheap and fast delivery
30 days for easy returns
This store offers an additional guarantee of up to €20,000 and Trusted Shops insurance. You receive the purchased item or a refund.
After purchase you will receive pts.
Brand
Hikvision
Symbol
DS-2CD2687G3-LIZS2UY/SL(2.8-12mm)
Producer code
6936422121143
Warranty
24 Months Warranty

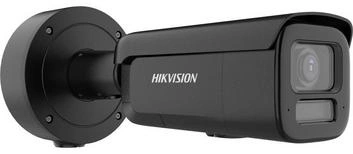

Hikvision DS-2CD2687G3-LIZS2UY/SL(2.8-12mm) IP camera

Key features:

  • HikAI-ISP for excellent noise reduction effect
  • 24/7 color images thanks to ColorVu technology
  • WDR with adaptation to the scene
  • Focus on person and vehicle classification based on deep learning
  • Built-in dual microphone for high quality real-time audio
  • Built-in two-way audio system
  • Anti-corrosion design for reliability and durability compared to the standard (NEMA4X)
  • Intelligent hybrid lighting: Integrated infrared and white lights, 3 additional lighting modes
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Active strobe light and audible alarm to deter intruders

Technical specifications:

Category / Parameter Value
Camera
Image sensor 1/1.8" CMOS, progressive scanning
Max. resolution 3840 × 2160
Min. illumination Color: 0.001 lux (F1.2, AGC ON), 0 lux with illuminator
Shutter opening time 1 s - 1/100,000 s
Day/night IR filter
Position setting Rotation: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360°
Lens
Lens type Motozoom, 2.8-12 mm
Focal length and FOV 2.8-12 mm; Horizontal: 112.3°-41.2°; vertical: 58.1°-23.1°; diagonal: 137,4°-47,3°
Mounting Integrated
Aperture type Fixed
Aperture F1.2
Depth of field 1 m - ∞
DORI
Wide D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
Tele D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m
Illuminator
Backlight White + IR
Range Up to 60 m
Smart SuppLement Light Yes
IR 850 nm
Video
Main stream 50 Hz: 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
60 Hz: 30 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720)
Sub-stream 50 Hz: 25 fps (1280×720, 640×480, 640×360)
60 Hz: 30 fps (1280×720, 640×480, 640×360)
Third stream 10 fps (50/60 Hz) at 1920×1080, 1280×720, 640×480, 640×360 (supported in some settings)
Compression Main: H.265/H.264/H.264+/H.265+ - Sub-stream: H.265/H.264/MJPEG - Third: H.265/H.264
Bitrate 32 Kbps - 16 Mbps
H.264 profiles Baseline, Main, High
H.265 Profile Main
Bitrate control CBR/VBR
SVC H.264 and H.265
ROI 1 fixed area (main stream)
Audio
Type Mono
Compression G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
Bitrate 64 Kbps (G.711u/a), 16 Kbps (G.722.1), 16 Kbps (G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC)
Sampling frequency 8/16/32/48 kHz
Noise filtering Yes
Networking
Protocols TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket(s), SRTP, SFTP
Simultaneous viewing Up to 6 channels
API ONVIF (S/T/G profile), ISAPI, SDK, ISUP
Users/Roles Up to 32 users; administrator / operator / user
Security Password, complex passwords, HTTPS, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, auth for HTTP/HTTPS (basic/encrypted), WSSE, RTP/RTSP over HTTPS, timeouts, audit log, TLS 1.1/1.2/1.3, MAC authentication
Network storage US (NFS, SMB/CIFS), ANR
Clients iVMS-4200, Hik-Connect, Hik-Central
Browser Plugless Live View: Chrome 80+, Firefox 80+, Edge 89+ - Local Services: Chrome 80+, Firefox 80+, Edge 89+
Parameter switching Yes
Image settings Corridor mode, saturation, brightness, contrast, sharpness, gain, white balance (from client/viewer)
Day/Night switch Day, Night, Auto, Schedule
Quality enhancement BLC, HLC, 3D DNR, distortion correction, fog reduction
SNR ≥ 52 dB
WDR 130 dB
Stabilization EIS
Privacy masks 4 programmable polygonal zones
Interface
Ethernet 1× RJ-45 10/100M (auto)
Card slot microSD/microSDHC/microSDXC up to 512 GB
Built-in speaker Max 2 W, SPL: 10 cm = 120 dB
Audio (connectors) Dual array microphone; 1 line input (2-pin, max 3.3 Vpp, 4.7 kΩ, non-equilibrium) - 1 line output (2-pin, max 3.3 Vpp, 100 Ω, non-equilibrium)
Alarm 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A)
Reset Yes
Events
Basic Motion detection (human/vehicle), tampering, exceptions
Smart Event Detection of sudden scene change
Linking FTP/NAS/card, surveillance center, recording, capture, email, audio alarm, strobe light flashing
Deep Learning functions
Face capture Yes
Perimeter protection Line, intruder, entry/exit region (human/vehicle)
General
Power supply 12 VDC ±25%, 1.21 A, max 14.5 W (2-pin, reverse polarity protection) - PoE: IEEE 802.3at cl. 4, max 18 W
Material Cover: metal, body: metal, bracket: metal
Dimensions Ø140 × 333.8 mm (Ø5.51" × 13.14")
Package dimensions 386 × 190 × 180 mm (15.2" × 7.5" × 7.1")
Weight ~1555 g (with packaging ~2366 g)
Storage conditions -30 °C to 60 °C, RH ≤95% (non-condensing)
Operating conditions -30 °C to 60 °C, RH ≤95% (non-condensing)
General functions Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding
Languages 33 (including PL, EN, DE, FR, RU, IT, ES, PT, ZH, JP, TR, etc.)
Flashing light Model /SRB: red+blue - Model /SL: white
Certifications
EMC EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017
Environment CE-RoHS: 2011/65/EU
Protection IP67 (IEC 60529:2013), IK10 (IEC 62262:2002)
Corrosion protection NEMA 4X (NEMA 250-2018)
