Hikvision IP Camera DS-2CD2687G3-LIZS2UY/SL(2.8-12mm)BLACK
Hikvision IP Camera DS-2CD2687G3-LIZS2UY/SL(2.8-12mm)BLACK
- HikAI-ISP for excellent noise reduction Color images 24/7 thanks to ColorVu WDR technology with scene adaptation Focus on person and vehicle classification based on deep learning Built-in dual microphone for high quality
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Hikvision IP camera DS-2CD2687G3-LIZS2UY/SL(2.8-12mm)BLACK
Key features:
- HikAI-ISP for excellent noise reduction effect
- 24/7 color images thanks to ColorVu technology
- WDR with adaptation to the scene
- Focus on person and vehicle classification based on deep learning
- Built-in dual microphone for high quality real-time audio
- Built-in two-way audio system
- Anti-corrosion design for reliability and durability compared to the standard (NEMA4X)
- Intelligent hybrid lighting: Integrated infrared and white lights, 3 additional lighting modes
- Water and dust resistant (IP67) and vandal proof (IK10)
- Active strobe light and audible alarm to deter intruders
Technical specifications:
| Category / Parameter | Value |
| Camera | |
| Image sensor | 1/1.8" CMOS, progressive scanning |
| Max. resolution | 3840 × 2160 |
| Min. illumination | Color: 0.001 lux (F1.2, AGC ON), 0 lux with illuminator |
| Shutter opening time | 1 s - 1/100,000 s |
| Day/night | IR filter |
| Position setting | Rotation: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° |
| Lens | |
| Lens type | Motozoom, 2.8-12 mm |
| Focal length and FOV | 2.8-12 mm; Horizontal: 112.3°-41.2°; vertical: 58.1°-23.1°; diagonal: 137,4°-47,3° |
| Mounting | Integrated |
| Aperture type | Fixed |
| Aperture | F1.2 |
| Depth of field | 1 m - ∞ |
| DORI | |
| Wide | D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m |
| Tele | D: 220.0 m, O: 87.3 m, R: 44.0 m, I: 22.0 m |
| Illuminator | |
| Backlight | White + IR |
| Range | Up to 60 m |
| Smart SuppLement Light | Yes |
| IR | 850 nm |
| Video | |
| Main stream | 50 Hz: 25 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720) - 60 Hz: 30 fps (3840×2160, 3200×1800, 2688×1520, 1920×1080, 1280×720) |
| Sub-stream | 50 Hz: 25 fps (1280×720, 640×480, 640×360) - 60 Hz: 30 fps (1280×720, 640×480, 640×360) |
| Third stream | 10 fps (50/60 Hz) at 1920×1080, 1280×720, 640×480, 640×360 (supported in some settings) |
| Compression | Main: H.265/H.264/H.264+/H.265+ - Sub-stream: H.265/H.264/MJPEG - Third: H.265/H.264 |
| Bitrate | 32 Kbps - 16 Mbps |
| H.264 profiles | Baseline, Main, High |
| H.265 Profile | Main |
| Bitrate control | CBR/VBR |
| SVC | H.264 and H.265 |
| ROI | 1 fixed area (main stream) |
| Audio | |
| Type | Mono |
| Compression | G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC |
| Bitrate | 64 Kbps (G.711u/a), 16 Kbps (G.722.1), 16 Kbps (G.726), 32-192 Kbps (MP2L2), 8-320 Kbps (MP3), 16-64 Kbps (AAC-LC) |
| Sampling frequency | 8/16/32/48 kHz |
| Noise filtering | Yes |
| Networking | |
| Protocols | TCP/IP, ICMP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP/RTSP/RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket(s), SRTP, SFTP |
| Simultaneous viewing | Up to 6 channels |
| API | ONVIF (S/T/G profile), ISAPI, SDK, ISUP |
| Users/Roles | Up to 32 users; administrator / operator / user |
| Security | Password, complex passwords, HTTPS, 802.1X (EAP-TLS/LEAP/MD5), watermark, IP filter, HTTP/HTTPS auth (basic/encrypted), WSSE, RTP/RTSP over HTTPS, timeouts, audit log, TLS 1.1/1.2/1.3, MAC authentication |
| Network storage | US (NFS, SMB/CIFS), ANR |
| Clients | iVMS-4200, Hik-Connect, Hik-Central |
| Browser | Plugless Live View: Chrome 80+, Firefox 80+, Edge 89+ - Local Services: Chrome 80+, Firefox 80+, Edge 89+ |
| Image | |
| Parameter switching | Yes |
| Image settings | Corridor mode, saturation, brightness, contrast, sharpness, gain, white balance (from client/viewer) |
| Day/Night switch | Day, Night, Auto, Schedule |
| Quality enhancement | BLC, HLC, 3D DNR, distortion correction, fog reduction |
| SNR | ≥ 52 dB |
| WDR | 130 dB |
| Stabilization | EIS |
| Privacy masks | 4 programmable polygonal zones |
| Interface | |
| Ethernet | 1× RJ-45 10/100M (auto) |
| Card slot | microSD/microSDHC/microSDXC up to 512 GB |
| Built-in speaker | Max 2 W, SPL 120 dB @ 10 cm |
| Audio (connectors) | Dual array microphone; 1 line input (2-pin, max 3.3 Vpp, 4.7 kΩ, non-equilibrium) - 1 line output (2-pin, max 3.3 Vpp, 100 Ω, non-equilibrium) |
| Alarm | 2 inputs, 2 outputs (max. 24 VDC/24 VAC, 1 A) |
| Reset | Yes |
| Events | |
| Basic | Motion detection (human/vehicle), tampering, exceptions |
| Smart Event | Detection of sudden scene change |
| Linking | FTP/NAS/card, notification to center, recording, capture, email, audio alarm, strobe light flashing |
| Deep Learning functions | |
| Face capture | Yes |
| Perimeter protection | Line, intruder, entry/exit region (human/vehicle) |
| General | |
| Power supply | 12 VDC ±25%, 1.21 A, max 14.5 W (2-pin, polarity protection) - PoE: IEEE 802.3at cl. 4, max 18 W |
| Material | Cover: metal, body: metal, bracket: metal |

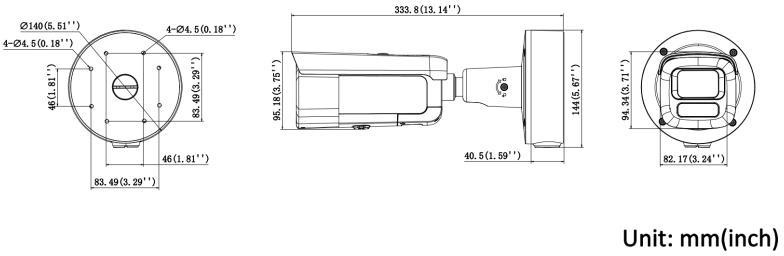

| Dimensions | Ø140 × 333.8 mm (Ø5.51" × 13.14") |
| Package dimensions | 386 × 190 × 180 mm (15.2" × 7.5" × 7.1") |
| Weight | ~1555 g (with packaging ~2366 g) |
| Storage conditions | -30 °C to 60 °C, RH ≤95% (non-condensing) |
| Operating conditions | -30 °C to 60 °C, RH ≤95% (non-condensing) |
| General functions | Heartbeat, mirror, flash log, email password reset, pixel counter, anti-banding |
| Languages | 33 (including PL, EN, DE, FR, RU, IT, ES, PT, ZH, JP, TR, etc.) |
| Flashing light | Model /SRB: red+blue - Model /SL: white |
| Certifications | |
| EMC | EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 |
| Safety | UL 62368-1; CB: IEC 62368-1:2014+A11; CE-LVD: EN 62368-1:2014/A11:2017 |
| Environment | CE-RoHS: 2011/65/EU |
| Protection | IP67 (IEC 60529:2013), IK10 (IEC 62262:2002) |
| Corrosion protection | NEMA 4X (NEMA 250-2018) |
