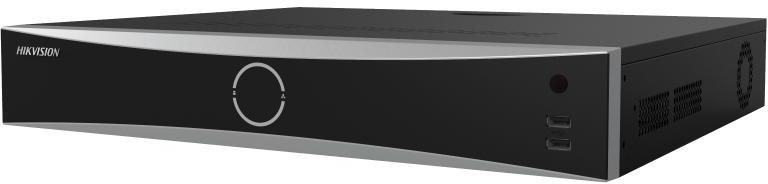

Hikvision IP DVR DS-7732NXI-K4 D PL

Key features: Up to 32-channel IP camera inputs Video formats: H.265+/H.265/H.264+/H.264 Capable of decoding up to 2 channels at 12 MP or 3 channels at 8 MP or 6 channels at 4 MP or 12 channels at 1080p Incoming bandwidth up to 256 Mbps

Brand

Symbol

DS-7732NXI-K4 D PL

Producer code

6936422133290

Hikvision DS-7732NXI-K4 D IP DVR PL

Key features:

Up to 32-channel IP camera inputs
Video formats: H.265+/H.265/H.264+/H.264
Decode up to 2 channels at 12 MP or 3 channels at 8 MP or 6 channels at 4 MP or 12 channels at 1080p
Incoming bandwidth up to 256 Mbps

APLICATION HIK-CONNECT

ApLication of Hik-Connect, a mobile app, enables remote management of products. Hik-Connect also provides a login mode where you can manage your devices without registration. After installing apLication on your phone, you can access your devices via Wi-Fi, 3G or 4G.G

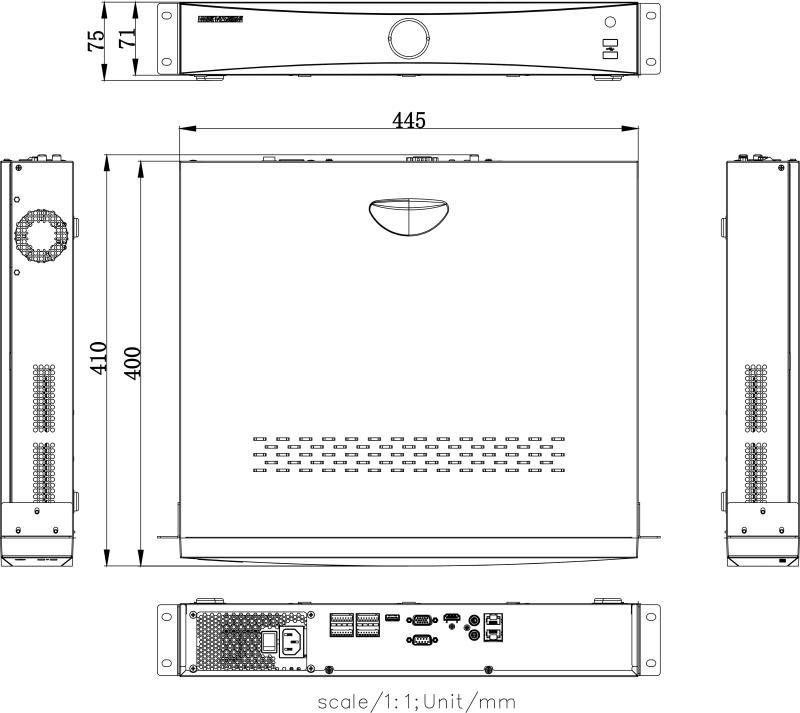

Dimensions

Technical specifications

AI on the device	Face recognition, area protection, motion detection 2.0
AI in the camera	Face recognition, area protection, throwing objects from building, motion detection 2.0, ANPR, VCA
Face detection and analysis	Face image comparison, face image registration, face image search
Face image library	Up to 16 libraries, up to 20,000 images in total (≤ 4 MB/piece, max. 1 GB)
Face detection and analysis performance	1 channel, 8 MP
Face photo comparison	4 channels
Motion detection 2.0 (camera)	All channels
Perimeter security (device)	Video analysis 2-channel, 4 MP (H.264/H.265), human and vehicle recognition, false alarm reduction
Perimeter security (camera)	All channels
Supported IP cameras	32 channels
Incoming bandwidth	256 Mbps
Outgoing bandwidth	160 Mbps
HDMI output	1 channel: 4K (3840 × 2160/30 Hz), 2K (2560 × 1440/60 Hz), 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA output	1 channel: 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
Video output mode	HDMI and VGA independent
CVBS output	N/A
Audio output	1 channel, RCA (linear, 1 kΩ)
Two-way audio	1 channel, RCA (2.0 Vp-p, 1 kΩ) - using first audio input
Decoding format	H.265+/H.265/H.264+/H.264
Recording resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	16 channels
Decoding capability (AI enabled)	2-ch. 12 MP@30fps / 3chan. 8 MP@30fps / 6-ch. 4 MP@30fps / 12-ch. 1080p@30fps
Decoding capability (AI disabled)	2-ch. 12 MP@30fps / 4-ch. 8 MP@30fps / 8-ch. 4 MP@30fps / 16-ch. 1080p@30fps
Stream type	Video, Video + Audio
Audio compression	G.711ulaw/G.711alaw/G.722/G.726/AAC
Remote connections	128
API	ONVIF (S/G profile), SDK, ISAPI
Browsers	IE11, Chrome ≥57, Firefox ≥52, Safari ≥12, Edge ≥89
Network protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Network interface	2 × RJ-45 10/100/1000M, self-adaptive
SATA	4 interfaces
Disk capacity	Up to 16 TB per disk
Serial interface	2 × RS-485 (half-dupLex), 1 × RS-232
USB interface	Front panel: 2 × USB 2.0; rear: 1 × USB 3.0
Ctrl 12V	N/D (optional)
DC 12 V	N/D (optional)
GUI language	Polish
Power supply	100-240 V AC, 50/60 Hz
Power consumption	≤ 20 W (without HDD)
Operating temperature	-10 °C to 55 °C
Operating humidity	10%-90%
Dimensions (S × G × W)	445 × 400 × 75 mm (17.5" × 15.7" × 3.0")
Weight	≤ 5 kg (without HDD)
EMC certifications	EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035:2017
General certifications	CE, FCC, IC, CB, KC, UL, RoHS, REACH, WEEE, RCM, UKCA, LOA, BIS
