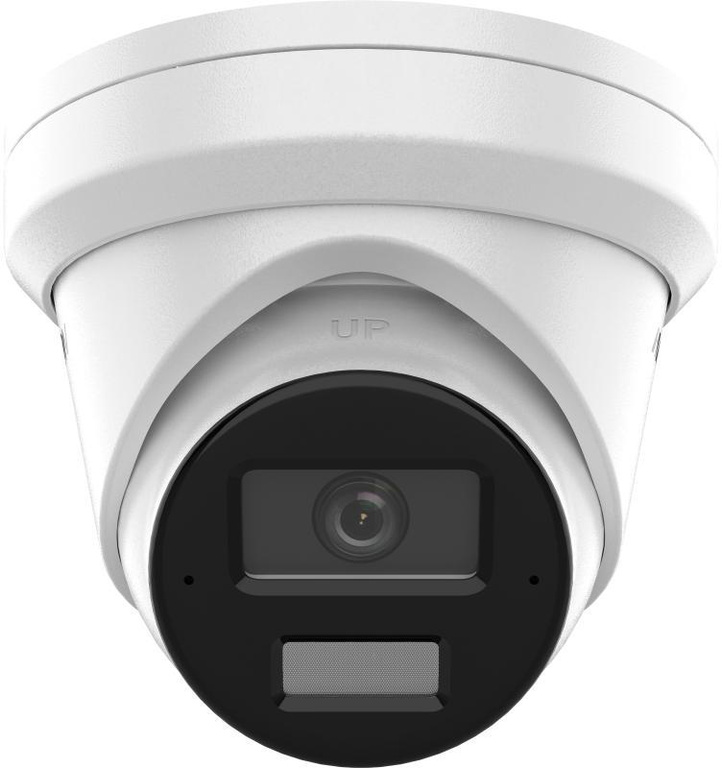

Hikvision IP camera DS-2CD2386G2H-IU 2.8mm EF PL
Key features
8 MP fixed turret network camera with Darkfighter power supply
- High quality images at 8 MP resolution
- Superior low-light performance with power-by-DarkFighter technology
- Clear imaging in strong backlight with 120 dB WDR technology
- Efficient H.265+ compression technology
- Human and vehicle triggered alarm classification based on deep learning technology
- -U: Built-in microphone provides real-time audio
- Water and dust resistant (IP67)
APLICATION HIK-CONNECT
ApLication of the Hik-Connect mobile app, enables remote management of products. Hik-Connect also provides a login mode where you can manage your devices without registration. After installing apLication on your phone, you can access your devices via Wi-Fi, 3G or 4G.G
Technical specifications
| Parameter | Value |
| Image sensor | 1/1.8" Scanning CMOS programming |
| Max. resolution | 3840 × 2160 |
| Min. illumination | Color: 0.0008 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR ON |
| Shutter opening time | 1/3 s to 1/100,000 s |
| Day and night | IR cut-off filter |
| Camera positioning | Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360° |
| Lens type | Fixed focal length lens, 2.8 mm |
| Focal length and field of view | 2.8 mm: horizontal 108.8°, vertical 56.4°, diagonal 134.3° |
| Lens mount | M16 |
| Aperture type | Fixed |
| Aperture | F1.0 |
| Depth of field | 2.8 mm: 3.3 m to ∞ |
| DORI (2.8 mm) | D: 89 m, O: 35 m, R: 17 m, I: 8 m |
| Light assist | IR |
| Range of booster light | Up to 30 m |
| Smart SuppLement Light | Yes |
| IR wavelength | 850 nm |
| Main stream (50 Hz) | 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Main stream (60 Hz) | 24 fps (3840 × 2160); 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream (50 Hz) | 25 fps (1280 × 720, 640 × 480, 640 × 360) |
| Sub-stream (60 Hz) | 30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third stream (50 Hz) | 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Third stream (60 Hz) | 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) |
| Notes - 3rd stream | Third stream is supported in some settings |
| Video compression | Main stream: H.265/H.264/H.264+/H.265+ |
| Sub-stream: H.265/H.264/MJPEG | |
| Third stream: H.265/H.264 | |
| Video bitrate | 32 Kbps to 16 Mbps |
| H.264 type | Basic Profile, Main Profile, High Profile |
| Type H.265 | Main Profile |
| Bitrate control | CBR/VBR |
| Scalable video coding (SVC) | H.264 and H.265 encoding |
| ROI | 1 fixed region for main stream and sub stream |
| Audio compression -U | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Bitrate -U | 64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 16-64 Kbps (AAC-LC) / 32-192 Kbps (MP2L2) / 8-320 Kbps (MP3) |
| Audio sampling frequency -U | 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
| Environmental noise filtering -U | Yes |
| Network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP |
| Simultaneous live viewing | Up to 6 channels |
| API | Open network video interface (S profile, G profile, T profile), ISAPI, SDK, ISUP |
| User/host | Up to 32 users; up to 3 users: administrator, operator and user |
| Security | Password protection, compLible password, HTTPS encryption, 802 authentication.1X (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and encrypted authentication for HTTP/HTTPS, WSSE and encrypted authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network storage | NAS (NFS, SMB/CIFS), automatic network replenishment (ANR) |
| Clients | iVMS-4200, Hik-Connect, Hik-Central |
| Web browser | Required PLug-in for live viewing: TJ. 10, TJ. 11 |
| Plug-in-free live preview: Chrome 57.0+, Firefox 52.0+, Edge 89+ | |
| Local services: Chrome 57.0+, Firefox 52.0+, Edge 89+ | |
| Switching image parameters | Yes |
| Image settings | Corridor mode, saturation, brightness, contrast, sharpness, gain, white balance; adjust in client software or browser |
| Day/night switch | Day, night, automatic, schedule |
| Image enhancement | BLC, HLC, 3D DNR |
| SNR | ≥ 52 dB |
| WDR (Wide Dynamic Range) | 120 dB |
| Privacy mask | 4 programmable polygonal privacy zone masks |
| Ethernet interface | 1 RJ-45 10M/100M, self-adaptive Ethernet port |
| Memory card slot | Built-in memory card slot, supports microSD/microSDHC/microSDXC cards up to 512GB |
| Built-in microphone -U | Yes |
| Reset | Yes |
| Basic events | Motion detection (supporting alarm triggered by specific types of targets (human/vehicle)), image tampering, exception |
| Linking | Upload to FTP/NAS/memory card, notify monitoring center, send email, trigger recording, trigger capture |
| Smart Event | Sudden scene change detection |
| Face capture (Deep Learning) | Yes |
| Perimeter security (AI) | Line crossing, intruder detection, region entry, region exit; support for alarm triggering by specific target types (human and vehicle) |
| Power supply | 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial plug, reverse polarity protection; PoE: IEEE 802.3af, class 3, max. 8 W |
| Material | Cover: metal, main body: metal |
| Dimensions | Ø138.3 mm × 115.4 mm (Ø5.4" × 4.5") |
| Package dimensions | 170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
| Weight | Approximately 775 g (1.7 lb) |
| Weight with packaging | Approximately 1231 g (2.7 lb) |
| Storage conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Operating and commissioning conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General functions | Heartbeat, mirror, password reset via email, pixel counter, anti-banding |
| Language | Polish |
| EMC | CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014; IC: ICES-003: Issue 7; RCM: AS/NZS CISPR 32 2015 |
| Safety | CB: IEC 62368-1: 2014+A11; CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Range: Regulation (EC) No. 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
