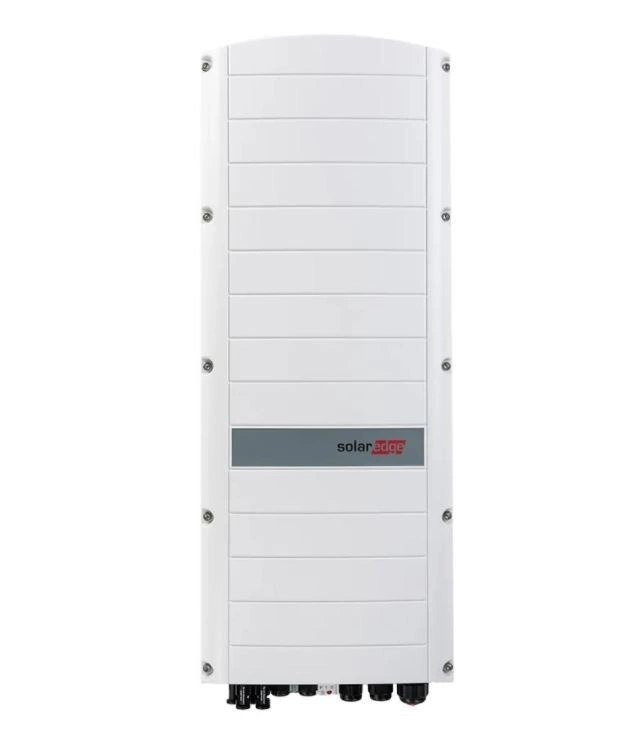

Hybrid Inverter SolarEdge SE10K-RWS48BEN4, SE10K RWS, three-phase, 1 MPPT, Wi-Fi, 10kW
- SolarEdge 10 kW hybrid inverter, three-phase, 1 MPPT, without display, Wi-Fi
Brand
Symbol
SE10K-RWS48BEN4
Producer code
5905515611824
Warranty
Inverter SolarEdge SE10K-RWS48BEN4 Hybrid
Frequency: 50 / 60 Hz
Warranty: 144 months factory warranty
Product Depth: 193 mm
Quantity: 1
Manufacturer Code: SE10K-RWS48BEN4
Product Color: White
Maximum DC Power (Module STC): 5000 W
Maximum Output Power: 10000 VA
Maximum Output Voltage: 900 V
Maximum Input Current per Phase: 16.5 A
Maximum Output Current: 16 A
Maximum Power: 13500 W
AC Output Voltage: 380 / 220 ; 400 / 230 V
Standby Power Consumption: 2.5 W
Noise Level: 50 dB
Grid Connection: Three-phase
Input Current: 130 A
Cooling Type: Radiator/Fan
IP Protection Rating: IP65
Product Width: 316 mm
Topology: Transformerless
Mounting Bracket Included: Yes
Product Weight: 37 kg
Product Height: 853.2 mm
AC Voltage Range: 184 - 264.5 V
Input Voltage Range: 40 - 62 V
Operating Temperature Range: -40 - 60 °C
Rated Output Power: 10000 VA
Rated Input Voltage: 750 V
Connectivity: RS485, Wi-Fi, Zigbee Smart Energy, Ethernet
