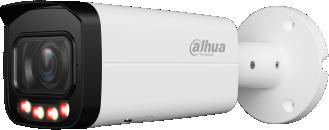

Dahua DH-IPC-HFW3649T-ZAS-IL bullet WizSense Smart Dual Light 6 MP 2.7-13.5 mm surveillance IP camera
- Dahua DH-IPC-HFW3649T-ZAS-IL IP camera for outdoor surveillance, with AI features (SMD 4.0, Perimeter Protection) and 2.7-13.5mm motor-zoom lens
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Dahua DH-IPC-HFW3649T-ZAS-IL 6MP Smart Dual Light Vari-focal Bullet WizSense Network Camera
The Dahua DH-IPC-HFW3649T-ZAS-IL is an advanced 6MP IP camera from the WizSense 3 series, offering a vari-focal lens, Smart Dual Light technology and intelligent features based on deep learning algorithms. The device provides high image quality, resolution up to 3288 × 1850 pixels and full integration with Dahua's AI systems such as SMD 4.0, Perimeter Protection and AcuPick.
- 1/2.7" CMOS sensor with 6 MP resolution
- Motor-zoom lens 2.7-13.5 mm, F1.4
- Smart Dual Light technology (IR and warm light) - range up to 60m
- AI functions: SMD 4.0, Face Detection, AcuPick, AI SSA
- Built-in microphone, IP67 housing, metal construction
Product description
The Dahua DH-IPC-HFW3649T-ZAS-IL camera is part of the WizSense 3 line - a series of Dahua smart devices that use AI algorithms for object classification and analysis. This model features Smart Dual Light, which allows the camera to automatically switch between IR and warm light depending on object detection, providing detailed color images with minimal illumination. In addition, Perimeter Protection and SMD 4.0 functions ensure effective filtering of false alarms by distinguishing between people and vehicles.
Key features
- High image quality: 1/2.7" CMOS sensor, 6 MP resolution (3288 × 1850 @30 fps).
- Smart Dual Light: intelligent switching between IR and warm light (range up to 60m).
- AI SSA: automatic image optimization for lighting conditions.
- Perimeter Protection: intrusion detection, line crossing, loitering and standoff detection.
- Audio: built-in microphone, RCA audio input/output.
- Robust design: metal housing IP67, IK10 (optional).
Technical specifications
| Category | Parameter | Value |
|---|---|---|
| Camera | Image sensor | 1/2.7" CMOS |
| Maximum resolution | 3288 × 1850 (6 MP) | |
| Minimum illumination | 0.005 Lux (color, F1.4) / 0.0005 Lux (B/W) / 0 Lux (IR on) | |
| Illumination range | IR: up to 60 m / Warm light: up to 60 m | |
| Number of LEDs | 4 (IR + warm light, multi-core) | |
| Aperture | F1.4 | |
| Signal-to-noise ratio | >56 dB | |
| Adjustment | Pan: 0°-360°, Tilt: 0°-90°, Rotation: 0°-360° | |
| Lens | Type | Motorized vari-focal |
| Focal length | 2.7-13.5 mm | |
| Viewing angle | H: 114°-32°, V: 58°-17°, D: 138°-36° | |
| Minimum focusing distance | 0.1 m | |
| Intelligence | SMD | SMD 4.0 - classification of people and vehicles |
| IVS | Intrusion, Tripwire, Stay, Loitering Detection | |
| Face Detection | Face detection, snapshot, optimization | |
| AcuPick | Search for people and vehicles in recordings | |
| AI SSA | Automatic image optimization | |
| Video | Compression | H.265 / H.264 / H.264H / H.264B / MJPEG |
| AI Coding | AI H.265 / AI H.264 / Smart H.265+ / Smart H.264+ | |
| Streams | 3 (main, auxiliary, third) | |
| Frame rate | 6 MP @30 fps | |
| Bitrate | 3-16384 kbps | |
| Audio | Microphone | Built-in |
| Input/Output | 1 × RCA in, 1 × RCA out | |
| Compression | G.711a / G.711Mu / PCM / G.726 / G.723 | |
| Power supply and environment | Power supply | 12 VDC / PoE (802.3af) |
| Power consumption | Max 9.9 W (12 VDC) / 12.5 W (PoE) | |
| Operating temperature | -30 °C to +60 °C | |
| Humidity | ≤95% RH, non-condensing | |
| Design | Material | Metal |
| Dimensions | 238.5 × 90.7 × 90.7 mm | |
| Weight | 835 g (net) / 1090 g (gross) | |
| Certifications | Standards | CE-LVD EN62368-1; CE-EMC 2014/30/EU |
| Protection class | IP67, IK10 (optional) |
Technical data source:data sheet for model DH-IPC-HFW3649T-ZAS-IL Link
FAQ
- What resolution does the camera offer? 6 MP (3288 × 1850 pixels).
- Does the camera have a zoom lens? Yes, 2.7-13.5mm with automatic zoom.
- What AI features are supported? SMD 4.0, Perimeter Protection, Face Detection, AcuPick.
- Does the camera work at night in color? Yes, thanks to Smart Dual Light technology.
- What is the power supply of the camera? 12 VDC or PoE (802.3af).
- What is the design of the housing? IP67-rated metal housing.
Summary
Dahua DH-IPC-HFW3649T-ZAS-IL is a professional IP camera with zoom lens and Smart Dual Light technology. With its 6 MP resolution, AI features and robust housing, it is ideal for outdoor surveillance with high quality requirements.
