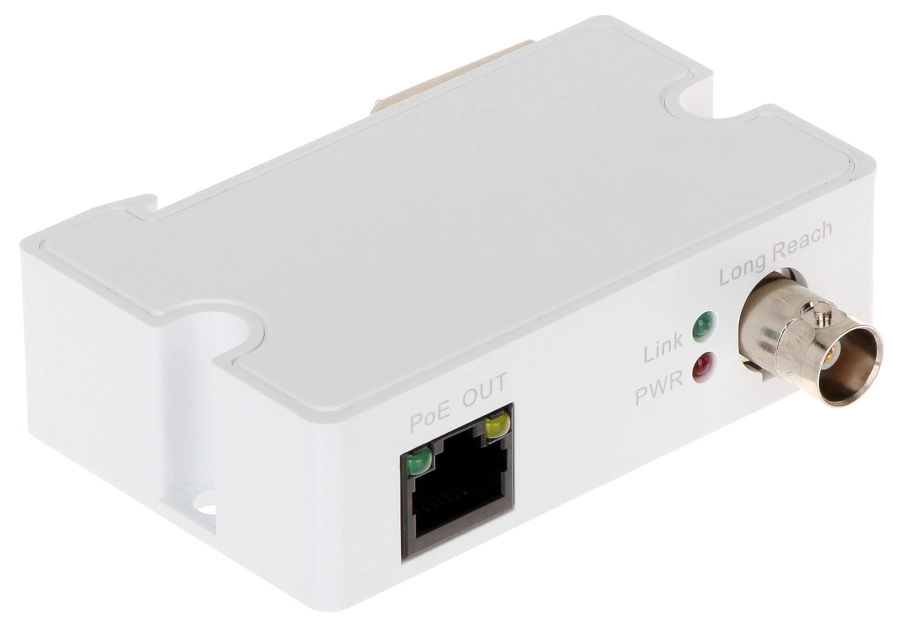

Dahua LR1002-1ET Single-Port Long Reach Ethernet over Coax Extender (Transmitter)
Dahua LR1002-1ET is a transmitter from the LR1002-1ET/LR1002-1EC set, designed to transmit Ethernet signal and PoE power over coaxial cable. The device makes it possible to extend network transmission over a distance of up to 1000 meters using RG59 cable, maintaining high stability and low latency. The kit provides full compatibility with IEEE802.3 and IEEE802.3u standards.
- Ethernet and PoE power transmission over coaxial cable
- RG59 cable support: up to 400 m/100 Mbps or 1000 m/10 Mbps
- Ports: 1 × RJ45 10/100 Mbps, 1 × BNC
- 48V passive PoE power supply
- Surge protection: 4 kV (common mode), 2 kV (differential)
Product description
LR1002-1ET is a transmitter in Dahua Long Reach Ethernet over Coax (LR) system. Combined with the LR1002-1EC receiver, it converts the RJ45 connection to BNC, enabling long-haul data and PoE power transmission over a single coaxial cable. It is ideal for upgrading older CCTV installations based on coaxial cables without having to replace the cabling. The kit allows operation in two modes: 100 Mbps and 10 Mbps, automatically adjusting to the transmission distance.
Key features
- Long transmission range: up to 1000 m over RG59 cable.
- Flexible speeds: 100 Mbps up to 400 m, 10 Mbps up to 1000 m.
- PoE power supply: 48V passive, lines (1,2+ and 3,6-).
- Environmental resistance: operation from -30°C to +65°C.
- PLug & PL ay: automatic MDI/MDIX matching, no configuration required.
Technical specifications
| Category | Parameter | Value |
|---|---|---|
| Model | Designation | LR1002-1ET |
| Ports | Interface | 1 × RJ45 10/100 Mbps, 1 × BNC |
| Power supply | PoE | 48V Passive (1.2+; 3.6-) |
| Power consumption | Maximum | < 2 W |
| Network standard | Protocol | IEEE802.3, IEEE802.3u, IEEE802.3x |
| Protection | Surge protection | 4 kV (common mode), 2 kV (differential mode) |
| Operating temperature | Range | -30°C to +65°C |
| Operating humidity | Range | 5%-95% |
| Housing material | Design | Metal |
| Dimensions | W × D × H | 79 × 52 × 23 mm |
| Weight | Weight | 61 g |
Transmission parameters for RG59 cable (example)
| Length | Transmission speed | Load at 48V | Load at 53V |
|---|---|---|---|
| 100 m | 100 Mbps | 21 W | 25.5 W |
| 200 m | 100 Mbps | 15 W | 24 W |
| 300 m | 100 Mbps | 11 W | 19 W |
| 400 m | 100 Mbps | 9 W | 16 W |
| 500 m | 10 Mbps | 7 W | 13 W |
| 800 m | 10 Mbps | 5 W | 8 W |
| 1000 m | 10 Mbps | 4 W | 6 W |
Technical data source: datasheet of Dahua model LR1002-1ET Link
FAQ
- What is the LR1002-1ET used for? It is an Ethernet-over-Coax transmitter for converting RJ45 signal to BNC and transmitting data and PoE power over coaxial cable.
- What is the maximum transmission distance? Up to 1000m at 10 Mbps.
- Does it support PoE? Yes, 48V passive PoE via 1.2+ and 3.6- pairs.
- How many LR1002-1EC units can be connected to one switcha? A maximum of 8 units.
- Does it require configuration? No, the device operates in PLug & PLay mode.
- What are the operating conditions? Temperature from -30°C to +65°C, humidity 5-95% RH.
Summary
Dahua LR1002-1ET is a professional Ethernet-over-Coax converter for long-distance PoE data and power transmission. Combined with the LR1002-1EC receiver, it provides an effective solution for upgrading analog CCTV installations, offering reliability, easy installation and high compatibility with IP networks.
