FAAC D600 FDS garage door automation kit with 3m Kevlar two-piece rail

FAAC D600 FDS garage door automation kit with 3m Kevlar two-piece rail

A modern solution for your garage - reliability, safety and comfort

Product description

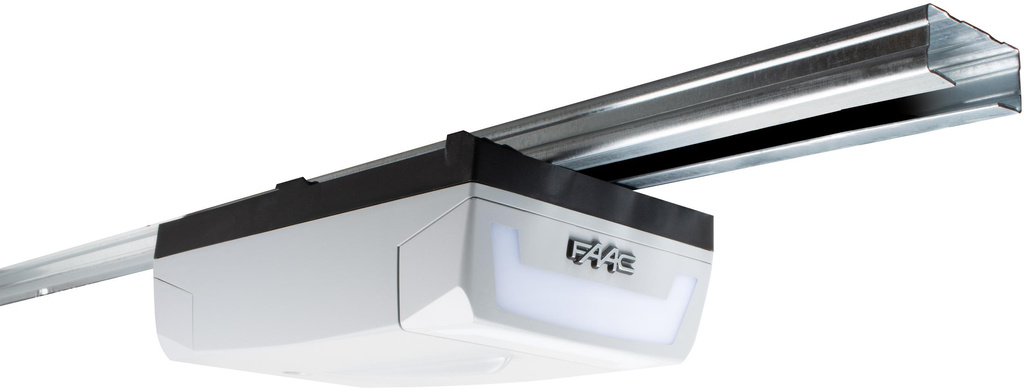

The FAAC D600 FDS automation kit is a complete system designed to automate sectional and overhead garage doors up to 7.5 m². Thanks to the use of a two-piece Kevlar rail with a length of 3 meters, the drive ensures quiet and smooth operation, minimizing noise when opening and closing the gate

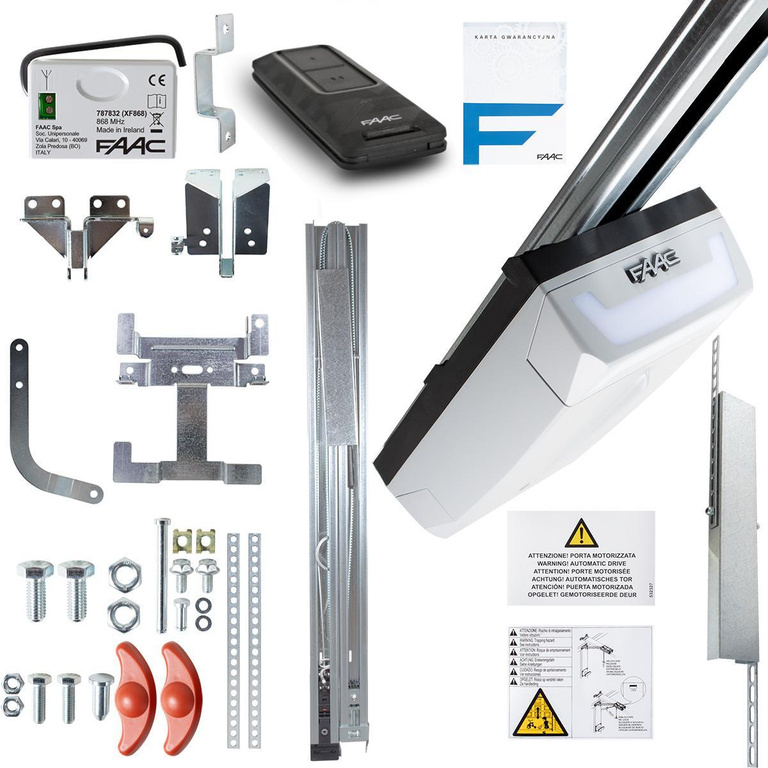

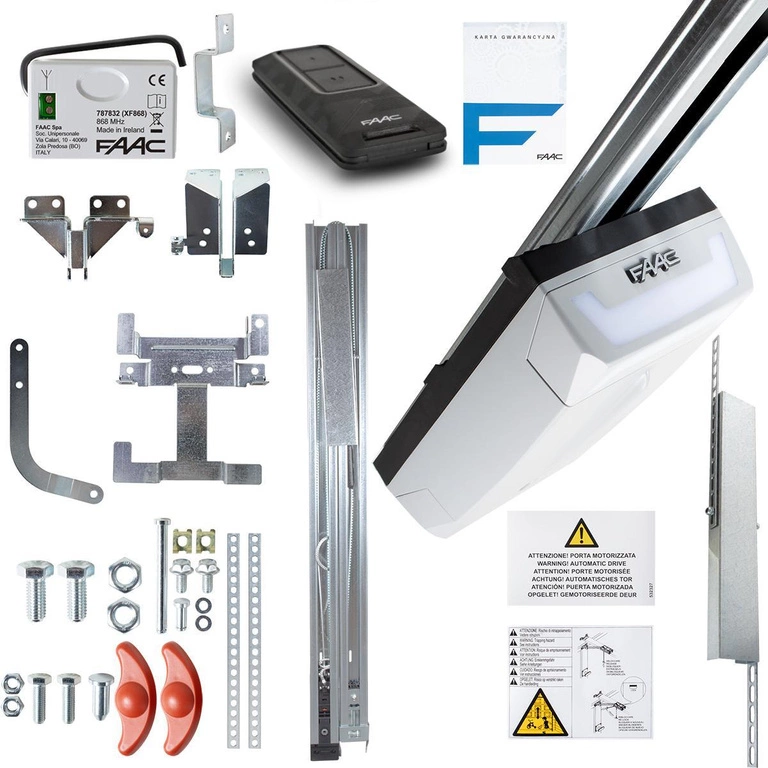

Kit contents

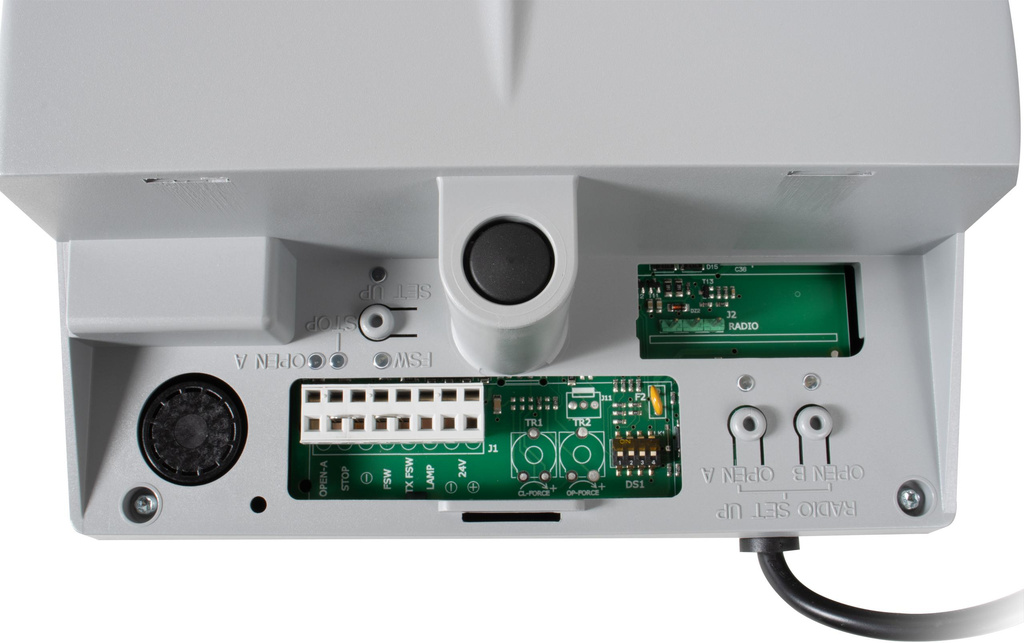

• FAAC D600 operator with built-in E600 control panel

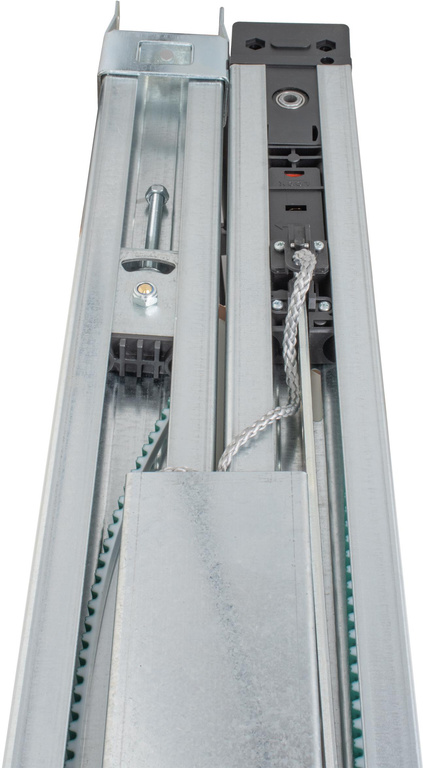

• Two-piece Kevlar rail with a length of 3 meters
• XF 868 MHz radio module

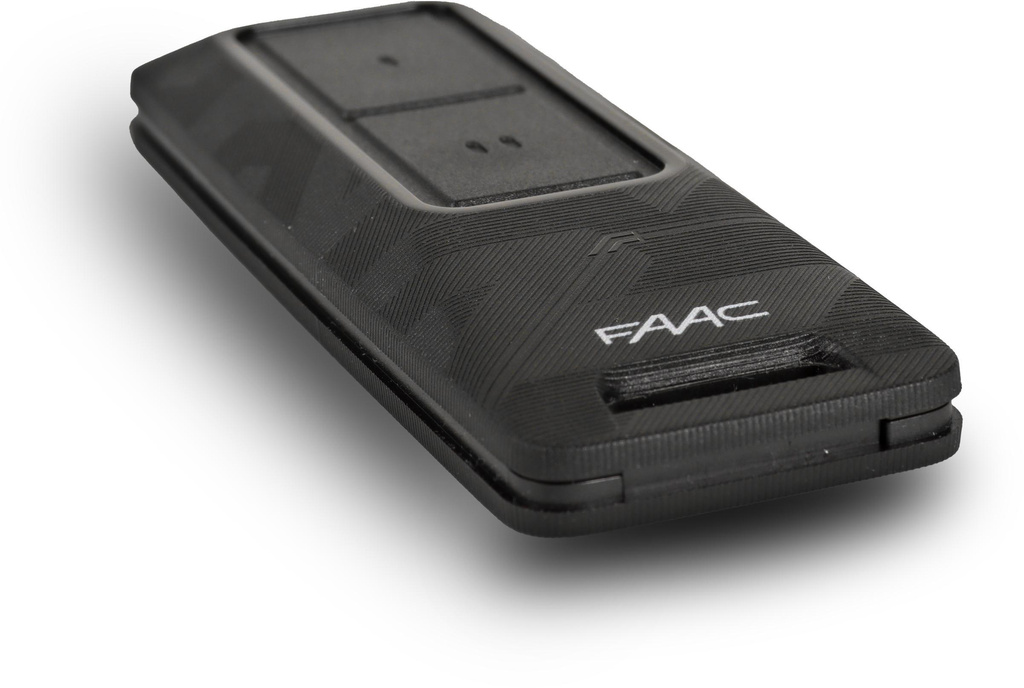

• 2 dual-channel remote controls XT2 868 SLH LR
• Set of mounting elements
• Installation instructions in Polish

Key features and benefits

• Built-in anti-break encoder - if the gateencounters an obstacle during movement, it automatically stops and reverses, ensuring safety of use.
• "Soft Start" and "Soft Stop" functions - soft start and gentle closing of the gate increase the durability of the mechanism and comfort of use.
• Possibility to connect additional control devices - such as buttons, code keypads or magnetic card readers, which increases the flexibility of the system.
• Optional smartphone control - after connecting a WiFi controller (optional), it is possible to remotely control the gate from anywhere in the world.

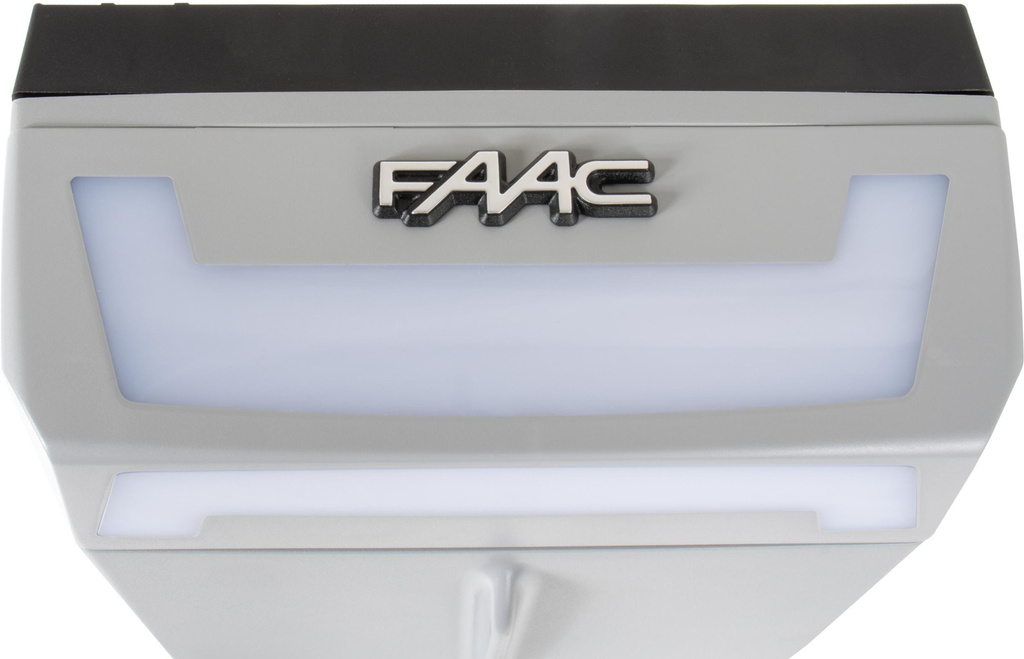

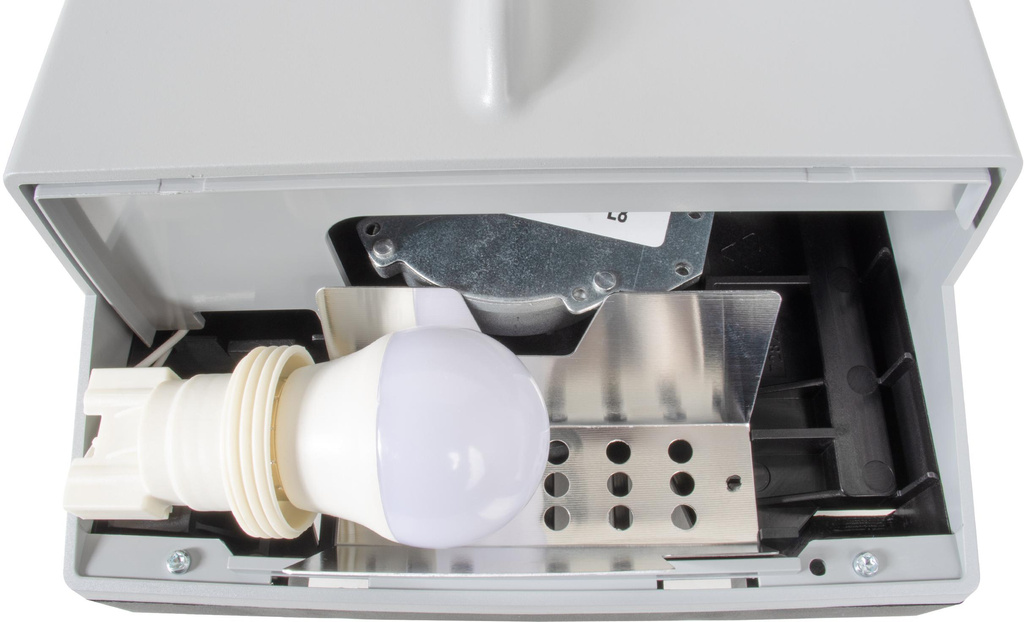

• Automatic illumination of the garage - a built-in lamp illuminates the interior of the garage for 3 minutes after the drive starts working, increasing the comfort of use.
• Possibility to connect an emergency battery - in case of power failure, an optional battery allows you to continue using the gate.

Technical specifications

Parameter	Value
Power supply	230 V
Electric drive	24 V DC
Maximum power consumption	220 W
Maximum thrust	600 N
Operating type	Continuous
External lamp	230 V, 40 W (max)
Operating time of the external lamp	120 s
Standard cart speed	6.6 m/min
Reduced cart speed	3.8 m/min
Speed at deceleration	1.3 m/min
Noise level	45 dB
Protection class	IP20 (for indoor use)
Operating temperature range	from -20°C to +55°C
Dimensions (L x W x H)	360 x 200 x 145 mm

Typical applications

The FAAC D600 FDS is the ideal solution for homeowners who want to automate their garage doors. Thanks to its high thrust force and ability to operate gates of up to 7.5 m², the drive will work well for both sectional and overhead doors

Summary

When you choose the FAAC D600 FDS automation kit, you are investing in a modern, safe and comfortable solution for your garage. Easy installation, quiet operation and the ability to expand with additional functions make it a product that meets the expectations of even the most demanding users
