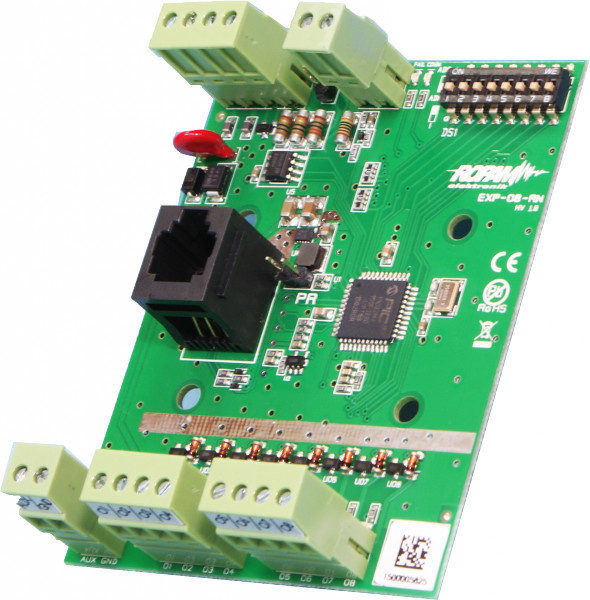

Ropam EXP-O8T-RN output expander

Ropam EXP-O8T-RN output expander

The Ropam EXP-O8T-RN output expander is an advanced device designed to expand the capabilities of alarm and building automation systems. This product allows you to significantly increase the number of controlled outputs, resulting in greater flexibility and efficiency in managing security and home automation systems.

Technical specifications:

• Model: EXP-O8T-RN
• Number of outputs: 8 relays
• Supply voltage: 12 V DC
• Load current: up to 5A per output
• Operating temperature: from -10°C to +55°C
• Housing: plastic, can be mounted on DIN rail
• Communication: RS-485
• Support for communication protocols: Modbus RTU
• Dimensions: 91 x 71 x 58 mm

Application:

The EXP-O8T-RN expander is used in alarm systems, access control, building automation and any application requiring expansion of the number of available outputs. It is an ideal solution for commercial, industrial and residential facilities where it is necessary to effectively manage multiple devices simultaneously.

Benefits:

• A greater number of controllable outputs allows the system to be more customized.
• Ability to control various devices with minimal load on the control panel.
• Simple installation and configuration thanks to communication via RS-485 and support for Modbus RTU.
• High reliability and durability of the device ensured by robust design and use of high-quality components.
• Increased security through precise control of alarm and monitoring systems.
• Versatility of applications thanks to compact dimensions and DIN rail mounting capability.
