Solar Edge 230/400V energy meter for monitoring energy production and consumption. High measurement accuracy, easy installation, RS485 compatible. Ideal for homes, businesses and power plants. Transformers to be purchased separately.
Subscription products in your shopping cart
Choose one subscription frequency for all products in your cart or place separate orders for different renewal periods.
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
In your shopping cart there are products with different subscription order renewal period. If you want to order products with different subscription period place a separate order.

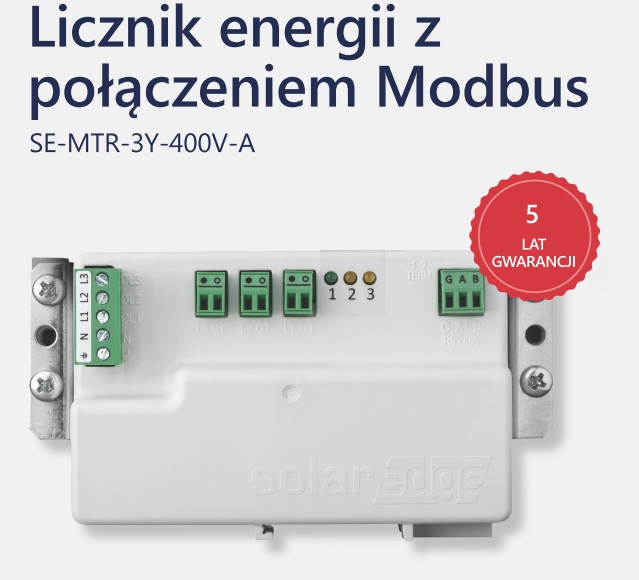

SOLAR EDGE - 1PH/3PH 230/400V Energy Meter High accuracy of meter readings when monitoring production/consumption Import/export of meter readings when exporting functionality limitations Small size and simple installation - fits into standard electrical panels Can be used in installations on residential buildings, commercial installations and large power plants Compatible with RS485 120Ω phase termination Important - transformers are not included. They must be purchased separately.ELECTRICAL SERVICE Operating voltage range - phase to neutral / phase to phase Nominal: 230/400 184-264.5 / 320-460 Vac AC frequency 45 / 65 Hz Network supported - single phase ; three phase(3) L / N / PE ; L1 / L 2 / L3 / N / PE Power consumption (Typ.) 3 W Current transformer inputs 333 mV COMMUNICATION Supported communication systems RS485 half-duplex, 3 wires (A, B, GND) Response time(4) ≤200 ms Default device (Modbus) 2 RS485 phase termination 120 Ω ACCURACY (@25°C, PF: 1)(5) 1% - 100% of rated current CT ±1.0% Accuracy IEC IEC 62053-21 Class 1, IEC 62053-23 Class 2 COMPLIANCE WITH STANDARDS Safety IEC 61010-1, UL 61010-1, CAN/CSA-C22.2 No. 61010-1-04 Immunity EN 61326: 2000, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-5, EN 61000-4-6, Emissions EN 55022 Class B INSTALLATION SPECIFICATIONS Dimensions (H x W x D) 75 x 138.6 x 35 mm Weight 225 gm Housing type -40 to +85 °C Operating temperature range 5% to 90% up to 40 ° C, reducing linearity to 50% RH at 55 ° C Relative humidity (non-condensing) IP20 - Suitable for indoor use Mounting type DIN rail / Wall mounting
