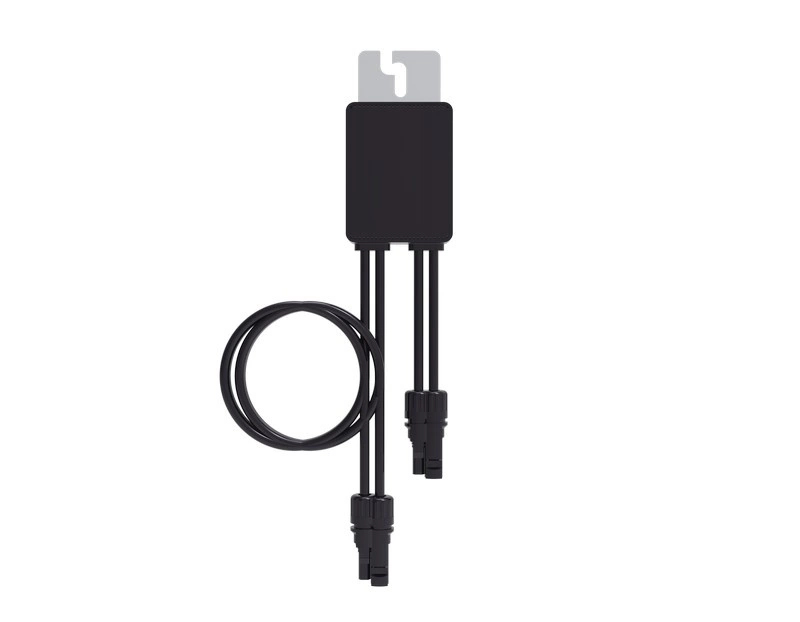

Huawei SUN2000-600W-P intelligent PV optimizer
Huawei SUN2000-600W-P is an intelligent power optimizer for photovoltaic modules, dedicated to work with Huawei SUN2000 series inverters. The device improves the safety and efficiency of PV systems by individually controlling module operation and quickly limiting the DC circuit voltage.
- Rated input power of 600 W
- Maximum input and output voltage of 80 V
- Maximum efficiency of 99.5%
- Degree of protection IP68
- Operating temperature range from -40°C to 85°C
Description and application
Huawei SUN2000-600W-P is an intelligent PV optimizer designed for operation with a single photovoltaic module of up to 600 W (under STC conditions, the rated module power must not exceed 1.05 times the rated input power of the optimizer). The device allows individual module maximum power point tracking (MPPT) over a wide voltage range to reduce losses due to shading or module mismatch.
The optimizer works with Huawei SUN2000 single-phase and three-phase inverters in a wide power range, including the SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 series, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20KTL-M2 and SUN2000-30/36/40KTL-M3, among others. The solution allows you to design longer module chains with full optimization and increase the flexibility of configuration selection.
Security and communication
The Huawei SUN2000-600W-P enhances the safety of PV installations with a function that quickly reduces the optimizer's output voltage to 0 V in the event of an open DC circuit or inverter shutdown. If the optimizer itself is damaged, it is bypassed and the PV module can continue to operate in the chain.
The device communicates with the inverter via MBUS, which makes it possible, among other things, to automatically map optimizers in the system and locate possible faults at the individual module level. The optimizer complies with the IEC 62109-1 safety standard (safety class II) and complies with the RoHS directive.
Technical data
| Parameter | Value for SUN2000-600W-P | Unit / Notes |
|---|---|---|
| Rated DC input power | 600 | W |
| Maximum input voltage | 80 | V |
| MPPT operating voltage range | 10 - 80 | V |
| Maximum short circuit current (Isc) | 14,5 | A |
| Maximum output voltage | 80 | V |
| Maximum output current | 15 | A |
| Output bypassing | Yes | In case of failure of the optimizer, the module continues operation |
| Output voltage when inverter is turned off | 0 | V, with DC circuit open or inverter off |
| Output resistance with inverter off | 1 000 ± 10% | Ω |
| Maximum efficiency | 99,5 | % |
| Weighted efficiency | 99,0 | % |
| Surge protection category | II | - |
| Communication method | MBUS | - |
| Safety standard | IEC 62109-1 | Safety class II |
| RoHS compliant | Yes | - |
| Dimensions (W x H x D) | 75 x 140 x 28 | mm (3.0 x 5.5 x 1.1 inches) |
| Weight (with wiring) | 0,6 | kg (1.3 lb) |
| Mounting parts (optional) | Frame mounting bracket / T-bolt | - |
| Input connector | MC4 | - |
| Input cable length | 0,15 | m |
| Output connector | MC4 | - |
| Output cable length | 1,3 | m (4.3 ft.) |
| Operating temperature | -40 - 85 | °C |
| Operating humidity range | 0 - 100 | % RH |
| Degree of protection | IP68 | - |
| Compatible products - inverters | SUN2000-2/3/3.68/4/4.6/5/6KTL-L1; SUN2000-3/4/5/6/8/10KTL-M1; SUN2000-12/15/17/20KTL-M2; SUN2000-30/36/40KTL-M3 | - |
| Longer chains (full optimization) - minimum number of optimizers per chain | 4 / 6 / 6 / 6 | for, respectively, SUN2000-2-6KTL-L1, SUN2000-3-10KTL-M1, SUN2000-12-20KTL-M2, SUN2000-30-40KTL-M3 |
| Longer chains (full optimization) - maximum number of optimizers per chain | 25 / 35 / 35 / 25 | for SUN2000-2-6KTL-L1, SUN2000-3-10KTL-M1, SUN2000-12-20KTL-M2, SUN2000-30-40KTL-M3, respectively |
| Maximum DC power per chain | 6 000 / 10 000 / 12 000 / 12 000 | W, for SUN2000-2-6KTL-L1, SUN2000-3-10KTL-M1, SUN2000-12-20KTL-M2, SUN2000-30-40KTL-M3, respectively |
| Notes on module power | module power ≤ 1.05 × 600 | W, under STC conditions |
Technical data source:data sheet of Huawei model SUN2000-600W-P Link
FAQ - Frequently asked questions
1. What is the rated input power of the Huawei SUN2000-600W-P optimizer?
The rated DC input power of the Huawei SUN2000-600W-P optimizer is 600 watts.
2. What is the maximum input and output voltage of the optimizer?
The maximum input voltage and maximum output voltage of the SUN2000-600W-P optimizer is 80 V.
3. In what voltage range does the MPPT algorithm of the SUN2000-600W-P operate?
The MPPT operating voltage range for the SUN2000-600W-P optimizer is from 10 V to 80 V.
4. What is the maximum short circuit current supported by this optimizer?
The maximum short circuit current (Isc) for the Huawei SUN2000-600W-P is 14.5 A.
5. What efficiency does the Huawei SUN2000-600W-P optimizer achieve?
The maximum efficiency of the optimizer is 99.5%, while the weighted efficiency is 99.0%.
6. What safety features and standards does this product meet?
The SUN2000-600W-P optimizer complies with IEC 62109-1 (safety class II) and is RoHS compliant.
7. What happens to the voltage at the output of the optimizer when the inverter is turned off?
When the inverter is turned off or when the DC circuit is open, the optimizer reduces the output voltage to 0 V, and the output resistance is about 1 kΩ ± 10%.
8. If the optimizer is damaged, does the PV module stop working?
If the SUN2000-600W-P optimizer is damaged, the output is bypassed, so the PV module can continue to work in the chain.
9. What is the protection degree of the optimizer housing?
The Huawei SUN2000-600W-P has a protection degree of IP68, which provides high resistance to dust and water.
10. In what temperature range can the SUN2000-600W-P optimizer operate?
The operating temperature range of the optimizer is from -40°C to 85°C.
11. What are the dimensions and weight of the device?
The dimensions of the optimizer are about 75 x 140 x 28 mm, and its weight with wiring is about 0.6 kg.
12. With which inverters is the Huawei SUN2000-600W-P compatible?
The optimizer is compatible with Huawei SUN2000-2/3/3.68/4/4.6/5/6KTL-L1, SUN2000-3/4/5/6/8/10KTL-M1, SUN2000-12/15/17/20KTL-M2 and SUN2000-30/36/40KTL-M3 inverters.
13. What connectors were used on the input and output sides?
MC4-type connectors were used on the input and output sides of the SUN2000-600W-P optimizer.
14. What are the cable lengths of the optimizer?
The length of the input cable is about 0.15 m, while the length of the output cable is about 1.3 m.
15. What is the operating humidity range of the device?
The optimizer can operate in the relative humidity range from 0% to 100% RH.
16. Are additional accessories available for mounting?
An optional mounting bracket for the photovoltaic module frame or a T-bolt is available for mounting on an aluminum profile.
17. How many optimizers can be used in one chain with selected Huawei inverters?
Depending on the inverter model, the minimum number of optimizers per chain is 4 to 6, and the maximum is 25 to 35, with the maximum DC power per chain reaching 6,000-12,000 watts.
18. How to select the power of a photovoltaic module for a SUN2000-600W-P optimizer?
Under STC conditions, the rated module power should not exceed 1.05 times the rated input power of the optimizer, or about 630 W.
Huawei SUN2000-600W-P is an advanced PV optimizer that provides high efficiency, safety, and flexibility in designing module chains with Huawei SUN2000 inverters. With wide compatibility with single-phase and three-phase inverters and high IP68 protection, the device is suitable for modern PV installations.
