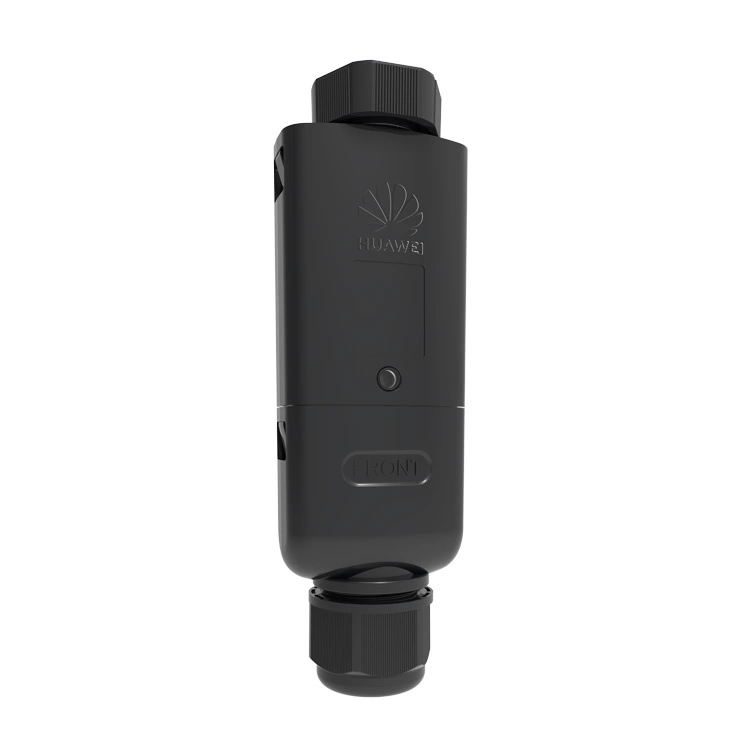

Huawei Smart Dongle SDongleA-05 (AP+STA) - WLAN-FE Communication Module
Huawei Smart Dongle SDongleA-05 (AP+STA) is a smart WLAN & Fast Ethernet (FE) communication module that enables stable data transmission between Huawei SUN2000 inverters and FusionSolar monitoring system or external pLatforms for energy management. The device supports up to 10 inverters, offering simple PLug & PLay installation and full IP65 protection, making it ideal for commercial and residential applications.
- Support for up to 10 Huawei SUN2000 inverters
- Communication via WLAN (AP + STA) and Ethernet 10/100M
- Easy installation PLug & PLay
- IP65-rated for dust and water resistance
- Secure WPA/WPA2 connection with AES encryption
Product Description
Huawei SDongleA-05 (AP+STA) combines the functionality of a wireless and wired module, enabling flexible communication in photovoltaic systems. The device supports WLAN 802.11b/g/n standards in the 2.4 GHz band and 10/100M Ethernet communication, ensuring fast and reliable data transfer. The AP+STA mode of operation enables simultaneous connection to inverters and the local network, allowing seamless integration with FusionSolar systems or external pLatforms compatible with Huawei protocols.
Security and reliability
The SDongleA-05 Smart Dongle provides a high level of data security with support for WPA/WPA2 protocols and TKIP/CCMP/AES encryption. The IP65 rating guarantees resistance to dust, moisture and UV radiation, and the operating temperature range of -30°C to +65°C allows installation in both indoor and outdoor environments. The device is fully compatible with a wide range of Huawei inverters, including the M1, M2, M3, MB0 and M5 series:contentReference[oaicite:0]{index=0}.
Technical data
| General data | |
|---|---|
| Maximum number of devices | 10 |
| Maximum number of inverters | 10 |
| Connection interface | USB |
| Ethernet interface | 10/100 Mbps |
| Installation | PLug & PLay |
| LED indicators | 1 (operation and connection status) |
| Dimensions (W × H × D) | 146 × 48 × 33 mm |
| Weight | 90 g |
| Degree of protection | IP65 |
| Typical power consumption | 2,5 W |
| Wireless parameters | |
| Operation mode | AP + STA |
| Wi-Fi standards | 802.11b/g/n (2.412-2.484 GHz) |
| Security protocols | WPA/WPA2 |
| Encryption methods | TKIP/CCMP/AES |
| Operating environment | |
| Operating temperature range | -30°C ~ +65°C |
| Relative humidity | 5% ~ 95% (non-condensing) |
| Storage temperature | -40°C ~ +70°C |
| Maximum operating altitude | 4000 m |
| Certifications | |
| Standards and certifications | SRRC, CE, RCM |
| Compatibility with Huawei inverters | |
| Supported models |
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 SUN2000-8/10K-LC0 SUN2000-3/4/5/6/8/10KTL-M1 SUN2000-12/15/17/20KTL-M2 SUN2000-12/15/17/20/25K-MB0 SUN2000-12/15/17/20/25KTL-M5 SUN2000-30/36/40/50KTL-M3 SUN2000-100/115KTL-M2 |
Technical data source:data sheet for Huawei SDongleA-05 (AP+STA) model. link
FAQ
- How many inverters does the SDongleA-05 support? Up to 10 Huawei SUN2000 devices.
- Does the device support Ethernet? Yes, 10/100M Fast Ethernet interface.
- What are the modes of operation? AP + STA (simultaneous local and network connection).
- What is the waterproof class? IP65 - full dust and splash resistance.
- What Wi-Fi standards are supported? 802.11b/g/n in the 2.4 GHz band.
- What are the dimensions and weight of the device? 146 × 48 × 33 mm, 90 g.
- What is the power consumption? Approximately 2.5 watts.
- What security features are available? WPA/WPA2 with TKIP/CCMP/AES encryption.
- What are the operating conditions? From -30°C to +65°C, humidity up to 95%.
- What certifications does it have? SRRC, CE, RCM.
Summary
Huawei Smart Dongle SDongleA-05 (AP+STA) is a universal WLAN and Ethernet communication module, offering reliable data transmission, WPA2 security and simple installation PLug & PLay. With support for a wide range of inverters and IP65 rating, it is ideal for modern PV systems requiring reliable local and remote communications.
