Energy storage battery Huawei LUNA2000-63-S1 modular system 62.1 kWh 31.5 kW
- Huawei LUNA2000-63-S1 energy storage for use with Huawei SUN2000 inverters, usable capacity of 62.1 kWh, LiFePO₄ cell technology.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

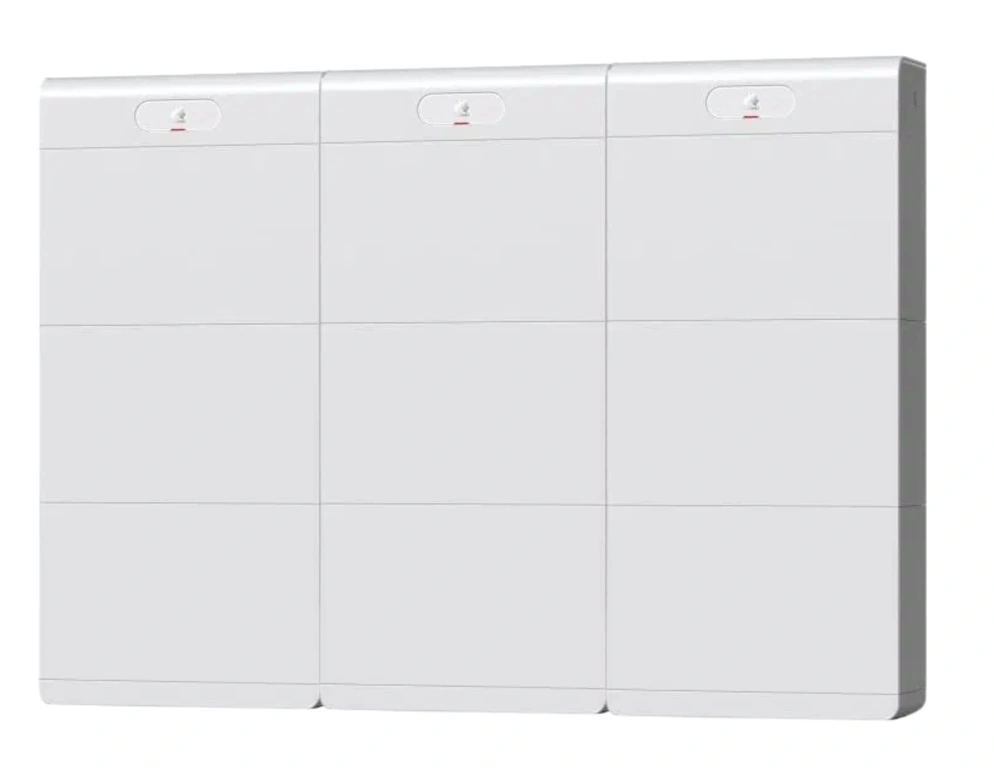

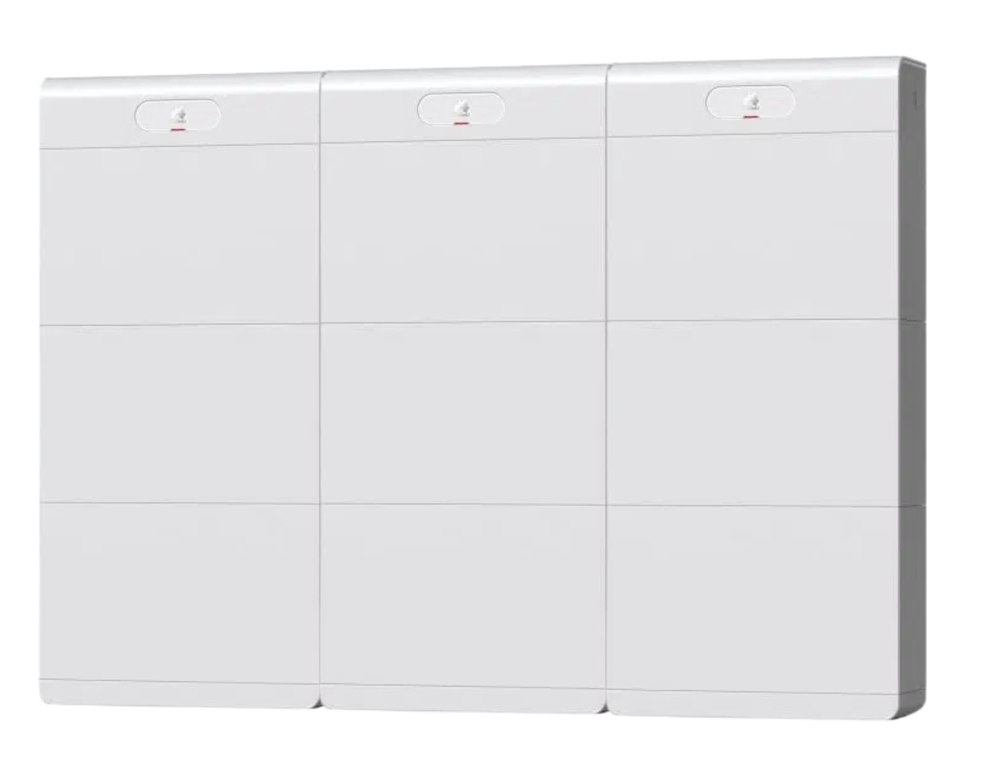

Huawei LUNA2000-63-S1 - 9× 6.9 kWh battery module kit (3 stacks) + 3× base + system cabling
The Huawei LUNA2000-63-S1 is an advanced energy storage kit with an impressive 62.1 kWh usable capacity, consisting of nine LUNA2000-7-E1 battery modules organized into three stacks of three modules each. The system includes three mounting bases and a compLete system cabling for simple installation, maximum flexibility and high operating efficiency. It is ideal for large residential, industrial and commercial installations.
- Total usable capacity of 62.1 kWh (9× 6.9 kWh)
- Three stacks of three battery modules each
- Charging/discharging power of up to 31.5 kW
- Comes with 3 mounting bases and compLete wiring
- LiFePO₄ cell technology - safety, durability and stability
Product description
Huawei LUNA2000-63-S1 is a modular, scalable premium energy storage dedicated to work with Huawei SUN2000 inverters. The system is based on three independent stacks, each consisting of three LUNA2000-7-E1 battery modules with a total capacity of 20.7 kWh and its own LUNA2000-10KW-C1 power module. The total capacity of the stack is 62.1 kWh, and its maximum charging and discharging power is as much as 31.5 kW.

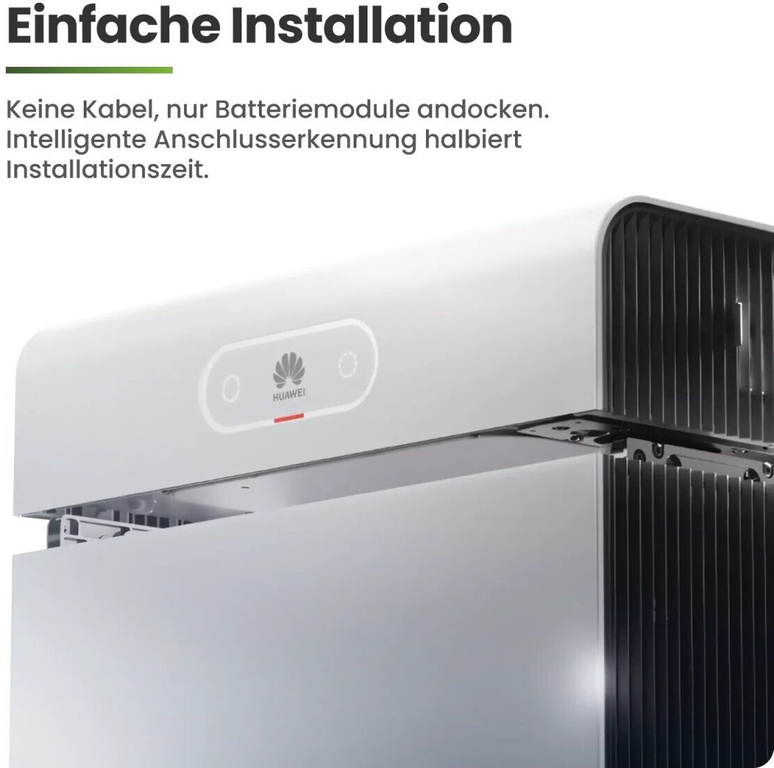

Thanks to the modular architecture, each stack operates independently, and built-in energy optimizers guarantee maximum capacity utilization and effective cooperation with the PV system. Natural cooling, no wires between modules and quiet operation (less than 29 dB) make the system extremely reliable and user-friendly.
Safety and technology
LUNA2000-63-S1 uses lithium-iron-phosphate (LiFePO₄) cells, which are characterized by exceptional chemical stability, safety and long life. Each stack is covered by a five-layer protection system: at the cell, electrical, structural, active and emergency levels. The system is CE, IEC62619, UN38.3, VDE2510-50 and RoHS certified, confirming compliance with international safety standards.
Technical data
| Parameter | Value |
|---|---|
| Model | Huawei LUNA2000-63-S1 |
| Usable capacity | 62.1 kWh |

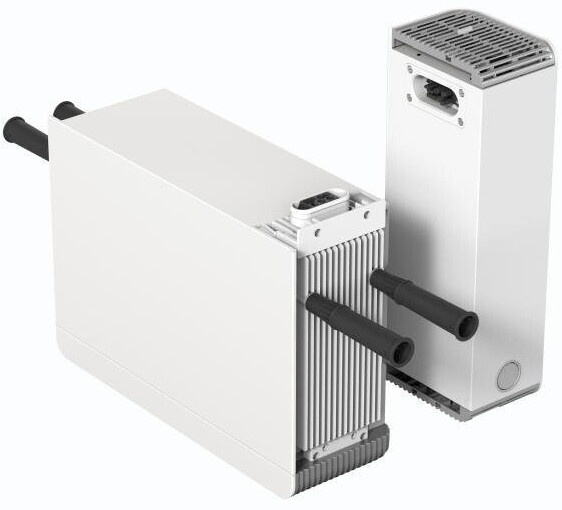

| Number of battery modules | 9 × LUNA2000-7-E1 |
| Configuration | 3 stacks of 3 modules each |
| Charging/discharging power | 31.5 kW |
| Operating voltage range (1-phase) | 350 - 560 V |
| Operating voltage range (3-phase) | 600 - 980 V |
| Cell technology | Lithium-iron-phosphate (LiFePO₄) |
| Operating temperature range | -20°C - +55°C |
| Protection degree | IP66 |
| Noise level | < 29 dB |
| Cooling | Natural convection |
| Relative humidity | 5 - 95% |
| Maximum installation altitude | 4000 m (derating above 2000 m) |
| Installation | Freestanding (standard), wall mounting (optional) |
| Communication | RS485 / FE / CAN |
| Compatibility with inverters | Huawei SUN2000-12/15/17/20/25K-MB0, SUN2000-3-10KTL-M1, SUN2000-2-6KTL-L1 |
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, RoHS |
| Kit contents | 9× LUNA2000-7-E1 battery module, 3× base, compLetne system wiring |
Technical data source: data sheet of LUNA2000-7/14/21-S1 Link
FAQ
- What is the capacity of the LUNA2000-63-S1 set? 62.1 kWh of usable capacity.
- How many modules does the kit contain? Nine LUNA2000-7-E1 battery modules.
- What does the configuration look like? Three stacks of three battery modules each.
- How much is the maximum power? 31.5 kW of charging and discharging power.
- Does the kit include bases and wiring? Yes, the kit includes three bases and compLetne system wiring.
- What kind of cells are used? Lithium-iron-phosphate (LiFePO₄).
- Can the system be mounted outdoors? Yes, thanks to its IP66 rating.
- Is the system quiet? Yes, it operates below 29 dB.
- Does the kit require active cooling? No, it uses natural convection.
- What are the operating conditions? Temperature from -20°C to +55°C, humidity up to 95%.
- Which inverters are compatible? Huawei SUN2000 MB0, M1 and L1 series.
- Does the system have safety certifications? Yes, including CE, IEC62619, UN38.3, VDE2510-50.
- Is the kit expandable? Yes, up to a maximum of 4 groups (82.8 kWh).
Summary
Huawei LUNA2000-63-S1 is a powerful and reliable energy storage with a capacity of 62.1 kWh for large PV installations. It provides full compatibility with Huawei inverters, high safety, quiet operation, and easy installation with included bases and compLetable system cabling.
