Energy storage Huawei LUNA2000-42-S1 battery pack 2 stacks LiFePO4 41.4 kWh
- Huawei LUNA2000-42-S1 energy storage system for PV installations, usable capacity of 41.4 kWh, maximum charging and discharging power of 21 kW.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

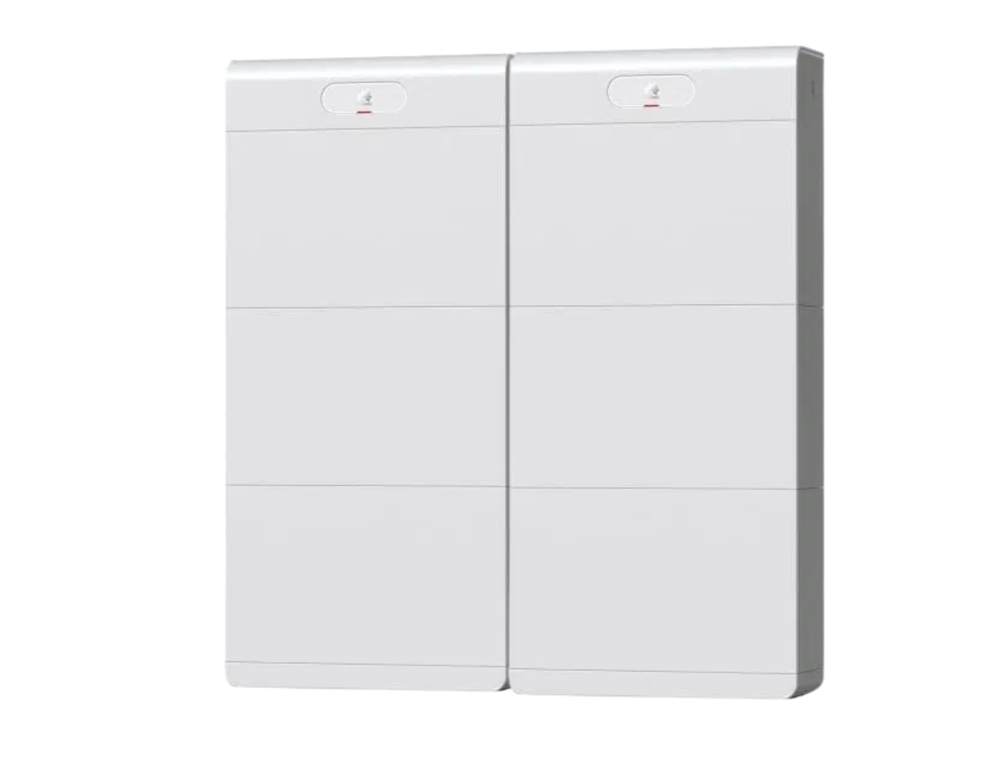

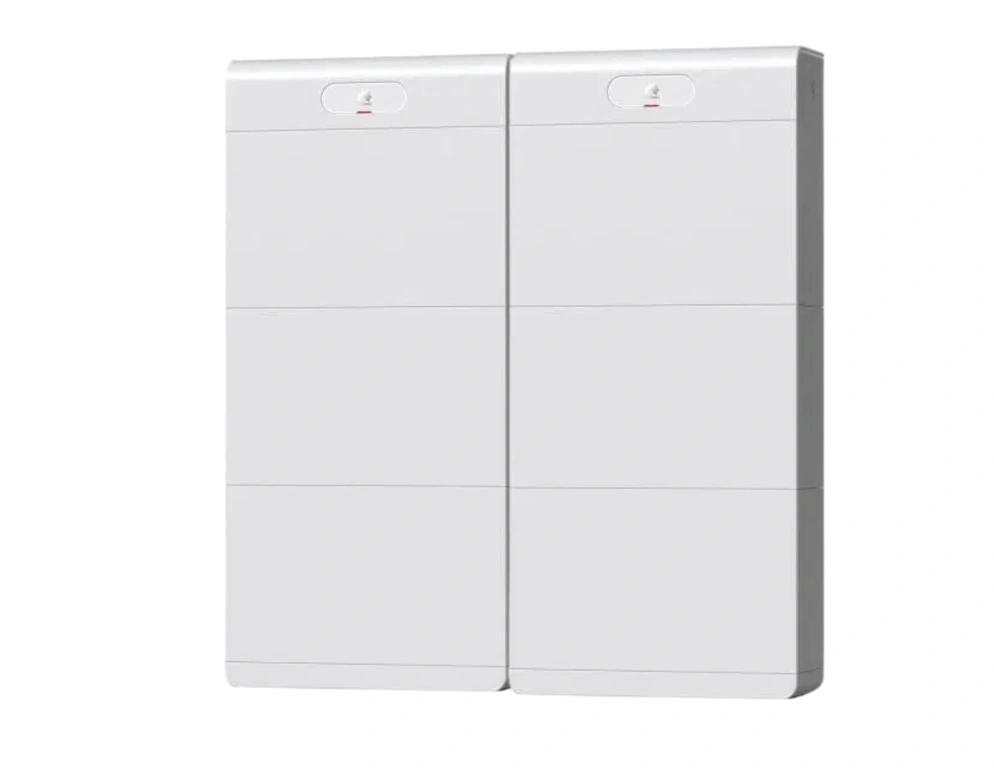

Huawei LUNA2000-42-S1 - 6× 6.9 kWh battery module kit (2 stacks) + 2× base + system cabling
The Huawei LUNA2000-42-S1 is a compLetny energy storage kit with a usable capacity of 41.4 kWh, consisting of six LUNA2000-7-E1 battery modules combined into two stacks of three modules each. Each stack has its own power module and mounting base, which ensures full independent operation, high efficiency and maximum safety. It comes with compLetne system cabling for immediate integration with Huawei's SUN2000 series inverters.
- Total usable capacity of 41.4 kWh (6× 6.9 kWh)
- Two stacks of three battery modules each
- CompLetny kit with 2 bases and system wiring
- Maximum charging/discharging power of 21 kW
- LiFePO₄ technology - highest level of safety and durability
Product description

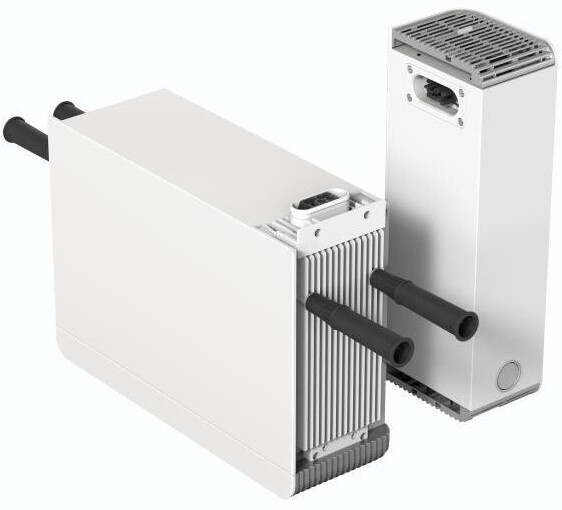

The Huawei LUNA2000-42-S1 system is a premium solution for large-scale photovoltaic installations that require significant energy storage capacity. The kit consists of two three-module towers (stacks), each of which offers a capacity of 20.7 kWh and works with its own LUNA2000-10KW-C1 power module. The entire system achieves an impressive total capacity of 41.4 kWh and a power output of 21 kW, ideal for residential, commercial and industrial applications.

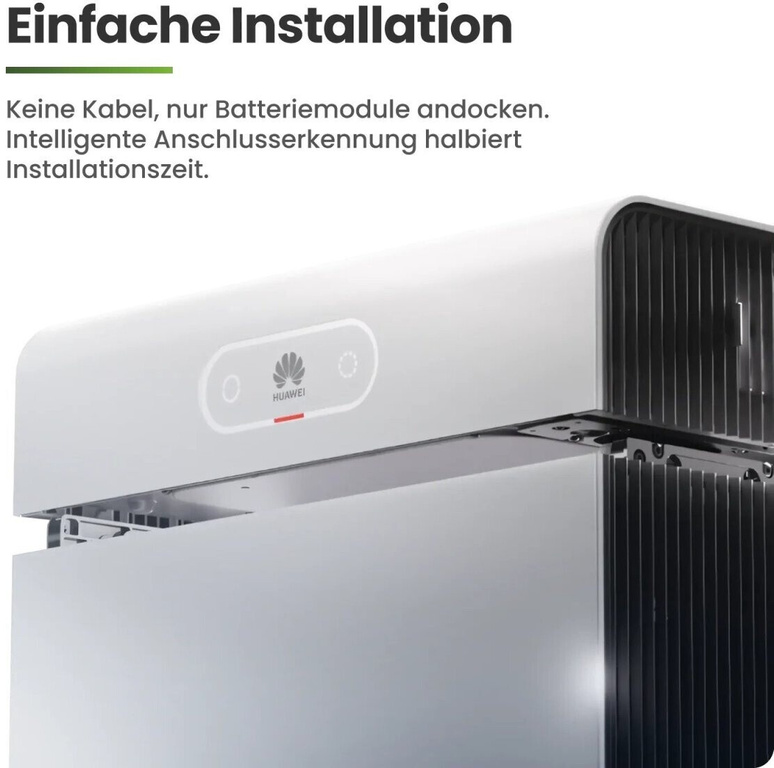

The modular architecture with built-in energy optimizers ensures high energy efficiency, and the parallel connection makes it possible to operate the system in a flexible configuration. Quiet operation (less than 29 dB), no cables between modules and natural cooling make the LUNA2000-42-S1 a modern and practical solution for the most demanding users.
Safety and durability
The LUNA2000-42-S1 stack uses lithium-iron-phosphate (LiFePO₄) cell technology, which is known for its high chemical stability and resistance to overheating. Each stack has a five-layer protection system including cell levels, electrical, structural, active and emergency. The system complies with the requirements of international safety standards (IEC62619, UN38.3, CE, VDE2510-50, RoHS), which guarantees full reliability ekspLoatation under harsh conditions.
Technical data
| Parameter | Value |
|---|---|
| Model | Huawei LUNA2000-42-S1 |
| Usable capacity | 41.4 kWh |
| Number of battery modules | 6 × LUNA2000-7-E1 |
| Configuration | 2 stacks of 3 modules each (2 × 20.7 kWh) |
| Charging/discharging power | 21 kW |
| Operating voltage range (1-phase) | 350 - 560 V |
| Operating voltage range (3-phase) | 600 - 980 V |
| Cell technology | Lithium-iron-phosphate (LiFePO₄) |
| Operating temperature range | -20°C - +55°C |
| Protection degree | IP66 |
| Noise level | < 29 dB |
| Cooling | Natural convection |
| Relative humidity | 5 - 95% |
| Maximum installation altitude | 4000 m (derating above 2000 m) |
| Installation | Freestanding (standard), wall mounting (optional) |
| Communication | RS485 / FE / CAN |
| Compatibility with inverters | Huawei SUN2000-12/15/17/20/25K-MB0, SUN2000-3-10KTL-M1, SUN2000-2-6KTL-L1 |
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, RoHS |
| Kit contents | 6× LUNA2000-7-E1 battery module, 2× base, compLetne system wiring |
Technical data source: data sheet of LUNA2000-7/14/21-S1 Link
FAQ
- What is the capacity of the LUNA2000-42-S1 set? 41.4 kWh of usable capacity.
- How many modules does the kit contain? Six LUNA2000-7-7-E1 battery modules in two stacks.
- How much is the power of the system? 21 kW of maximum charging and discharging power.
- Does the kit include bases? Yes, the kit includes two mounting bases.
- Does the kit include wiring? Yes, the kit includes compLetne system wiring.
- What kind of cells are used? Lithium-iron-phosphate (LiFePO₄).
- Can the system be mounted outdoors? Yes, thanks to its IP66 waterproof rating.
- Is the system quiet? Yes, it operates below 29 dB.
- What are the operating conditions? Temperature from -20°C to +55°C, humidity up to 95%.
- What inverters are compatible? Huawei SUN2000 MB0, M1 and L1 series.
- Does the system have safety certifications? Yes, including CE, IEC62619, UN38.3, RoHS.
- Does the kit require active cooling? No, cooling occurs naturally.
- Can the system be expanded? 6 modules is the maximum recommended configuration for a 2-stack kit.
Summary
Huawei LUNA2000-42-S1 is an advanced, compLetny energy storage system with a 41.4 kWh capacity, designed for large PV installations. With its LiFePO₄ technology, modular design and full mounting hardware, it provides a modern, safe and reliable solution for homes and businesses.
