Energy storage LiFePO4 Huawei LUNA2000-28-S1 set 4x6.9kWh 14kW IP66
- Huawei LUNA2000-28-S1 energy storage for use with SUN2000 inverters; usable capacity of 27.6 kWh (4× 6.9 kWh), 2 stacks of 13.8 kWh, LiFePO₄ cell technology.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

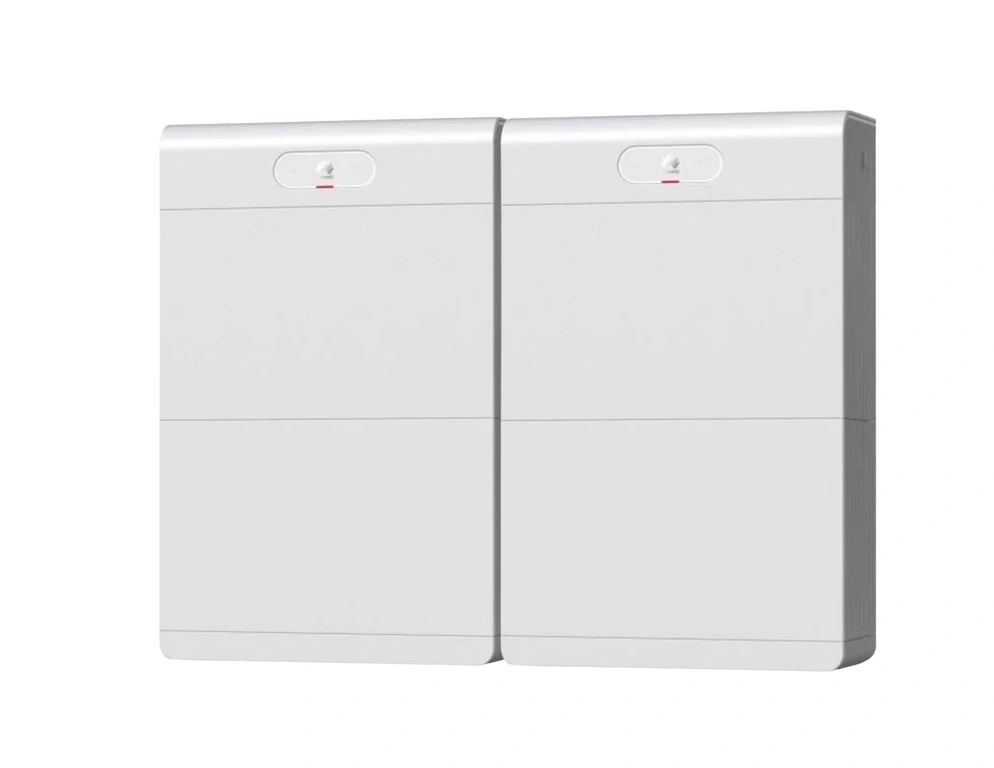

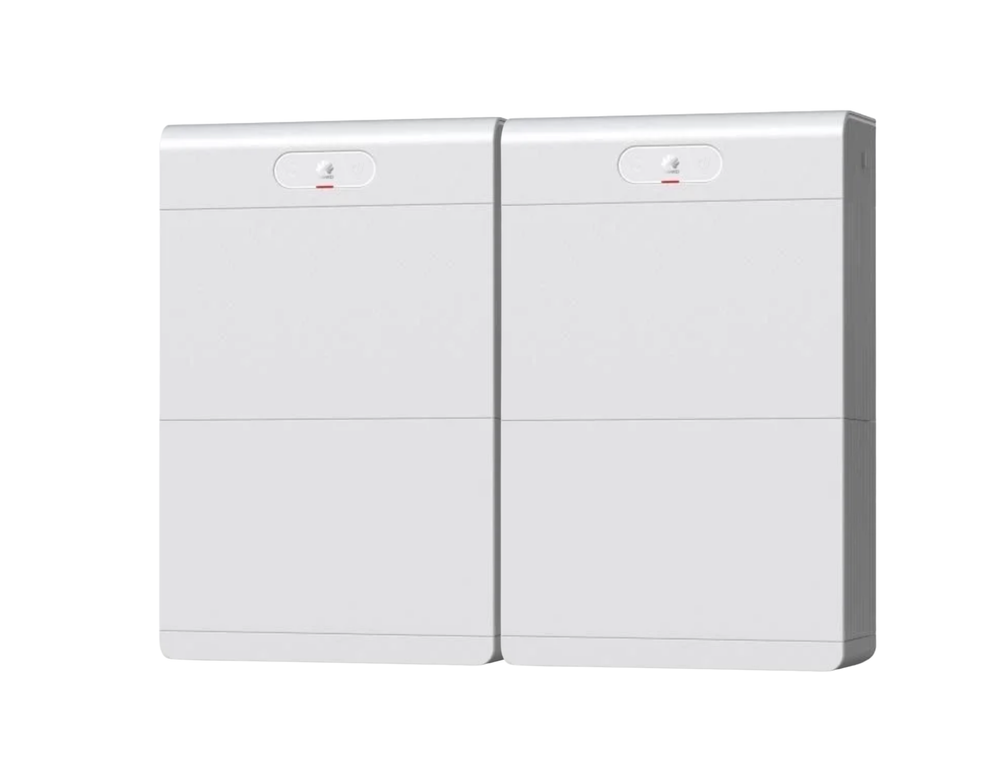

Huawei LUNA2000-28-S1 - 4× 6.9 kWh battery module kit (2 stacks) + 2× base + system cabling
Huawei LUNA2000-28-S1 is a compLetny energy storage kit with a usable capacity of 27.6 kWh, built with four LUNA2000-7-E1 battery modules connected in two stacks of two modules each. The system includes two mounting bases and full system wiring for seamless integration with Huawei's SUN2000 series inverters.
- Total usable capacity of 27.6 kWh (4× 6.9 kWh)
- 2 independent stacks of 13.8 kWh each
- CompLetny kit with bases and wiring
- LiFePO₄ cell technology - high durability and safety
- Degree of protection IP66 - resistance to weather conditions
Product description

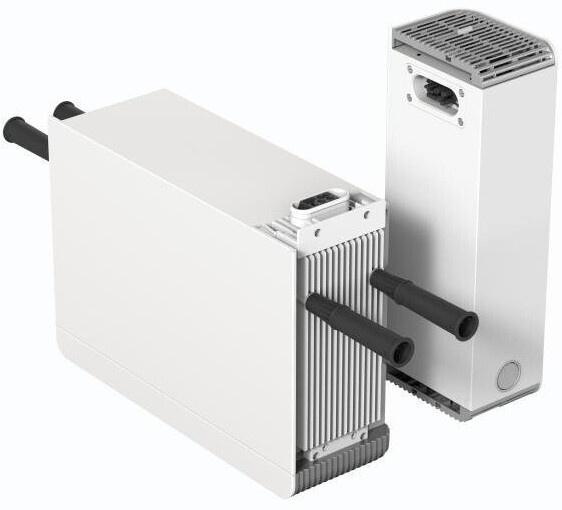

Huawei LUNA2000-28-S1 is a set of two LUNA2000-14-S1 systems connected in parallel to form a single system with a total capacity of 27.6 kWh. Each stack contains two 6.9 kWh battery modules, working together with a dedicated base and power module. This allows the kit to deliver up to 14 kW of charge and discharge power, making it ideal for homes and small businesses with high energy demands.

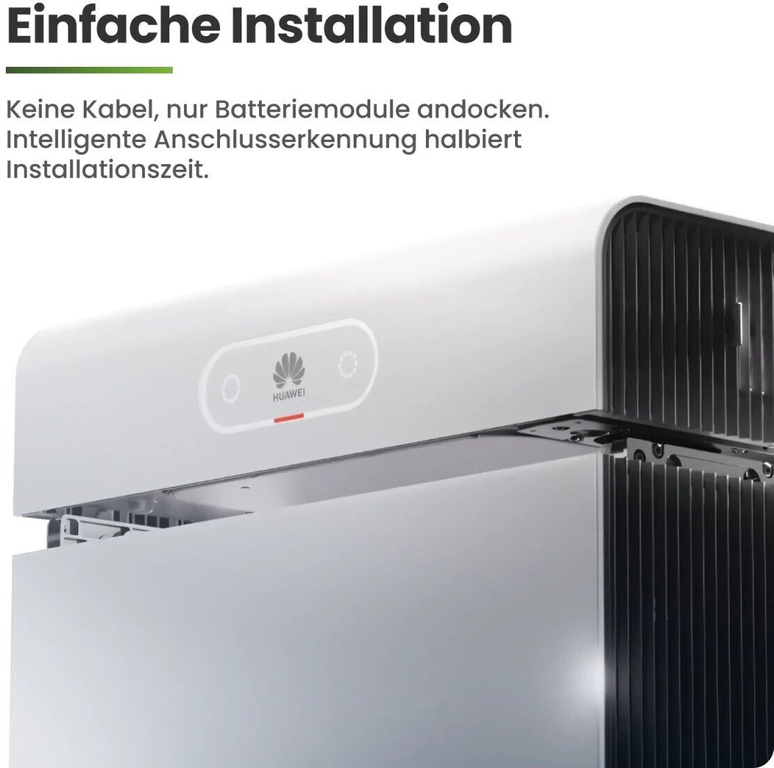

The kit comes as a compLete solution with factory wiring and mounting components, reducing installation time and minimizing the risk of errors. Modular architecture with built-in energy optimizers ensures independent operation of each section, maximizing efficiency and operational safety.
Safety and reliability
The LUNA2000-28-S1 system is based on lithium-iron-phosphate (LiFePO₄) cell technology, offering exceptional thermal stability and resistance to overheating. A five-layer protection system (cell level, electrical, structural, active and emergency) provides full operational protection. IP66 rating allows installation in any environment - indoors or outdoors.
Technical data
| Parameter | Value |
|---|---|
| Model | Huawei LUNA2000-28-S1 |
| Usable capacity | 27.6 kWh |
| Configuration | 2× stack of 2 battery modules each (4× 6.9 kWh) |
| Charging/discharging power | 14 kW |
| Operating voltage range (1-phase) | 350 - 560 V |
| Operating voltage range (3-phase) | 600 - 980 V |
| Cell technology | Lithium-iron-phosphate (LiFePO₄) |
| Operating temperature range | -20°C - +55°C |
| Protection degree | IP66 |
| Noise level | < 29 dB |
| Cooling | Natural convection |
| Installation | Freestanding (standard), wall mounting (optional) |
| Relative humidity | 5 - 95% |
| Maximum installation altitude | 4000 m (derating above 2000 m) |
| Communication | RS485 / FE / CAN |
| Compatibility with inverters | Huawei SUN2000-12/15/17/20/25K-MB0, SUN2000-3-10KTL-M1, SUN2000-2-6KTL-L1 |
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, RoHS |
| Kit contents | 4× LUNA2000-7-E1 battery module, 2× base, compLetne system wiring |
Technical data source: data sheet of LUNA2000-7/14/21-S1 Link
FAQ
- What is the capacity of the LUNA2000-28-S1 set? 27.6 kWh of usable capacity.
- How many modules does the kit contain? Four LUNA2000-7-E1 battery modules, arranged in two stacks.
- Does the kit include wiring? Yes, compLetne system wiring is included.
- How much is the power of the system? 14 kW (maximum charging and discharging power).
- What inverters are compatible? Huawei SUN2000 MB0, M1 and L1 series.
- Does the kit include mounting bases? Yes, the kit includes 2 bases.
- What kind of cells are used? Lithium-iron-phosphate (LiFePO₄) cells.
- Can the system be expanded? No, 4 modules is the maximum configuration supported by Huawei inverters.

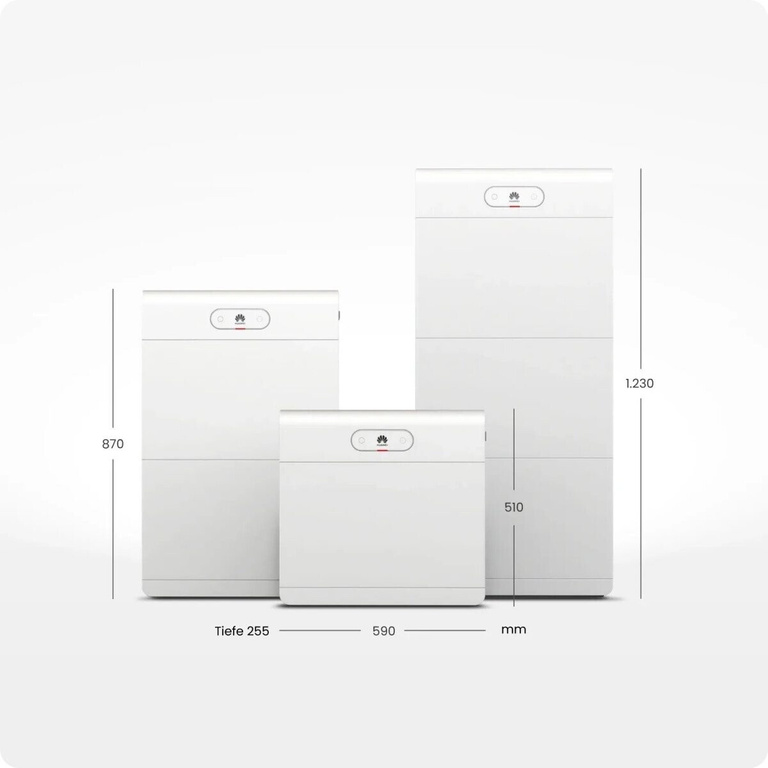

- What are the dimensions of one module? 590 × 255 × 360 mm (battery module).
- Can the system operate outdoors? Yes, thanks to its IP66 waterproof rating.
- Is the system quiet? Yes, the noise level is below 29 dB.
- Does the set require active cooling? No, natural convection is used.
- What are the operating conditions? Temperature from -20°C to +55°C, humidity 5-95%.
- Does it have safety certifications? Yes, including CE, IEC62619, UN38.3, VDE2510-50.
Summary
Huawei LUNA2000-28-S1 is a compLetny and ready-to-install energy storage kit with 27.6 kWh capacity, ideal for large-scale PV installations. It offers unmatched performance, the safety of LiFePO₄ technology and full compatibility with Huawei SUN2000 inverters.
