Energy storage system Huawei LUNA2000-10KW-C1 controller PCU module 10 kW IP66 600 V DC
- Huawei LUNA2000-10KW-C1 control module for charge and discharge management of LUNA2000 energy storage, maximum charge/discharge power of 10 kW.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

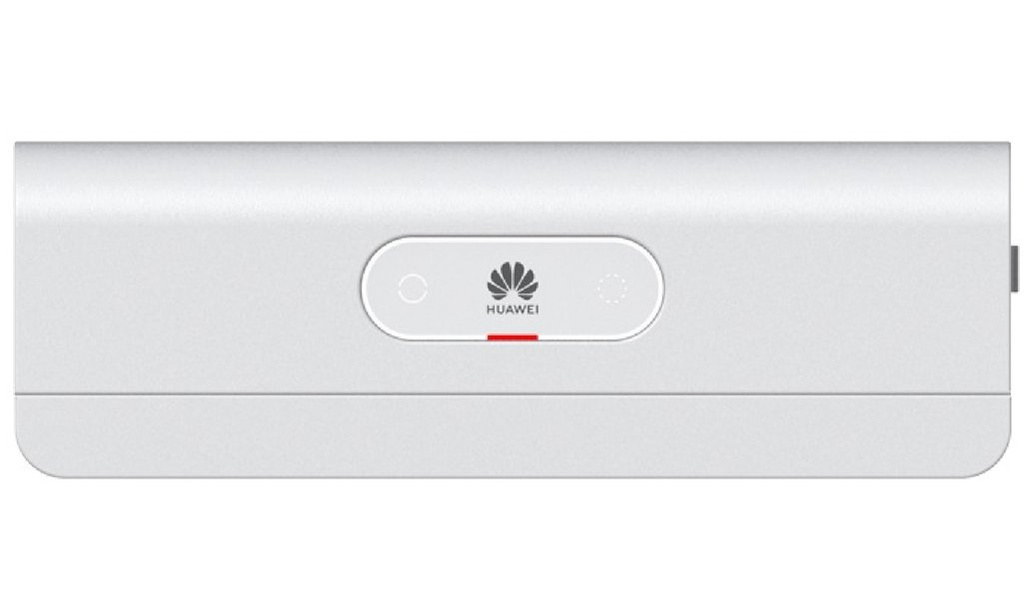

Huawei LUNA2000-10KW-C1 - Control module for energy storage system
Huawei LUNA2000-10KW-C1 is an intelligent Power Control Unit (PCU) dedicated to LUNA2000 series energy storage systems. The unit manages the energy flow between the inverter and the LUNA2000-5/10/15-S0 and LUNA2000-7/14/21-E1 battery modules, ensuring optimal charging, discharging and safe system operation. The PCU module is an indispensable part of the LUNA2000 configuration and allows system expansion up to 30 kWh in a single set and up to 82.8 kWh in parallel systems.
- Maximum charging/discharging power: 10 kW
- Compatible with LUNA2000-5/10/15-S0 and LUNA2000-7/14/21-E1 batteries
- Bidirectional DC/DC converter with high efficiency
- Built-in overcurrent, overvoltage and temperature protection
- Supports single-phase and three-phase installations
Product description
The LUNA2000-10KW-C1 control module is the heart of Huawei's energy storage system, responsible for managing the energy flow between the inverter and battery modules. It enables dynamic energy balancing and intelligent management of the state of charge of each module. The device integrates fully with the Huawei FusionSolar ecosystem, providing the user with a remote view of the energy storage operation and automatic software updates.
Security and reliability
The LUNA2000-10KW-C1 meets the highest energy safety standards, including IEC 62109-1 and IEC 62933, and the module is equipped with a surge protection system (SPD Type II), temperature control and short-circuit protection. Thanks to its IP66-rated design and convection cooling, it can operate both indoors and outdoors in a wide temperature range from -20°C to +55°C.
Technical data
| Electrical data | |
|---|---|
| Model | LUNA2000-10KW-C1 |
| Device type | Power Control Unit (PCU) |
| Maximum charging/discharging power | 10 kW |
| Operating voltage (nominal) | 600 V DC |
| Operating voltage range | 350 - 980 V DC |
| Maximum current (charging/discharging) | 25 A |
| Communication with inverter | RS485 / CAN / FE |
| System topology | Bidirectional DC/DC converter |
| Converter efficiency | ≥98,5% |
| Protection | |
| Overvoltage protection (SPD) | Type II (DC) |
| Overcurrent protection | Yes |
| Over-temperature protection | Yes |
| Reverse polarity protection | Yes |
| Communication protection | Galvanic isolation |
| Physical specifications | |
| Dimensions (W × D × H) | 670 × 150 × 330 mm |
| Weight | 12 kg |
| Cooling | Natural convection |
| Noise level | <29 dB |
| Degree of protection | IP66 |
| Environmental conditions | |
| Operating temperature range | -20°C ~ +55°C |
| Relative humidity | 5%-95% (non-condensing) |
| Maximum operating altitude | 4000 m (power reduction above 2000 m) |
| Operating environment | Indoor / outdoor |
| System compatibility | |
| Compatible battery modules |
LUNA2000-5/10/15-S0 LUNA2000-7/14/21-E1 |
| Compatible inverters |
SUN2000-3~10KTL-M1 SUN2000-12~25K-MB0 SUN2000-12~25KTL-M5 |
| Maximum number of battery modules | 3 (20.7 kWh) |
| Maximum number of parallel sets | 4 (82.8 kWh) |
Technical data source: data sheet of Huawei LUNA2000-10KW-C1 (data from Huawei FusionSolar system).
FAQ
- What is the LUNA2000-10KW-C1 module used for? It is a Huawei energy storage control unit, managing the charging and discharging of batteries.
- What kind of power does it support? 10 kW charging and 10 kW discharging.
- Can the module work with a three-phase system? Yes, it supports both 1-phase and 3-phase systems.
- Which battery modules are compatible? LUNA2000-5/10/15-S0 and LUNA2000-7/14/21-E1.
- What inverters are compatible with the module? SUN2000 M1, M5 and MB0 series.
- Does the module have its own protections? Yes, SPD type II, thermal and overcurrent protection.
- What is the cooling of the device? Natural convection, without fans.
- What is the degree of protection? IP66 - full resistance to dust and water.
- What are the dimensions? 670 × 150 × 330 mm, weight 12 kg.
- Can the modules be connected in parallel? Yes, up to 4 sets for a total capacity of 82.8 kWh.
Summary
Huawei LUNA2000-10KW-C1 is a key component of Huawei's smart energy storage system. It is responsible for energy flow management, protection and communication with the inverter and batteries. With its modular design, high efficiency and IP66 rating, it is ideal for modern residential and commercial installations.
