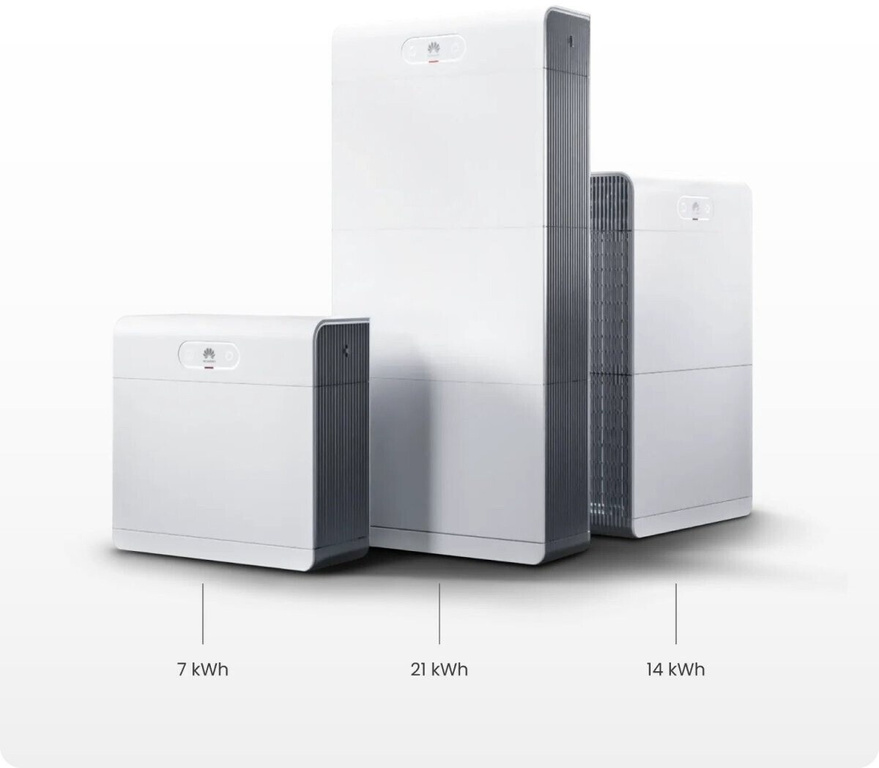

Huawei LUNA2000-14-S1 photovoltaic energy storage modular system LiFePO4 13.8 kWh 7 kW IP66
- Huawei LUNA2000-14-S1 modular energy storage to work with SUN2000 inverters, is used to store PV energy, usable capacity of 13.8 kWh.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

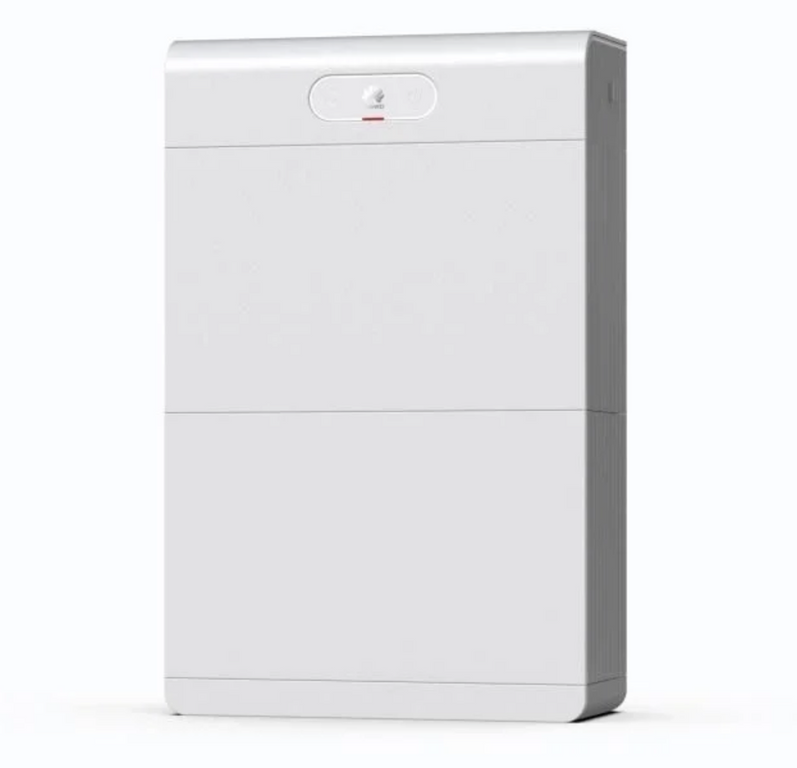

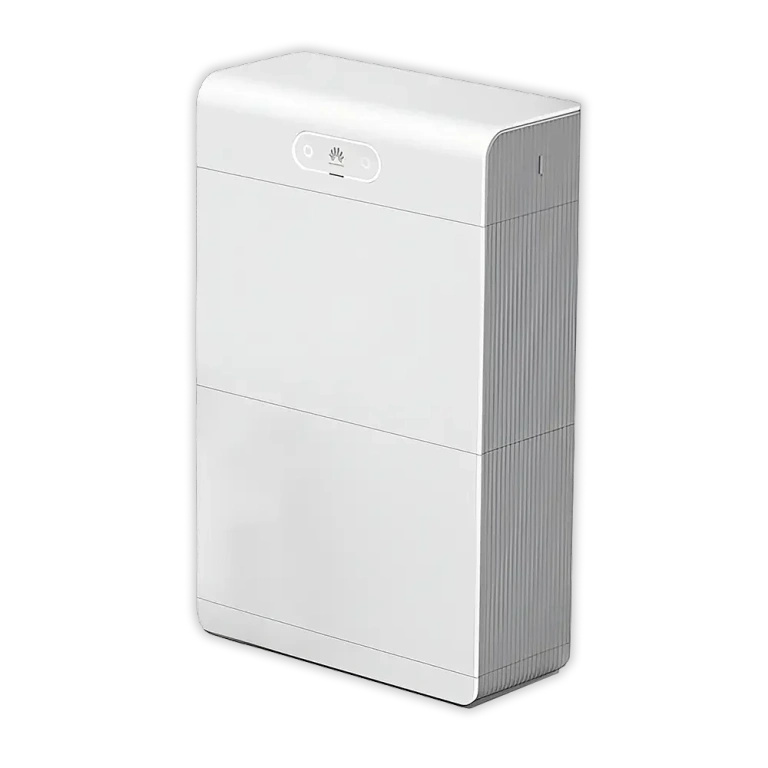

Huawei LUNA2000-14-S1 - Modular energy storage system
Huawei LUNA2000-14-S1 is a state-of-the-art, two-module energy storage system with a usable capacity of 13.8 kWh, designed to work with Huawei SUN2000 inverters. The system provides high performance, expansion flexibility and unparalleled safety thanks to LiFePO₄ technology and five-layer protection.
- Usable capacity of 13.8 kWh
- Maximum charging and discharging power of 7 kW
- Modular architecture with built-in energy optimizer
- IP66 degree of protection
- Operating temperature range from -20°C to +55°C
Product description

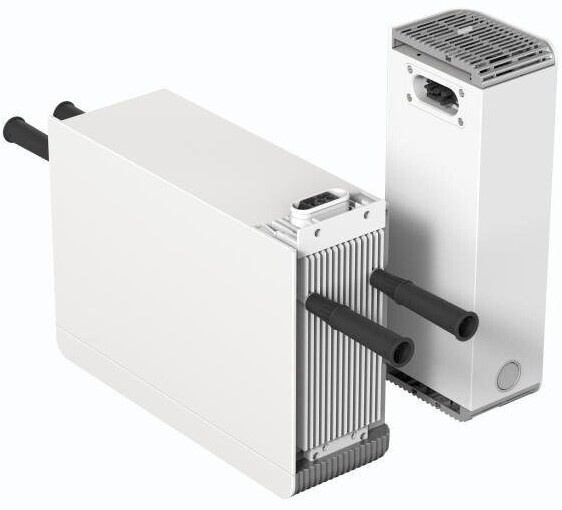

The LUNA2000-14-S1 system is part of the Huawei Smart String Energy Storage series, based on a flexible modular architecture. It consists of one power module and two battery modules with a total capacity of 13.8 kWh. It provides a maximum output of 7 kW for charging and discharging, enabling efficient energy management for medium-power photovoltaic installations.
The system is easy to install with wireless connections between modules, and the compact design allows both floor and wall mounting. Natural cooling ensures quiet operation with noise emissions of less than 29 dB.
Safety and technology
LUNA2000-14-S1 uses safe lithium-iron-phosphate (LiFePO₄) cells for long life and stable operation. The system features five-layer protection (at the cell, electrical and structural levels), ensuring safe use even in harsh conditions. In addition, the full depth of discharge (100% DOD) increases energy efficiency.
Technical data
| Parameter | Value |
|---|---|
| Model | LUNA2000-14-S1 |
| Capacity of the battery module | 6.9 kWh × 2 |
| Usable capacity | 13.8 kWh |
| Charging/discharging power | 7.0 kW |
| Operating voltage range (1-phase) | 350 - 560 V |
| Operating voltage range (3-phase) | 600 - 980 V |

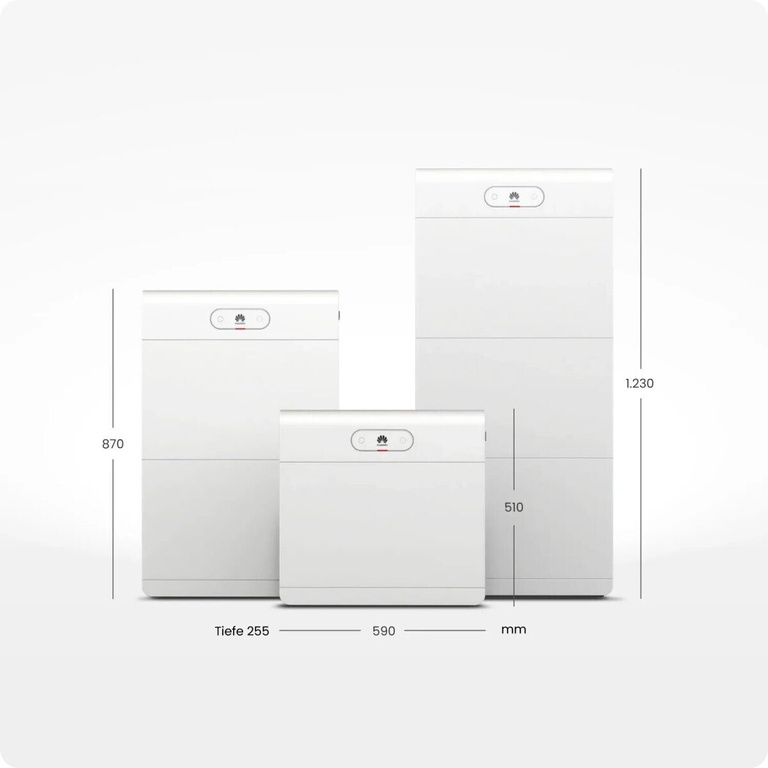

| Dimensions (S × G × W) | 590 mm × 255 mm × 870 mm |
| Weight | 148 kg (with mounting kit) |
| Operating temperature range | -20°C - +55°C |
| Maximum installation altitude | 4000 m (derating above 2000 m) |
| Relative humidity | 5 - 95 % |
| Cooling | Natural convection |
| Noise level | < 29 dB |
| Protection class | IP66 |
| Cell technology | LiFePO₄ |
| Installation | Freestanding (standard), wall mounting (optional) |
| Communication | RS485 / FE / CAN |
| Compatibility with inverters | SUN2000-12/15/17/20/25K-MB0, SUN2000-3–10KTL-M1, SUN2000-2–6KTL-L1 |
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, RoHS |
Technical data source: data sheet of LUNA2000-14-S1 Link
FAQ
- What is the capacity of the LUNA2000-14-S1 system? 13.8 kWh of usable capacity.
- How many modules does the system consist of? Of one power module and two battery modules.
- What is the maximum discharge power? 7 kW.
- What kind of cells were used? Lithium-iron-phosphate (LiFePO₄).
- Is the system expandable? Yes, up to a maximum of 82.8 kWh with a combination of 4 groups.
- What is the degree of protection? IP66 - suitable for outdoor installation.
- Is wall installation possible? Yes, using a dedicated bracket.
- What inverters are compatible? Huawei SUN2000 M1, L1 and MB0 series.
- Is the system noisy? No, it operates with a noise level of less than 29 dB.
- Can it be installed indoors? Yes, indoor and outdoor installation allowed.
- Does it have safety features? Yes, five-layer security system.
- What is the height of the device? 870 mm.
- What is the operating temperature? From -20°C to +55°C.

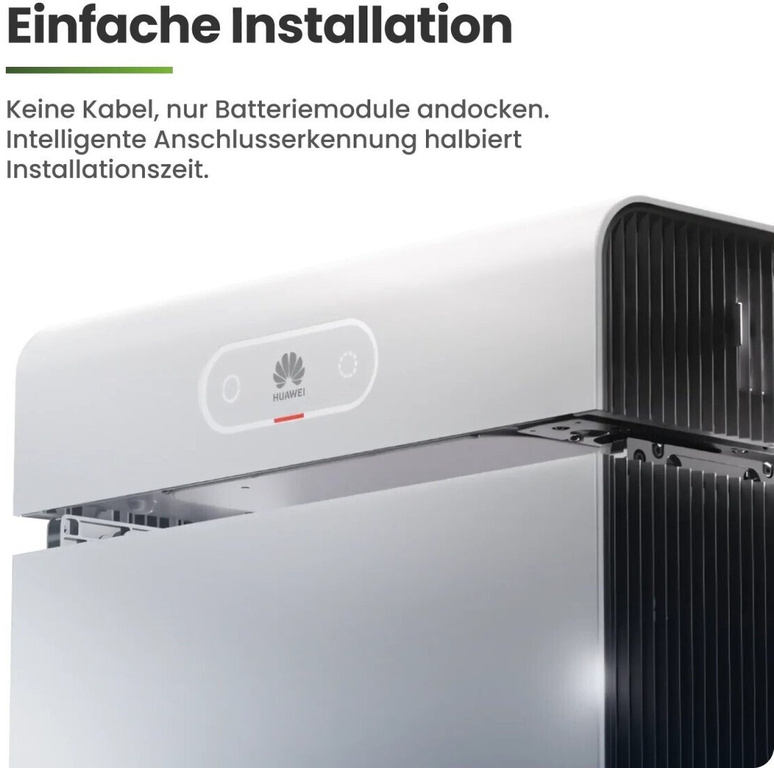

- Do the modules require connecting cables? No, they connect wirelessly.
- How long does the battery last? It has a long life at 100% depth of discharge.
Summary
Huawei LUNA2000-14-S1 is an efficient and safe energy storage designed for use with medium-power photovoltaic systems. It combines modern modular architecture, safe LiFePO₄ technology and high compatibility with Huawei inverters.
