Huawei LUNA2000-5-E0 rechargeable energy storage battery module LiFePO4 5 kWh IP66
- LiFePO₄ battery module for energy storage in photovoltaic installations, usable capacity of 5 kWh, depth of discharge 100%, IP66 protection.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Huawei LUNA2000-5-E0 - Energy storage system battery module

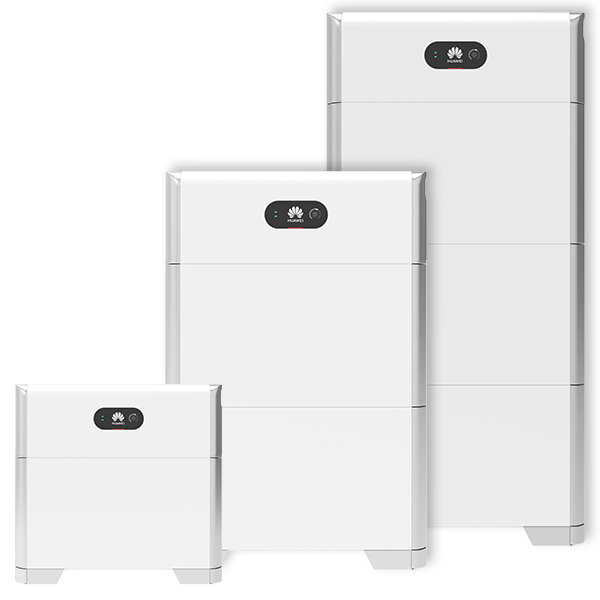

Huawei LUNA2000-5-E0 is a lithium-iron-phosphate (LiFePO₄) battery module with a capacity of 5 kWh, which is part of the Huawei LUNA2000 energy storage system. The device is designed to work with the LUNA2000-5KW-C0 power module, creating a scalable and secure energy storage for residential and commercial photovoltaic installations. Thanks to its modular architecture, the system is easily expandable up to 15 kWh, and its integration with Huawei SUN2000 inverters ensures maximum energy efficiency and convenience.
- Usable capacity of 5 kWh per module
- LiFePO₄ (lithium-iron-phosphate) battery technology
- 100% depth of discharge (DoD)
- Expandable up to 15 kWh (3 modules)
- Safe operation and full integration with Huawei inverters
Product description
Huawei LUNA2000-5-E0 is a smart battery module that works with the LUNA2000-5KW-C0 control unit. The unit stores the energy produced by the photovoltaic system and allows its use during hours of increased demand or lack of sunlight. The system can operate in both single-phase and three-phase installations, and is configured and monitored from apLication of Huawei FusionSolar. The modular architecture allows easy installation and expansion of the system up to a maximum of three modules (15 kWh).
Security and reliability
LUNA2000-5-E0 uses safe and durable lithium-iron-phosphate (LiFePO₄) technology with high chemical stability and resistance to overheating. The system is equipped with multi-level protection, including protection against overcharging, over-discharge, overheating and short circuit. The IP66 rating allows installation both indoors and outdoors, and natural convection cooling ensures quiet and maintenance-free expLoatation.
Technical data
| Electrical data | |
|---|---|
| Model | LUNA2000-5-E0 |
| Cell type | Lithium-iron-phosphate (LiFePO₄) |
| Usable energy (single module) | 5 kWh |
| Operating voltage range (1-phase) | 350 - 560 V DC |
| Operating voltage range (3-phase) | 600 - 980 V DC |
| Nominal module voltage | 360 V |
| Maximum charging/discharging power | 2.5 kW |
| Depth of discharge (DoD) | 100% |
| Energy efficiency | >97% |
| Safety features and functions | |
| Cooling system | Natural convection |
| Degree of protection | IP66 |
| Built-in protections | Short-circuit protection, overcurrent protection, temperature protection, overvoltage protection |
| Cell protection | Multi-level BMS (Battery Management System) system |
| Mechanical data | |
| Dimensions (W × D × H) | 670 × 150 × 240 mm |
| Weight of a single module | 50 kg |
| Color | Black |
| Mounting | Floor-mounted (with LUNA2000-5KW-C0 module) |
| Environmental conditions | |
| Operating temperature range | -10°C to +55°C |
| Storage temperature | -20°C to +60°C |
| Relative humidity | 5% - 95% (non-condensing) |
| Operating altitude | 0 - 4000 m (power reduction above 2000 m) |
| Noise level | <29 dB |
| System compatibility | |
| Compatible power module | LUNA2000-5KW-C0 |
| Compatible inverters |
SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 SUN2000-3/4/5/6/8/10KTL-M1 |
| Maximum number of modules per set | 3 (15 kWh) |
| Certifications and compliance | |
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, RoHS |
Technical data source: datasheet of Huawei LUNA2000-5/10/15-S0 model Link
FAQ
- What is the capacity of the LUNA2000-5-E0 module? 5 kWh of usable energy.
- What kind of cells are used? Lithium-iron-phosphate (LiFePO₄).
- What is the operating voltage of the system? 350-560 V (1-phase) / 600-980 V (3-phase).
- How many modules can be connected? A maximum of 3 in one set (15 kWh).
- Can the device be installed outdoors? Yes, thanks to the IP66 protection class.
- Which inverters are compatible? SUN2000 L1 and M1 series.
- What is the cooling? Natural convection (no fans).
- What is the system protection? Full BMS with temperature and surge protection.
- What is the battery life? More than 4,000 charge/discharge cycles at 100% DoD.
- Does the system support remote monitoring? Yes, via apLication of Huawei FusionSolar.
Summary
Huawei LUNA2000-5-E0 is a compact and safe 5 kWh battery module that enables flexible energy storage for photovoltaic systems. With its LiFePO₄ technology, IP66 rating and full compatibility with Huawei SUN2000 inverters, the unit provides a reliable and scalable solution for modern residential and commercial PV systems.
