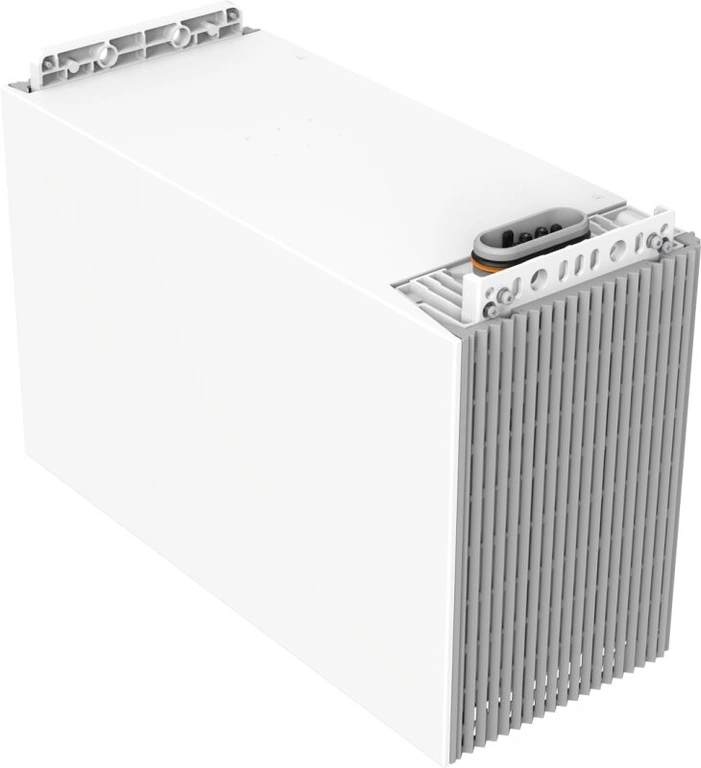

Huawei LUNA2000-7-E1 home energy storage battery module LiFePO4 6.9 kWh 3.5 kW IP66
- LiFePO₄ battery module for energy storage in Huawei systems, with a usable capacity of 6.9 kWh and a maximum charge/discharge power of 3.5 kW.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Huawei LUNA2000-7-E1 - Intelligent energy storage system
Huawei LUNA2000-7-E1 is a state-of-the-art lithium-iron-phosphate (LiFePO₄) battery module with a capacity of 6.9 kWh, designed for use in Huawei Smart String Energy Storage System. The device features high efficiency, flexible expansion up to 82.8 kWh and full integration with Huawei SUN2000 inverters. Thanks to its modular architecture and built-in energy optimizer, it ensures maximum utilization of stored energy and the highest level of security expLoatation.
- Usable capacity of 6.9 kWh
- Modular architecture with built-in energy optimizer
- 100% depth of discharge (DoD)
- Five-layer protection system and LiFePO₄ technology
- Operating temperature range from -20°C to +55°C
Product description

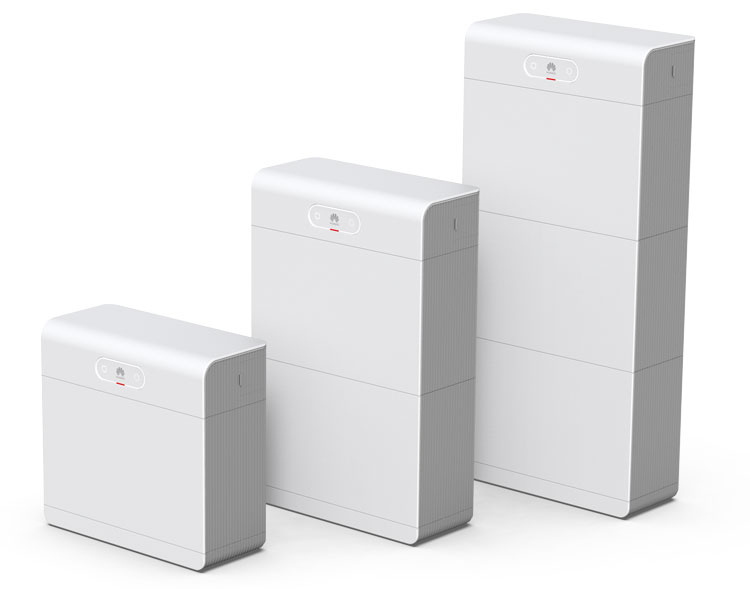

The Huawei LUNA2000-7-E1 is the primary component of the LUNA2000 series energy storage system, which can be scaled by combining up to three modules in a group (maximum 20.7 kWh). The system can be further expanded to four groups (82.8 kWh total) when combined with a Huawei inverter. Each module includes an integrated energy optimizer, ensuring balancing of energy levels between modules and increasing the lifetime of the entire system. The design allows for easy installation with wireless connections between modules.
Security and reliability
LUNA2000-7-E1 is designed according to a five-layer protection system: from the cell level, electrical and structural protection, to active and emergency safety mechanisms. LiFePO₄ technology ensures thermal stability and resistance to overheating. The system also features low noise levels (<29 dB), natural cooling, and the ability to operate outdoors thanks to its IP66:contentReference[oaicite:0]{index=0} rating.
Technical data
| Electrical data | |
|---|---|
| Battery module model | LUNA2000-7-E1 |
| Usable energy (single module) | 6.9 kWh |
| Type of cells | Lithium-iron-phosphate (LiFePO₄) |
| Max. charging/discharging power | 3.5 kW |
| Operating voltage range (1-phase system) | 350 - 560 V |
| Operating voltage range (3-phase system) | 600 - 980 V |
| Efficiency | 100% depth of discharge (DoD) |
| Communication and interface | |
| Communication interface | 2 × RS485 / FE / CAN |
| Display | LED indicator / SOC status indicator |
| Physical specifications | |
| Dimensions of the battery module (W × D × H) | 590 × 255 × 360 mm |
| Dimensions of the kit (with power module) | 590 × 255 × 510 mm |
| Weight of the set (with power module) | 80 kg |
| Weight of the battery module alone | 68 kg |
| Cooling | Natural convection |
| Noise level | <29 dB |
| Degree of protection | IP66 |
| Installation | On the floor (standard), on the wall (optional) |
| Environmental conditions | |
| Operating temperature range | -20°C to +55°C |
| Relative humidity | 5%-95% |
| Maximum operating altitude | 4000 m (power reduction above 2000 m) |
| Operating environment | Indoor / outdoor |
| Certifications and compliance | |
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, RoHS |
| Compatible Huawei inverters | |
| Models |
SUN2000-12/15/17/20/25K-MB0 SUN2000-3/4/5/6/8/10KTL-M1 SUN2000-8/10K-LC0 SUN2000-2/3/3.68/4/4.6/5/6KTL-L1 |
| System expansion | |
| Max. number of modules per group | 3 (20.7 kWh) |
| Max. number of groups (with inverter) | 4 (82.8 kWh) |
Source of technical data: datasheet of Huawei LUNA2000-7/14/21-S1 model.link
FAQ
- What is the capacity of a single module? 6.9 kWh of usable energy.
- How many modules can be combined in one set? Up to 3 (a total of 20.7 kWh).
- What inverters are compatible? SUN2000 M1, M2, M3, MB0 and L1 series.
- What is the maximum voltage of the system? 560 V for 1-phase and 980 V for 3-phase.
- Can the system operate outdoors? Yes, thanks to the IP66 protection class.
- What is the cooling of the system? Natural convection - no fans.
- Does the system require wires between modules? No, a wireless connection.
- What are the dimensions of a single module? 590 × 255 × 360 mm.
- What is the noise level? Less than 29 dB - very quiet operation.
- What certifications does it have? CE, RCM, CEC, VDE2510-50, IEC62619, UN38.3 and others.
Summary
Huawei LUNA2000-7-E1 is a state-of-the-art LiFePO₄ battery module with a capacity of 6.9 kWh, providing 100% energy utilization and the highest level of safety. With its modular architecture, full integration with Huawei inverters, and expandability up to 82.8 kWh, it is ideal for residential and commercial installations.
