Huawei LUNA2000-84-S1 modular energy storage system 82.8 kWh 42 kW battery pack
- Huawei LUNA2000-84-S1 modular energy storage for PV installations, 82.8 kWh usable capacity, 4 stacks of 3 battery modules each, 42 kW charging and discharging power.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

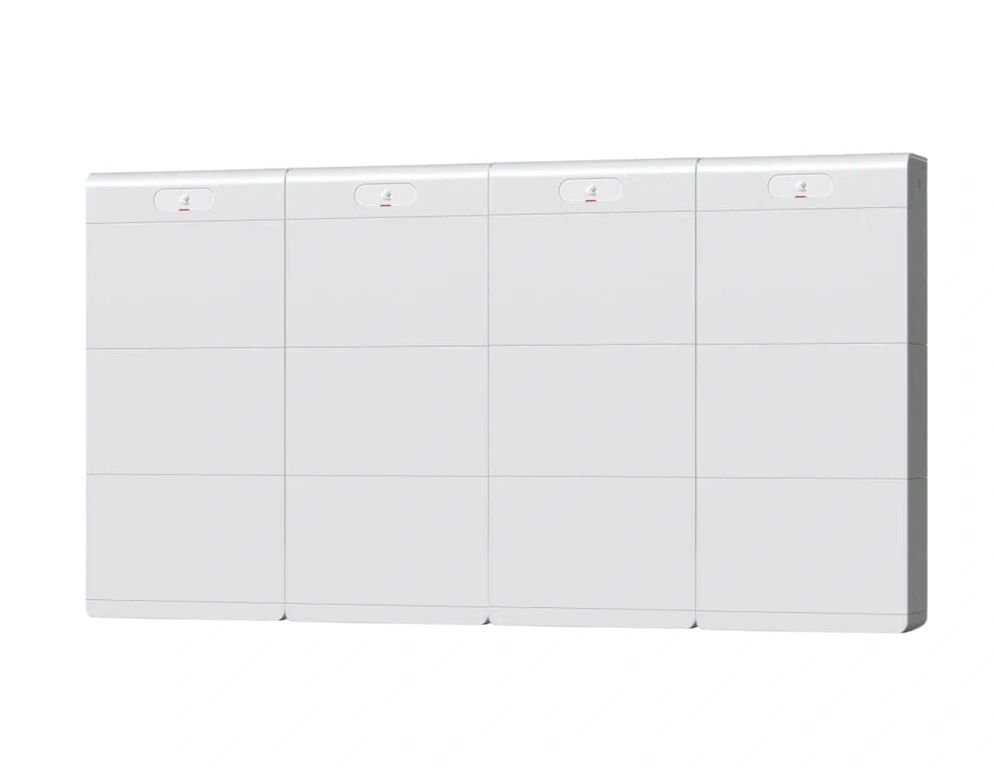

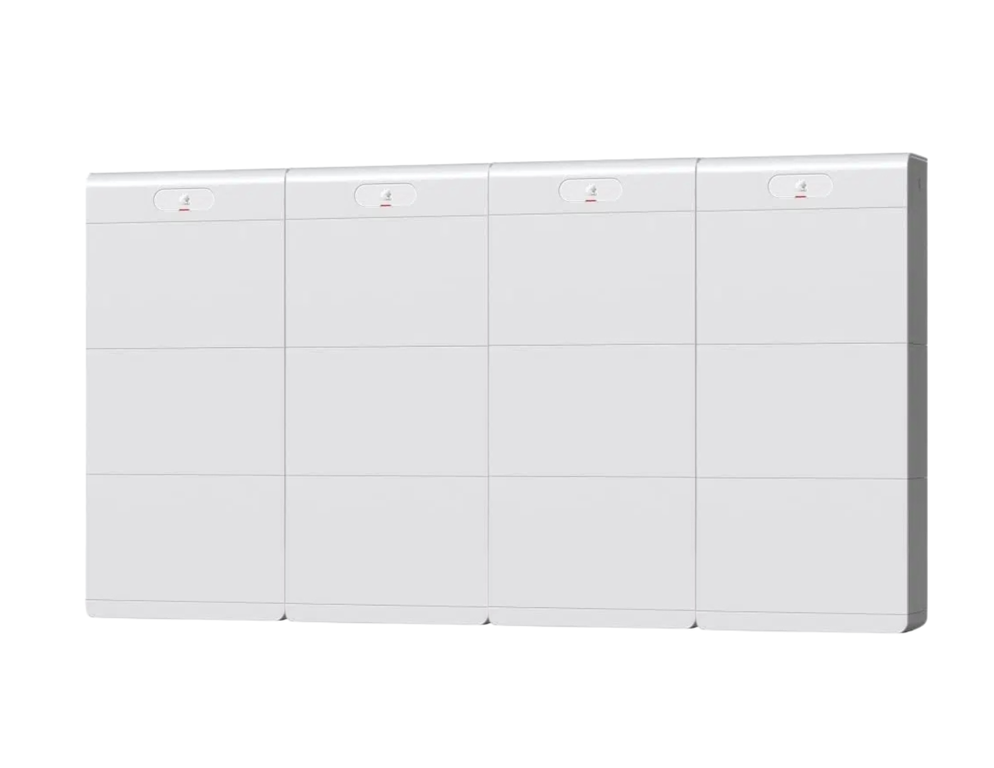

Huawei LUNA2000-84-S1 - set of 12× 6.9 kWh battery module (4 stacks) + 4× base + system cabling
Huawei LUNA2000-84-S1 is a compLetny modular energy storage system with a total usable capacity of 82.8 kWh, representing the highest configuration variant of the LUNA2000 series. The kit consists of twelve LUNA2000-7-E1 battery modules organized in four stacks of three modules each, four mounting bases and a full set of system cabling. It is an ideal solution for large industrial installations, commercial facilities and high-power photovoltaic systems.
- Total usable capacity of 82.8 kWh (12× 6.9 kWh)
- Four independent stacks of three battery modules each
- Maximum charging/discharging power of 42 kW
- Comes with 4 bases and compLetne system wiring
- LiFePO₄ cell technology - safety, performance and longevity
Product Description

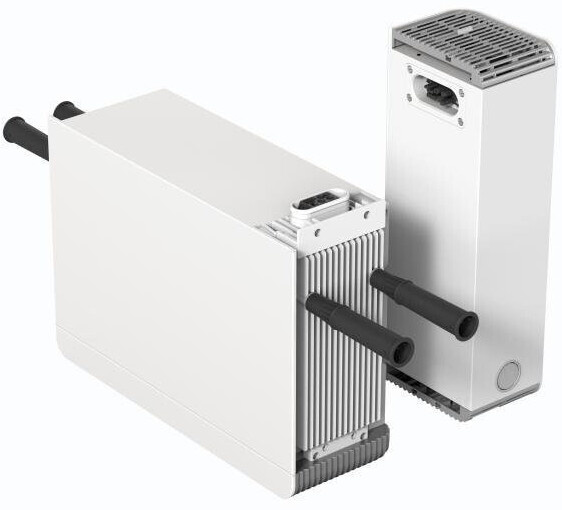

Huawei LUNA2000-84-S1 is the top model of the Smart String Energy Storage System family, offering maximum capacity and scalability. Each of the four stacks consists of three 6.9 kWh battery modules (a total of 20.7 kWh per stack) and a dedicated LUNA2000-10KW-C1 power module. Together, the entire stack provides 82.8 kWh of energy and 42 kW of power, making it ideal for large PV systems, commercial and industrial installations, as well as microgrids.
The LUNA2000-84-S1 system offers full integration with Huawei SUN2000 inverters and enables operation in parallel configurations, maintaining energy optimization in each module. The modular architecture with built-in energy optimizers allows independent energy management in each stack, while natural cooling and quiet operation (less than 29 dB) ensure reliability and comfort.
Safety and durability
The system is based on lithium-iron-phosphate (LiFePO₄) cells, which provide the highest level of safety ekspLoatation and long life. It uses a five-layer protection system (cell level, electrical, structural, active and emergency) to guarantee safe use under all conditions. LUNA2000-84-S1 meets CE, IEC62619, UN38.3, VDE2510-50 and RoHS standards, confirming the highest level of quality and safety.
Technical data
| Parameter | Value |
|---|---|
| Model | Huawei LUNA2000-84-S1 |
| Usable capacity | 82.8 kWh |
| Number of battery modules | 12 × LUNA2000-7-E1 |
| Configuration | 4 stacks of 3 battery modules each (4 × 20.7 kWh) |
| Charging/discharging power | 42 kW |
| Operating voltage range (1-phase) | 350 - 560 V |
| Operating voltage range (3-phase) | 600 - 980 V |
| Cell technology | Lithium-iron-phosphate (LiFePO₄) |
| Operating temperature range | -20°C - +55°C |
| Protection degree | IP66 |
| Noise level | < 29 dB |
| Cooling | Natural convection |
| Relative humidity | 5 - 95% |
| Maximum installation altitude | 4000 m (derating above 2000 m) |
| Installation | Freestanding (standard), wall mounting (optional) |
| Communication | RS485 / FE / CAN |
| Compatibility with inverters | Huawei SUN2000-12/15/17/20/25K-MB0, SUN2000-3-10KTL-M1, SUN2000-2-6KTL-L1 |
| Certifications | CE, RCM, CEC, VDE2510-50, IEC62619, IEC60730, UN38.3, ISO13849, REACH, RoHS |
| Kit contents | 12× LUNA2000-7-E1 battery module, 4× base, compLetne system wiring |
Technical data source: data sheet of LUNA2000-7/14/21-S1 Link
FAQ
- What is the capacity of the LUNA2000-84-S1 set? 82.8 kWh of usable capacity.
- How many modules does the kit contain? Twelve LUNA2000-7-E1 battery modules.
- What does the configuration look like? Four stacks of three battery modules each.
- How much is the maximum power of the system? 42 kW of charging and discharging power.
- Are there bases included? Yes, four mounting bases are included.
- Is the wiring included? Yes, the kit includes compLetne system wiring.
- What kind of cells are used? Lithium-iron-phosphate (LiFePO₄).
- Can the system be mounted outdoors? Yes, thanks to the IP66 waterproof rating.
- What are the operating conditions? Temperature from -20°C to +55°C, humidity up to 95%.
- Is the system quiet? Yes, it operates below 29 dB.
- Does the set require active cooling? No, it uses natural convection.
- What inverters are compatible? Huawei SUN2000 MB0, M1 and L1 series.
- Does the system have safety certifications? Yes, CE, IEC62619, UN38.3, VDE2510-50, RoHS.
- Who is the kit designed for? For large PV installations and commercial facilities.
Summary
Huawei LUNA2000-84-S1 is the most advanced and efficient energy storage system in Huawei's portfolio, offering up to 82.8 kWh of usable capacity. With its modular architecture, the safety of LiFePO₄ technology and full compatibility with SUN2000 inverters, it provides a compLeks solution for large energy systems requiring stability and high power output.
