Industrial energy storage system ESS Huawei LUNA2000-215-2S10 cabinet hybrid cooling 215 kWh IP55
- Huawei LUNA2000-215-2S10 industrial energy storage system (ESS) for PV and C&I energy storage, rated capacity of 215 kWh.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

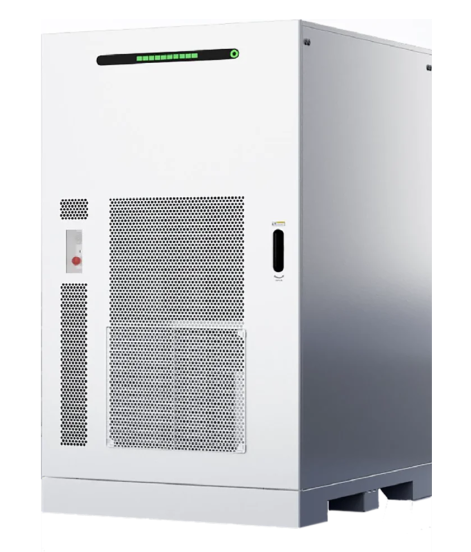

Huawei LUNA2000-215-2S10 Industrial Energy Storage System (ESS)
Huawei LUNA2000-215-2S10 is an advanced industrial energy storage system (Smart String ESS) with 215 kWh capacity, designed for large-scale photovoltaic installations and commercial power systems. The unit features high cyclic efficiency, intelligent energy management and a multi-level safety system, making it one of the most advanced solutions in its class.
- Rated capacity: 215 kWh
- Charge/discharge cycle efficiency: 91,3%
- Temperature operating range: -30°C to +55°C
- IP55 protection rating and noise level of less than 65 dB(A)
- Multi-level protection system and hybrid cooling
Product description
The LUNA2000-215-2S10 system is part of Huawei's industrial line of Smart String Energy Storage System. With its modular design and advanced energy control, the ESS can be used for grid stabilization as well as on-grid and off-grid systems. The device features intelligent Active Balance and automatic SOC (State of Charge) calibration to maintain optimal efficiency and battery life. The system can be managed remotely via pLatform Huawei FusionSolar, offering full control over operating parameters and energy consumption analysis.
Safety and reliability
Huawei LUNA2000-215-2S10 uses lithium-iron-phosphate (LFP) cells, known for their high thermal stability and chemical safety. The system has a built-in, directional fire suppression system with controlled gas discharge and a safety valve on top of the enclosure. In addition, the ESS offers overvoltage, leakage current, overload and islanding protection functions that comply with IEC and UL standards. The entire unit is encapsulated in an IP55-rated enclosure, allowing it to operate in harsh industrial environments.
Technical data
| General parameters of the system | |
|---|---|
| Model | LUNA2000-215-2S10 |
| Rated capacity | 215.0 kWh |
| Maximum cyclic power | 0,5 C |
| Charge/discharge cycle efficiency | 91,3% |
| Depth of discharge (DoD) | 0-100% |
| Dimensions (W × D × H) | 1150 × 1800 × 2100 mm |
| Weight | ≤ 2,8 t |
| Operating temperature range | -30°C ~ +55°C (derating above 50°C) |
| Storage temperature range | -35°C ~ +60°C |
| Operating humidity | 0 - 100% (without condensation) |
| Maximum operating altitude | 4000 m |
| Cooling system | Hybrid (ventilation + convection) |
| Energy balancing mode | Active Balance |
| State of charge (SOC) calibration | Automatic |
| Fire suppression mode | Gas discharge, safety valve, aerosol |
| Standby power consumption | ≤150 W |
| Auxiliary power supply | 176-264 V AC (1-phase, ≤5 kW) |
| Noise level | 65 dB(A) |
| Degree of protection | IP55 |
| EMC class | Class B |
| Overvoltage protection | Type II (AC port) |
| Communication protocols | Modbus TCP (Ethernet / fiber optic) |
| Protection modes | Anti-islanding, detection of leakage current, insulation resistance, overload and AC connection error |
| Environmental standards | RoHS6 |
| Certifications | UL9540A, UN38.3, IEC62477-1, IEC62040-1, IEC61000-6-1/2/3/4, IEC61727 |
| Battery parameters (DC) | |
| Cell material | Lithium-iron-phosphate (LFP) |
| Rated capacity of the cell | 280 Ah |
| Battery system configuration | 240S1P |
| Number of battery packs | 4 |
| Operating voltage range | 648 - 864 V |
| Rated DC current | 140 A |
| Parameters of PCS (AC/DC converter) | |
| PCS model | PCS2000-108K-MB1 |
| Rated output power | 108 kW |
| Nominal AC current | 164,1 A |
| AC voltage / frequency | 380 / 400 / 415 V (3P4W), 50/60 Hz |
| Adjustable power factor | -1 to +1 |
| Harmonic distortion of current (THDi) | ≤1,5% |
Source of technical data: data sheet of Huawei LUNA2000-215-2S10 model.link
FAQ
- What is the capacity of the system? 215 kWh of usable energy.
- What kind of cells are used? Safe LFP (lithium-iron-phosphate) cells.
- What is the operating voltage of the system? 648-864 VOLTS DC.
- What are the dimensions and weight? 1150 × 1800 × 2100 mm, weight ≤2.8 t.
- What is the efficiency of the system? 91.3% at 0.5 C.
- What noise level does the system generate? 65 dB(A) at rated conditions.
- What kind of cooling is used? Hybrid - active + convection.
- What are the fire safety features? Directional gas discharge, valve expLozion and aerosol.
- What certifications does the device have? UL9540A, IEC62477-1, IEC62040-1, UN38.3, IEC61000-6.
- What are the applications? Energy storage in C&I installations, PV farms and microgrids.
Summary
Huawei LUNA2000-215-2S10 is a next-generation industrial energy storage, providing 215 kWh capacity and 91.3% efficiency. With hybrid cooling, active balancing and full compliance with IEC and UL safety standards, this system guarantees stability, reliability and safety in commercial and industrial applications.
