DC CAN connection cable SolarEdge IAC-RBAT-5KCINV-01 battery cable set for inverter IP65 6 mm²
- SolarEdge IAC-RBAT-5KCINV-01 cable set for connecting BAT-05K48M0B-02 storage to RWB48 Home Hub inverter; DC and CAN cables, length approx. 2.5 m, IP65 rating.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
SolarEdge IAC-RBAT-5KCINV-01 wiring kit - connecting BAT-05K48 energy storage to RWB48 inverter
SolarEdge IAC-RBAT-5KCINV-01 is the original low-voltage DC connection cable kit, designed to integrate SolarEdge Home BAT-05K48M0B-02 energy storage with SolarEdge Home Hub RWB48 inverters. The compLet provides a secure, standards-compliant energy and communications connection between the energy storage and inverter, enabling proper data and energy exchange in the system SolarEdge Home.
- Dedicated inverter kit SolarEdge Home Hub RWB48
- Compatible with energy storage BAT-05K48M0B-02
- DC power and communication (CAN) cables
- Factory type terminations pLug-and-pLay
- High level of safety and waterproofing (IP65)
Product description
The IAC-RBAT-5KCINV-01 kit is an indispensable component of the SolarEdge Home system in the BAT-05K48 storage configuration. It contains compLet DC power cables and CAN communication cable with dedicated connectors, which allow simple and safe installation without the need for soldering or crimping terminals. The cables are made of high-quality materials with increased temperature and UV resistance, which allows both indoor and outdoor installation.
Functionality and application
The SolarEdge IAC-RBAT-5KCINV-01 kit physically connects the SolarEdge Home BAT-05K48M0B-02 energy storage module(s) to the SolarEdge Home Hub RWB48 three-phase inverter (SE5K-SE10K-RWB48 models). DC-side connection minimizes conversion losses and allows direct charging and discharging of the battery from the inverter. CAN communication enables full synchronization of inverter and storage operation, including charge management, monitoring and system protection.
Kit contents

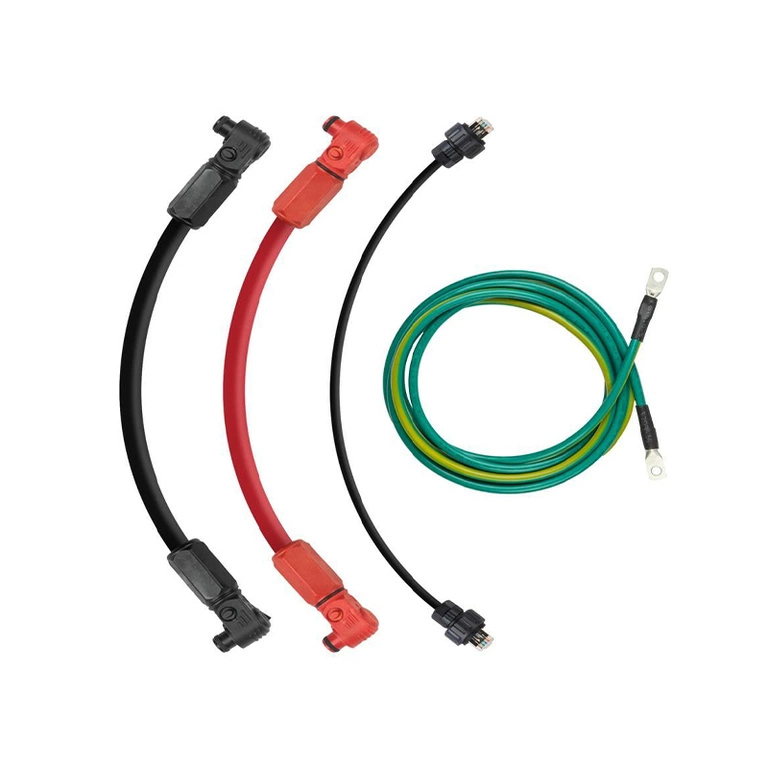

- 1× DC cable (+) - SolarEdge BAT connector to inverter (factory terminations)
- 1× DC cable (-) - SolarEdge BAT connector to inverter
- 1× CAN communication cable with shielding and hermetic connectors
- 1× compLet gaskets and mounting fasteners
- Installation instructions (included)
Technical data - IAC-RBAT-5KCINV-01
| Category | Parameter | Value |
|---|---|---|
| Purpose | Compatible devices | SolarEdge Home BAT-05K48M0B-02 and Home Hub RWB48 inverters (SE5K-SE10K) |
| System type | DC-coupLed (DC side) | |
| Connections | Cable type | DC power (+/-), CAN communication |
| Cable length | approx. 2.5 m (each) | |
| Conductor cross section of DC cable | 6 mm² (Cu, multi-stranded, XLPE insulation) | |
| CAN cable shielding | YES - aluminum foil + opLot copper | |
| Insulation and protection | Protection class | IP65 - resistance to water and dust |
| Electrical insulation | Up to 1000 V DC | |
| UV resistance | Yes (PE/PA UV-resistant coating) | |
| Operating temperature range | Minimum / maximum | -25 °C to +60 °C |
| Security | Security | Protection against reverse polarity and moisture |
| Compliance with standards | Standards | IEC 62930, UL 9703, EN 50618, RoHS |
| Warranty | Period | 2 years |
Technical data source: installation documentation SolarEdge Home Hub RWB48 and accessories Link
FAQ
- What is the IAC-RBAT-5KCINV-01 kit used for? To connect the energy storage SolarEdge Home BAT-05K48 to the inverter SolarEdge Home Hub RWB48.
- Is the kit required for battery installation? Yes, it is the only SolarEdge-approved cable connecting the storage to the inverter.
- What connections does the kit provide? DC power (pLus/minus) and CAN communication.
- What is the length of the cables? Approximately 2.5 m each, with factory terminations pLug-and-pLay.
- Can the kit be used outdoors? Yes, the cables are IP65 rated and UV resistant.
- What inverters are compatible? SolarEdge SE5K-SE10K-RWB48 (three-phase) models.
- What are the safety standards? IEC 62930, UL 9703, EN 50618, RoHS.
Summary
SolarEdge's IAC-RBAT-5KCINV-01 is a compLetne certified interconnect cable kit for integrating the BAT-05K48 energy storage with the RWB48 inverter. It provides full compatibility, maximum safety and easy installation pLug-and-pLay. With IP65 resistance and high quality workmanship, it is ideal for residential and commercial installations SolarEdge Home.
