SolarEdge IAC-RBAT-5KCBAT-01 connection cable set - for Home BAT-05K48 battery modules
SolarEdge IAC-RBAT-5KCBAT-01 is an original low-voltage connection cable set designed to connect energy storage modules SolarEdge Home BAT-05K48M0B-02. KompLet allows you to safely and reliably connect several battery modules into a single 48 V DC system, ensuring proper communication and energy flow between units. The kit is required for installations with multiple BAT-05K48 modules.
- Compatibility: SolarEdge Home Battery 48V BAT-05K48M0B-02
- Supports up to 5 battery modules
- Dedicated low voltage DC and communication cables
- PLug-and-pLay - fast and safe installation
- High resistance to outdoor conditions (IP65)
Product description
The IAC-RBAT-5KCBAT-01 kit is designed for the integration of energy storage systems SolarEdge Home. It allows connecting from two to five BAT-05K48 modules in parallel configuration. The kit includes dedicated DC power cables, RS485 communication cables and compLet connectors protected against polarity reversal and moisture. Thanks to the factory-configured wires, the assembly is quick and without the risk of connection error.
Construction of the kit

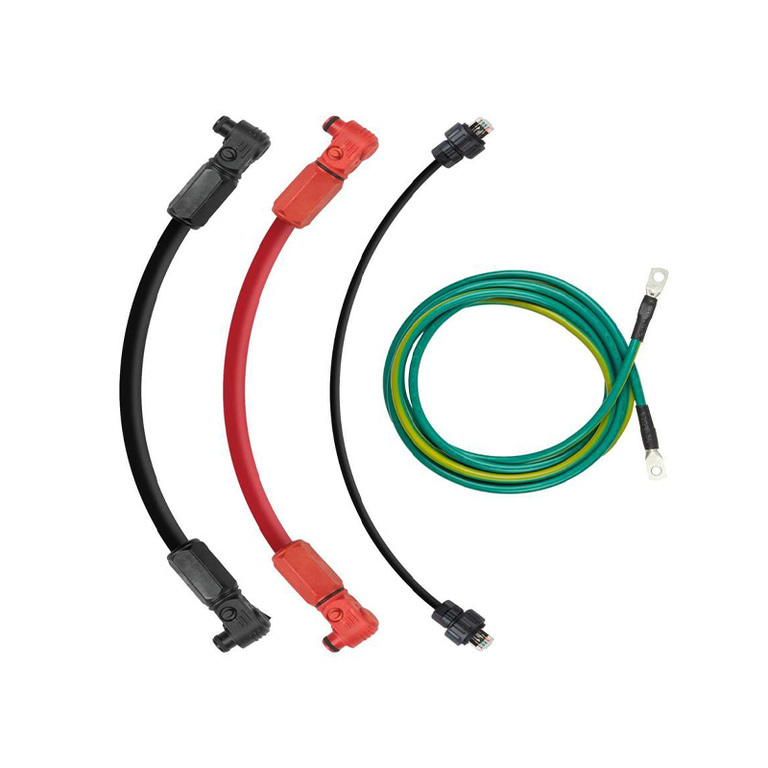

The kit includes compLet cables and accessories necessary to connect the modules in a multi-module arrangement:
- 1× DC power cable (pLus/minus) with a length matching the configuration of the modules
- 1× RS485 communication cable for communication between modules
- 1× set of seals and hermetic connectors (industrial type, IP65)
- Color and numbering markings for simple installation
Functionality and application
The IAC-RBAT-5KCBAT-01 kit is required for installations with more than one SolarEdge BAT-05K48 module. It allows electrical and communication connection of all units, ensuring stable operation of the entire energy storage. The system automatically recognizes the modules after connecting the cables and performs the configuration using apLication of SolarEdge SetApp. The use of the original set guarantees compliance with VDE and IEC safety requirements.
Technical data - IAC-RBAT-5KCBAT-01
| Category | Parameter | Value |
|---|---|---|
| Purpose | Battery model | SolarEdge Home BAT-05K48M0B-02 |
| System type | 48 V DC, parallel configuration | |
| Connections | Type of connections | DC + RS485 communication |
| Maximum number of modules | 5 | |
| Isolation | Category | Class II - low voltage DC connections |
| Protection | Degree of protection | IP65 |
| UV resistance | Yes (UV-resistant PE/PA plastic coating) | |
| Working temperature | Range | -25 °C to +60 °C |
| Connectors | Type | SolarEdge hermetic connectors with bayonet locking mechanism |
| Security | Security | Reverse polarity and moisture protection |
| Certifications | Compliance | IEC 62930, UL 9703, RoHS |
Technical data source: installation documentation SolarEdge Home Battery 48V and accessories Link
FAQ
- What is the IAC-RBAT-5KCBAT-01 kit used for? To combine several SolarEdge BAT-05K48 modules into one energy storage.
- How many modules can be connected with this kit? Up to 5 units.
- Is the kit required for a single battery? No, only for configurations with more than one module.
- Are the cables shielded? Yes, the RS485 cable is shielded and terminated with factory connectors.
- Can the kit be used outdoors? Yes, the IP65 rating provides water and dust resistance.
- Do the cables comply with safety standards? Yes, IEC 62930 and UL 9703.
Summary
The SolarEdge IAC-RBAT-5KCBAT-01 is a dedicated low-voltage cable kit that is essential for connecting multiple BAT-05K48 energy storage modules. It offers factory quality, full SolarEdge Home compatibility and easy installation. It guarantees a reliable, safe and aesthetically pleasing connection of a battery system with a total capacity of up to 23 kWh.
