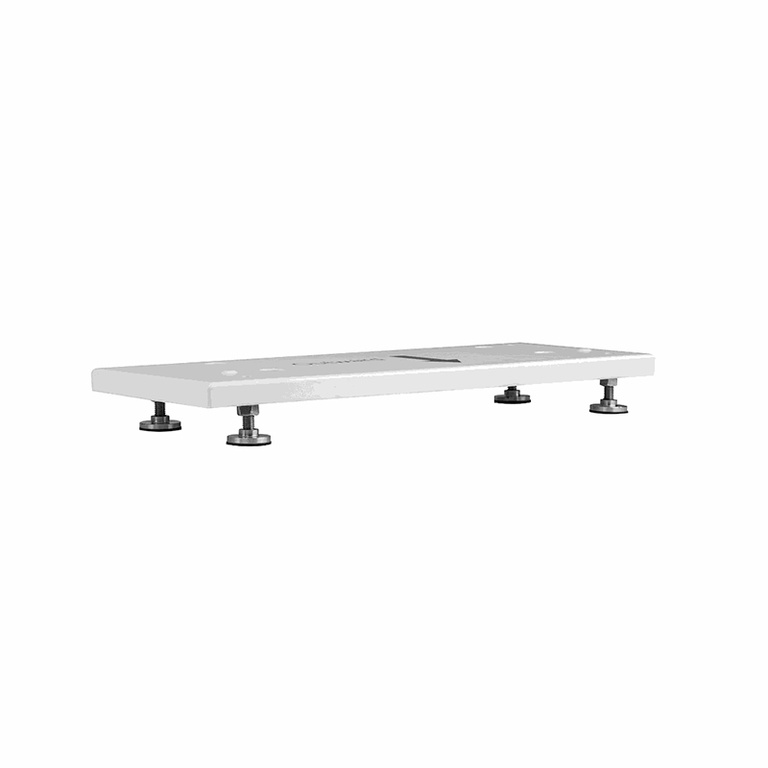

SolarEdge energy storage mounting base IAC-RBAT-5KFSTD-01 IP65 48V floor stand
- SolarEdge IAC-RBAT-5KFSTD-01 mounting base for BAT-05K48M0B-02 energy storage, allows up to 5 modules to be placed vertically, made of powder-coated steel, IP65 protection rating.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
SolarEdge IAC-RBAT-5KFSTD-01 base - for SolarEdge Home 48V low voltage energy storage
SolarEdge IAC-RBAT-5KFSTD-01 is the original mounting base designed for SolarEdge Home Battery 48V BAT-05K48M0B-02 energy storage units. It allows safe and stable positioning of battery modules in a vertical ("tower") configuration, ensuring proper ventilation, insulation from the ground and mechanical protection. The base is recommended by the manufacturer for installation of energy storage units on the floor - both indoors and outdoors.
- Dedicated to BAT-05K48M0B-02 (48V DC) models
- Designed for 1 to 5 battery modules
- Stable, anti-corrosive powder-coated steel construction
- Can be mounted on concrete or paved surfaces
- Resistant to weather conditions (IP65)
Product description
The SolarEdge IAC-RBAT-5KFSTD-01 base provides a sturdy and secure mounting element for SolarEdge Home 48V energy storage. It makes it possible to place one or more BAT-05K48 modules in a tower configuration without wall mounting. The construction of the base is made of powder-coated steel, ensuring resistance to corrosion, UV radiation and mechanical damage. The use of a dedicated base guarantees compliance with the manufacturer's requirements for safety and stability of battery installations.
Functionality and application
The IAC-RBAT-5KFSTD-01 base is designed to mount SolarEdge BAT-05K48M0B-02 modules vertically, creating a so-called "battery tower". Thus, it allows optimal placement of units in limited space. Each module is mounted on slides with protection against displacement and vibration. The kit includes mounting screws and spacers, allowing quick and safe installation. The base allows mounting of both a single battery and a multi-module configuration (up to 5 modules per tower).
Technical data - IAC-RBAT-5KFSTD-01
| Category | Parameter | Value |
|---|---|---|
| Purpose | Compatible devices | SolarEdge Home Battery 48V BAT-05K48M0B-02 |
| Maximum number of modules | 5 (one tower) | |
| Construction | Material | Powder coated steel, galvanized |
| Color | Graphite / technical black (RAL 9005) | |
| Finishing | Anti-corrosion and UV coating | |
| Dimensions | Width × depth × height | ~540 × 500 × 110 mm |
| Weight | ~5.5 kg | |
| Mounting | Type | Floor-mounted, with the possibility of screwing to the ground |
| Type of substrate | Concrete, cube, mounting plate | |
| Resistance | Degree of protection | IP65 |
| UV resistance | Yes | |
| Operating temperature | -25 °C to +60 °C | |
| Security | Mounting security | Screws and locks to prevent modules from being moved |
| Compliance with standards | Certifications | IEC 62930, EN ISO 12944, RoHS |
| Warranty | Period | 2 years |
Technical data source: installation documentation SolarEdge Home Battery 48V and system accessories Link
FAQ
- What is the IAC-RBAT-5KFSTD-01 base used for? For mounting SolarEdge BAT-05K48 modules on the base in a vertical arrangement (tower).
- How many modules can be mounted on one base? Up to 5 BAT-05K48M0B-02 battery modules.
- Can the base be used outdoors? Yes, it has IP65 resistance and UV coating.
- What materials are used in the construction? Powder-coated galvanized steel.
- Does it require fixing to the ground? Recommended for outdoor installation or for a full tower (5 modules).
- Is the installation of the base comppLicted? No, the kit includes screws and fasteners - installation takes about 10 minutes.
Summary
SolarEdge IAC-RBAT-5KFSTD-01 is a robust and rugged base designed for SolarEdge Home 48V energy storage. It allows the system to be mounted in a free-standing configuration, guaranteeing the stability, safety and durability of the installation. Thanks to its design and weather resistance, it is an ideal solution for indoor and outdoor installations.
