SolarEdge energy storage protective cover IAC-RBAT-5KMTOP-01 IP65 48V top module
- SolarEdge IAC-RBAT-5KMTOP-01 protective cover for the Home Battery 48V BAT-05K48M0B-02 battery tower, protects the upper connectors from water and dust, IP65 rating.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

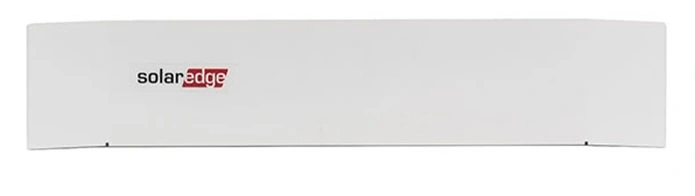

SolarEdge IAC-RBAT-5KMTOP-01 cover - for low voltage energy storage SolarEdge Home 48V
SolarEdge IAC-RBAT-5KMTOP-01 is the original protective cover designed for the SolarEdge Home Battery 48V BAT-05K48M0B-02 energy storage kit. This component is a top cover mounted on top of the battery tower (1-5 modules), providing protection from the elements, ingress of dust and moisture, and mechanical damage to the cable connections. The cover is indispensable for any installation of the system SolarEdge Home in a free-standing or outdoor configuration.
- Dedicated to SolarEdge BAT-05K48M0B-02 (48V DC) models
- Protects the connectors and wires of the upper module
- Ensures the battery pack is fully sealed (IP65)
- Made of rugged fiberglass-reinforced engineering plastic
- Compatible with IAC-RBAT-5KFSTD-01 base and SolarEdge system cables
Product description
The IAC-RBAT-5KMTOP-01 cover is a factory-fitted component of the SolarEdge Home Battery 48V system. It protects the top electrical and communication connectors of BAT-05K48 modules from rain, dust and UV radiation, which is especially important for outdoor installation. The cover is equipped with a perimeter seal and locking lugs, which guarantee secure and durable fixing without the use of additional tools. Together with the base IAC-RBAT-5KFSTD-01, it forms a compLete mounting kit for the freestanding battery tower SolarEdge Home.
Functionality and application
The IAC-RBAT-5KMTOP-01 component serves both a protective and aesthetic function. It prevents the accumulation of moisture and dirt within the top module connectors and provides a mechanical barrier against accidental damage to the connections. It is made of high-strength polycarbonate composite with glass fibers, resistant to UV radiation, impact and temperature fluctuations. The cover maintains the system's IP65 tightness, so it can be used in outdoor conditions.
Technical data - IAC-RBAT-5KMTOP-01
| Category | Parameter | Value |
|---|---|---|
| Purpose | Compatible devices | SolarEdge Home Battery 48V BAT-05K48M0B-02 |
| Configuration type | Battery tower (1-5 modules) | |
| Construction | Material | Composite material (polycarbonate + fiberglass) |
| Color | Technical black (matched with BAT-05K48 modules) | |
| Coating | Antistatic, UV resistant | |
| Dimensions | Width × depth × height | ~540 × 500 × 45 mm |
| Weight | ~1.2 kg | |
| Degree of protection | Protection class | IP65 |
| UV resistance | Yes (certified UV-stable coating) | |
| Operating temperature range | -25 °C to +60 °C | |
| Mounting | Installation method | Directly on top of BAT-05K48 module (snaps + gasket) |
| Compatibility | IAC-RBAT-5KFSTD-01, IAC-RBAT-5KCBAT-01, IAC-RBAT-5KCINV-01 kits | |
| Security | Security | Silicone seal, IK08 impact resistance |
| Compliance with standards | Certifications | IEC 60529, EN 62208, RoHS |
| Warranty | Period | 2 years |
Technical data source: installation documentation SolarEdge Home Battery 48V and system accessories Link
FAQ
- What is the IAC-RBAT-5KMTOP-01 cover used for? It protects the upper part of the battery tower SolarEdge Home from water, dust and mechanical damage.
- For which devices does it fit? For SolarEdge BAT-05K48M0B-02 (48V DC) energy storage units.
- Is the cover required? Yes, it is a mandatory component for outdoor installations and recommended for all tower configurations.
- What material is the cover made of? From fiberglass-reinforced polycarbonate composite.
- Is the cover UV resistant? Yes, it is certified UV and weather resistant.
- Does installation require tools? No, the cover is assembled with snap-fasteners with a perimeter seal.
Summary
SolarEdge IAC-RBAT-5KMTOP-01 is a dedicated protective cover for BAT-05K48 energy storage units, ensuring the safety, tightness and durability of the entire battery tower. Thanks to its high quality workmanship and weather resistance, it is an indispensable part of any SolarEdge Home installation - both indoor and outdoor.
