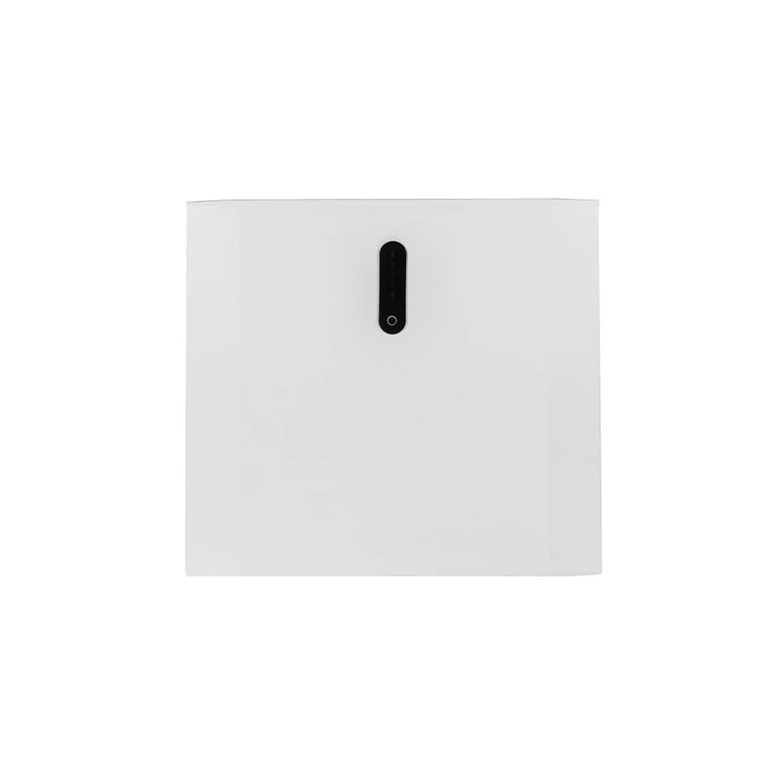

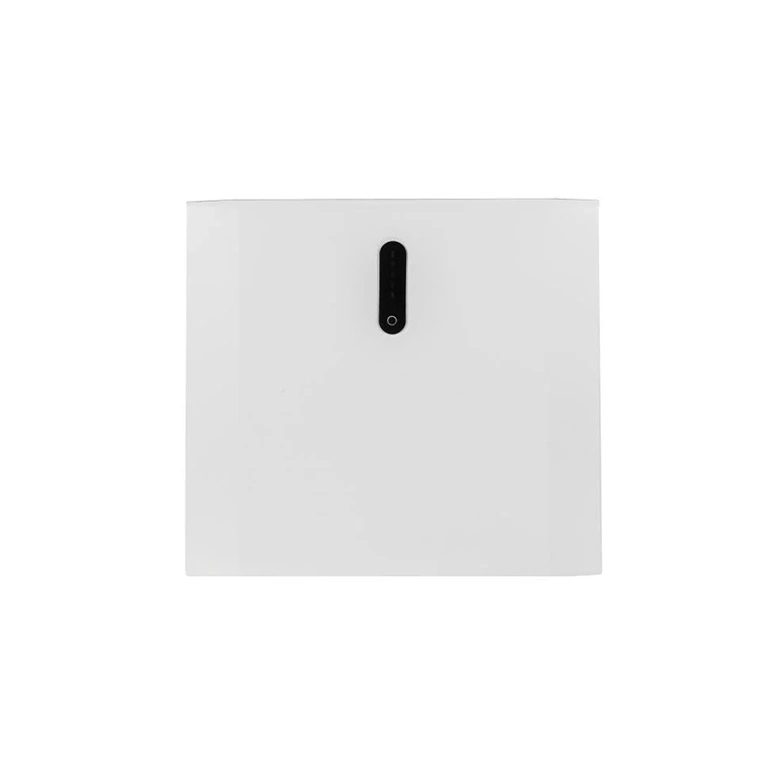

SolarEdge photovoltaic energy storage BAT-05K48M0B-02 DC energy storage module 5.12 kWh 48 V IP65
- SolarEdge BAT-05K48M0B-02 energy storage for home photovoltaic systems, is used to store energy on the DC side, nominal capacity of 5.12 kWh (4.6 kWh usable).
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Energy storage SolarEdge Home BAT-05K48M0B-02 - 48 V DC
SolarEdge BAT-05K48M0B-02 is a single 5.12 kWh energy storage module for photovoltaic systems SolarEdge Home. The unit operates on the DC side and works with SolarEdge Home Hub and Home Wave inverters to provide high conversion efficiency, safety and system scalability. The battery can operate independently or be combined with up to five identical modules for increased total capacity.
- Nominal capacity: 5.12 kWh (4.6 kWh usable)
- Cell technology: lithium-iron-phosphate (LFP)
- Communication via CAN interface (with inverter) and RS485 (between modules)
- Possibility to work in a system of up to 5 modules - max. 23 kWh
- Degree of protection IP65 - indoor and outdoor installation
Product description
The SolarEdge BAT-05K48M0B-02 battery is part of the SolarEdge Home ecosystem and is used to store excess energy produced by photovoltaic panels. Thanks to the direct connection on the DC side, energy is stored without AC/DC conversion losses, which increases the efficiency of the entire system. The unit is passively cooled, eliminating the need for maintenance, and LFP technology ensures chemical stability and long cycle life.
Functionality and advantages
The BAT-05K48M0B-02 module is designed for simple installation in a pLug-and-pLay configuration with automatic detection by the SolarEdge inverter. A single unit offers a usable energy of 4.6 kWh, allowing flexible capacity adjustment to meet the user's energy needs. With an IP65 rating, the storage unit can be installed both indoors and outdoors.
Technical data - SolarEdge BAT-05K48M0B-02
| Category | Parameter | Value |
|---|---|---|
| Energy and power | Nominal energy | 5120 Wh |
| Usable energy | 4600 Wh | |
| Continuous power (charge/discharge) | 2825 W / 4096 W | |
| Cycle efficiency | > 95,4 % | |
| Operating voltage range | 44.8 - 56.5 V DC | |
| Communication | To the inverter | CAN interface |
| Between modules | RS485 | |
| System scaling | Number of modules in the system | 1-5 (max. 23 kWh) |
| Type of cell | Chemistry | Lithium-iron-phosphate (LFP) |
| Compliance with standards | Cell safety | IEC 62619, UN38.3, UL 9540A |
| System safety | IEC 63056, VDE-AR-E 2510-50 | |
| EMC | IEC 61000-6-1, -6-2, -6-3, -6-4 | |
| Mechanical parameters | Dimensions (W × H × D) | 540 × 500 × 240 mm |
| Weight | 54.7 kg | |
| Cooling | Natural convection (without fan) | |
| Noise level | < 25 dBA (1 m) | |
| Operating temperature range | -10 °C - +50 °C | |
| Degree of protection | IP65 / NEMA 3R | |
| Mounting | Wall-mounted or on a stand (optional) | |
| Warranty | Period | 10 years |
Source of technical data: data sheet for model BAT-05K48M0B-02 Link
FAQ
- What is the capacity of the BAT-05K48M0B-02 battery? 5.12 kWh (4.6 kWh usable).
- What inverters are compatible? SolarEdge Home Hub and Home Wave three-phase.
- How many modules can be connected? Up to 5 units in parallel (max. 23 kWh).
- What operating voltage does it support? 44.8 - 56.5 V DC.
- Can it be mounted outdoors? Yes, protection class IP65 / NEMA 3R.
- What cells does the battery use? Lithium-iron-phosphate (LFP).
- What are the dimensions and weight? 540 × 500 × 240 mm, 54.7 kg.
- What kind of cooling is used? Natural convection - no noise or maintenance.
- How long is the warranty period? 10 years.
Summary
SolarEdge BAT-05K48M0B-02 is a reliable 48-volt DC energy storage designed for home photovoltaic installations. It offers high efficiency, the safety of LFP technology and the flexibility to expand up to 23 kWh. It is an ideal solution for users looking for an efficient and durable energy storage system within the ecosystem SolarEdge Home.
