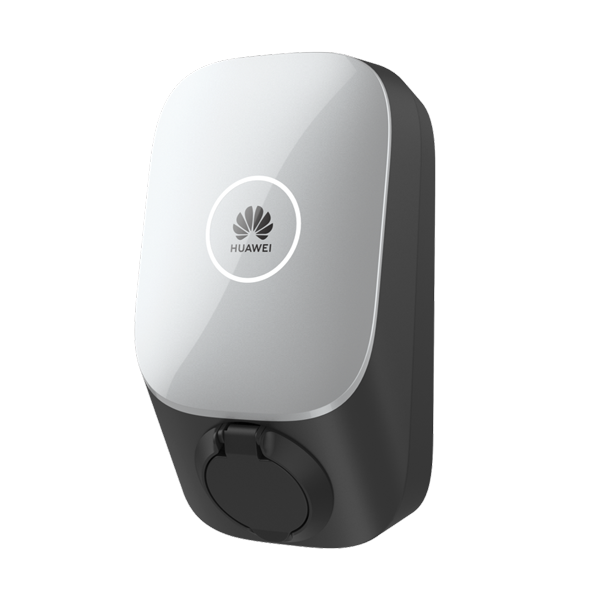

Huawei SCharger-22KT-S0 - Smart three-phase charger for electric vehicles
The Huawei SCharger-22KT-S0 is a smart three-phase charger for electric vehicles with up to 22 kW and 32 A rated current. The device is designed for residential and commercial users, offering functions of automatic phase switching, dynamic charging from PV installations and remote management via apLication FusionSolar. With an IP54 rating and compact housing, the charger ensures reliability and safety in all environmental conditions.
- Charging power up to 22 kW (configurable)
- Three-phase current rating up to 32 A
- Wi-Fi / Ethernet communication with apLication of FusionSolar
- Dynamic charging from PV installations
- Three-step authentication: RFID, Bluetooth, apLication
Product description
Huawei SCharger-22KT-S0 is part of the Huawei Smart Energy ecosystem and works with SUN2000 series inverters and LUNA2000 energy storage systems. The charger automatically switches between single-phase and three-phase modes for optimal use of solar energy. With apLication of FusionSolar, the user can monitor charging status, energy consumption and control charging power in real time.
Safety and reliability
The SCharger-22KT-S0 charger complies with IEC 61851-1 and IEC 62955 safety standards and features integrated electric shock, residual current (DC 6 mA) and temperature protection, which minimizes the risk of overheating and short circuit. An enclosure made of UL94 flammability-rated material guarantees flame resistance, while IP54 and IK10 ratings ensure resistance to external agents and impact.
Technical data
| Input and output data | |
|---|---|
| Charging power (configurable) | From 1.4 kW to 22 kW |
| Rated voltage | 400 V (three-phase) ±20% |
| Rated current (configurable) | 6-32 A |
| Rated frequency | 50/60 Hz ±1 Hz |
| Vehicle connection | Type 2 receptacle |
| Cable width | Up to 10 mm² |
| Network type | TN, TT |
| User interface and communication | |
| Protocol | Modbus TCP |
| Communication | Wi-Fi / Ethernet |
| LED indicators | WRGB LED |
| Authentication | RFID (ISO 14443-A), apLication, Bluetooth |
| Remote control and monitoring | Yes, via apLication FusionSolar |
| Operation mode | Standard charging / PV / automatic phase switching |
| Protection | |
| Overvoltage protection | CAT II |
| Overcurrent protection | IEC 61851-1 |
| Protection against overheating | Yes |
| Residual current protection (RCD) | Built-in: type A (30 mA) + DC 6 mA (IEC 62955) |
| Flammability class | UL94 |
| General specifications | |
| Operating temperature range | -35°C to +40°C at 32 A -35°C to +50°C at 16 A |
| Storage temperature | -40°C to +70°C |
| Relative humidity | 5%-95% |
| Altitude. | ≤2000 m (power reduction above 2000 m) |
| Dimensions (H × W × D) | 335 × 180 × 145 mm |
| Weight | 3.1 kg |
| Degree of protection | IP54 |
| Impact resistance | IK10 |
| Own consumption in standby mode | <6 W |
| Compliance with standards | |
| Standards | EN 61851-1:2019, IEC 62955:2018, IEC 61008-1:2010, IEC/EN 62196-1 |
| Accessories | |
| Accessories included | 2 × RFID card |
Technical data source: datasheet of Huawei SCharger-22KT-S0 model Link
FAQ
- What is the maximum charging power? 22 kW at 32 A current.
- Does the charger support power supply from PV? Yes, automatic charging with photovoltaic energy.
- What are the communication options? Wi-Fi and Ethernet with apLication of FusionSolar.
- What type of charging socket is used? Type 2 (European standard).
- Is remote control possible? Yes, via apLication of FusionSolar from anywhere.
- What are the methods of user authorization? RFID, Bluetooth and apLication mobile.
- What are the safety features? RCD type A + DC 6 mA, thermal, overvoltage and overcurrent protection.
- What is the protection class? IP54 - dust and splash resistance.
- What are the dimensions and weight? 335 × 180 × 145 mm, 3.1 kg.
- What is the consumption in standby mode? Less than 6 watts.
Summary
The Huawei SCharger-22KT-S0 is an advanced 22 kW three-phase EV charger, providing full integration with Huawei PV and ESS systems. It offers intelligent energy management, remote monitoring and the highest level of security, making it an ideal choice for modern residential and commercial installations.
