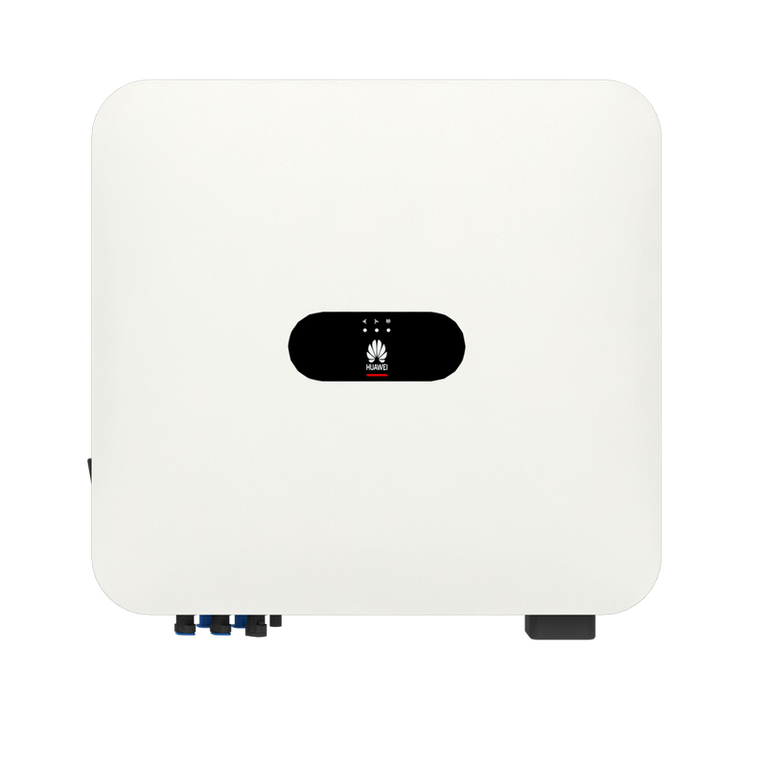

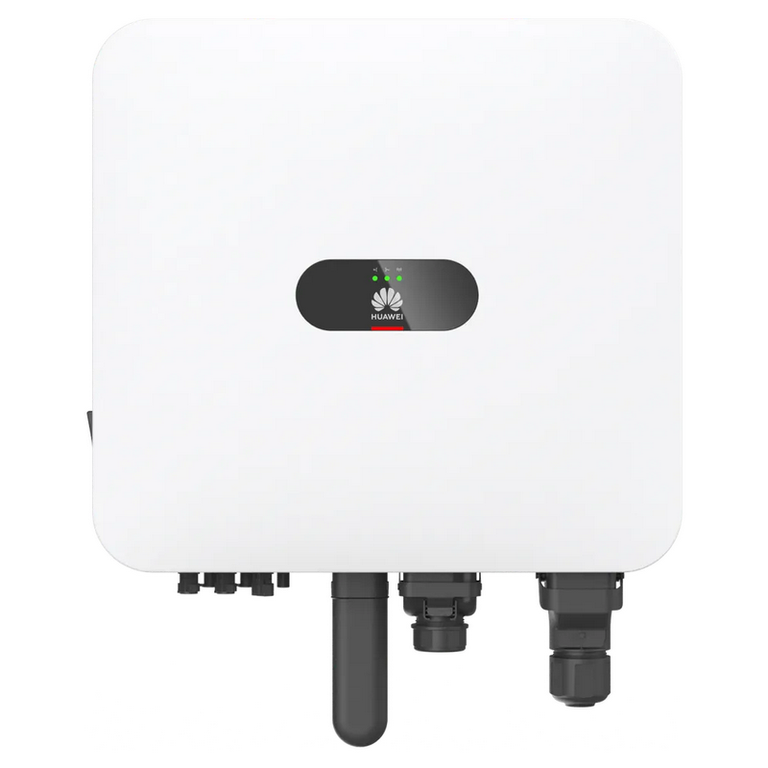

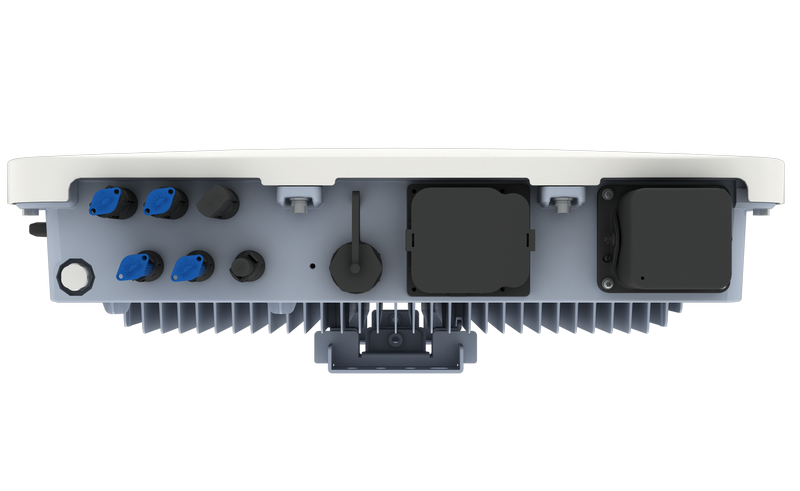

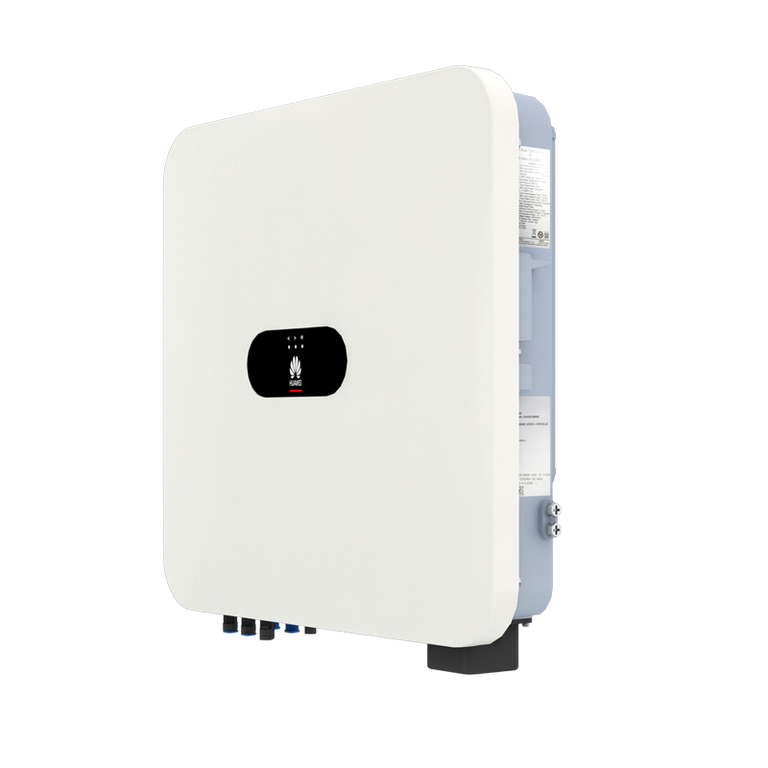

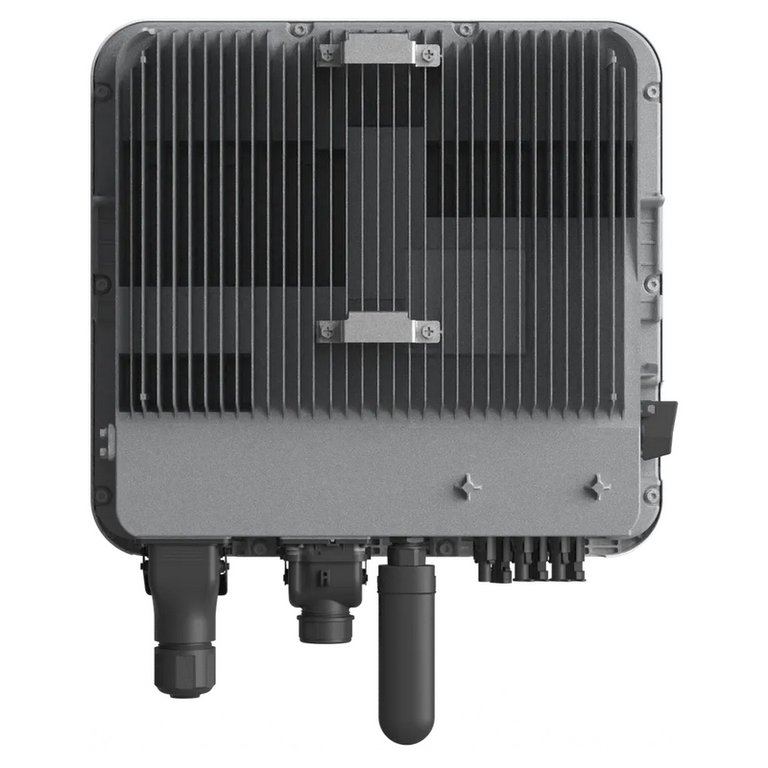

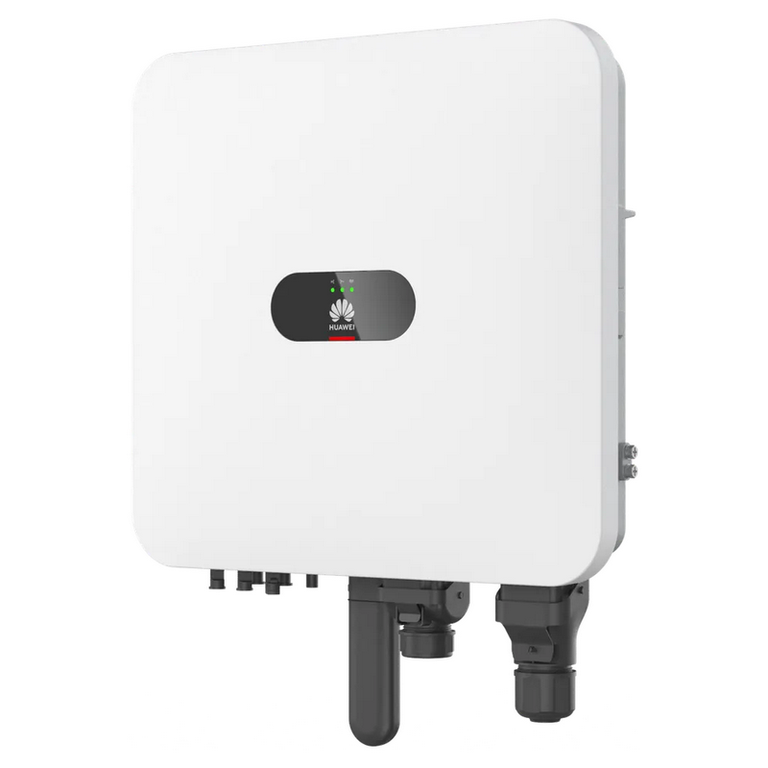

HUAWEI SUN2000-10K-MAP0 hybrid inverter
HUAWEI SUN2000-10K-MAP0 is an advanced 10 kW three-phase hybrid inverter designed for modern photovoltaic installations with the possibility of cooperation with energy storage. The device provides high efficiency, wide compatibility and extensive safety and communication functions.
- AC rated power: 10,000 W
- Maximum PV power: 18,000 Wp
- High maximum efficiency: 98.6%
- Two independent MPPT circuits
- IP66 rating and quiet operation (≤ 29 dB)
Product description
The HUAWEI SUN2000-10K-MAP0 inverter is part of the Huawei Smart Energy Controller series, offering integration with LUNA2000-S0 and LUNA2000-S1 energy storage. The device supports emergency (off-grid) mode when working with the SmartGuard-63A-T0 module, allowing the building to be powered in the event of a grid outage. With AFCI, RSD and connector temperature detection technology, the inverter provides the highest level of installation safety.
Key features
- 200% overload and three-phase asymmetrical load support
- Active protection features: AFCI, RSD and connector temperature detection
- Cooperation with LUNA2000-S0/S1 energy storage units
- Natural cooling and low night loss (< 5.5 W)
- Compatible with HUAWEI SUN2000-450W-P2 and 600W-P optimizers
Technical data
| Parameter | Value |
|---|---|
| Model | SUN2000-10K-MAP0 |
| Maximum efficiency | 98,6 % |
| European efficiency | 98,1 % |
| Recommended max PV power | 18,000 Wp |
| Max. dc input voltage | 1100 V |
| Operating voltage range | 160 - 1000 V |
| Starting voltage | 160 V |
| Rated DC voltage | 600 V |
| Max. input current MPPT | 16 A |
| Max. short-circuit current | 22 A |
| Number of MPPT | 2 |
| Compatible energy storage | LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
| Battery voltage range | 600 - 980 V |
| Max. battery current | 20 A |
| Max. charging power | 12 000 W |
| Max. discharge power | 11 000 W |
| Network type | Three-phase |
| AC rated power | 10 000 W |
| Max. apparent power | 11 000 VA |
| AC output voltage | 220/380 V, 230/400 V, 240/415 V |
| Max. output current | 16,7 A |
| Power factor | 0.8 inductive - 0.8 capacitive |
| THD harmonic distortion | ≤ 3 % |
| Cooling mode | Natural convection |
| Noise level | ≤ 29 dB |
| Dimensions (with handles) | 490 × 460 × 130 mm |
| Weight | 21 kg |
| Degree of protection | IP66 |
| Operating temperature | -25 °C ... +60 °C |
| Relative humidity | 0 - 100 % |
| Max. working altitude | 4000 m above sea level |
| Compatible optimizers | SUN2000-450W-P2, SUN2000-600W-P |
Technical data source:data sheet for model SUN2000-10K-MAP0 Link
FAQ - Frequently asked questions
- Does the SUN2000-10K-MAP0 inverter work with energy storage? Yes, it supports LUNA2000-S0 and LUNA2000-S1 energy storage.
- How many MPPT tracks does the device have? The inverter has two independent MPPT tracks.
- What is the maximum DC input voltage? 1100 V.
- Does the device support failure mode? Yes, in combination with the SmartGuard-63A-T0 device.
- What are the inverter's protections? AFCI, RSD, over-voltage, over-current, over-current and connector temperature detection protection.
- What are the dimensions of the inverter? 490 × 460 × 130 mm.
- What communication interfaces are available? RS485, WLAN, Ethernet, 4G (Smart Dongle).
- What is the cooling of the device? Natural convection, without fans.
- What is the discharge power from the battery? Up to 11,000 watts.
- What are the nighttime losses? Less than 5.5 watts.
The HUAWEI SUN2000-10K-MAP0 inverter is an efficient and safe solution for medium and large PV installations, offering hybrid operation, intelligent energy management and full integration with the HUAWEI FusionSolar ecosystem.
