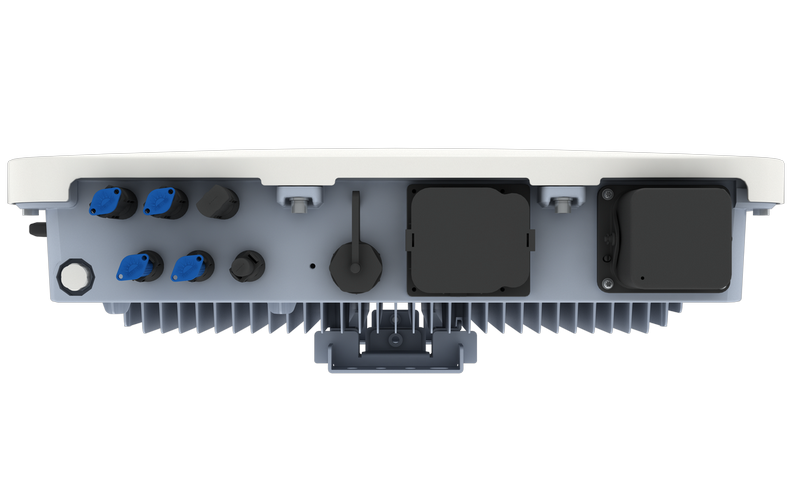

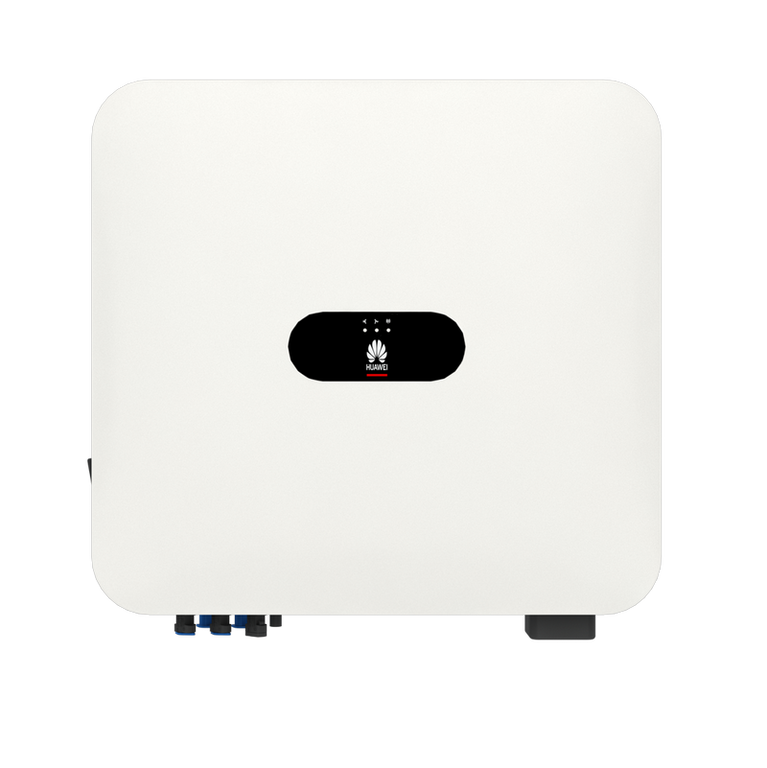

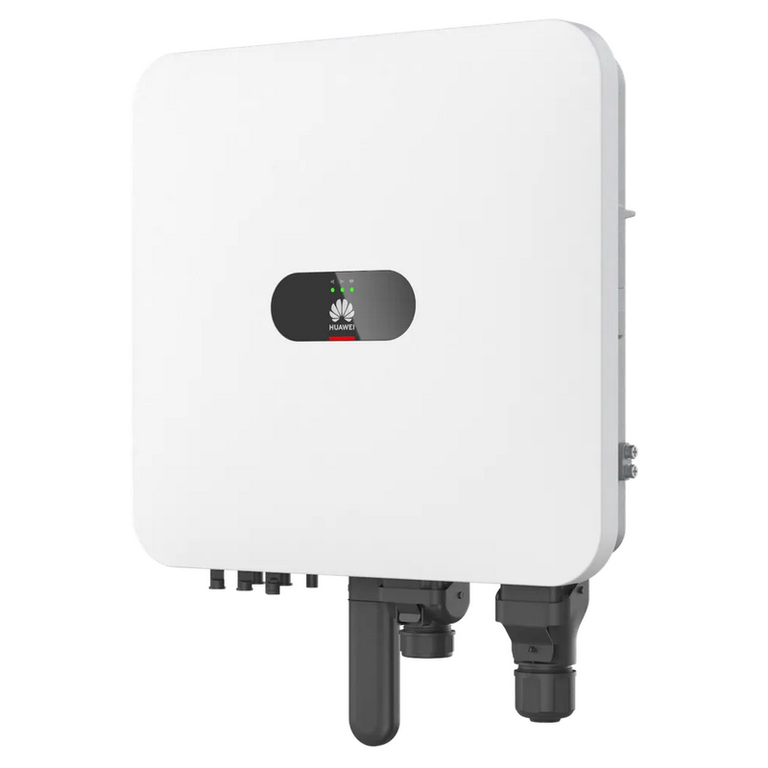

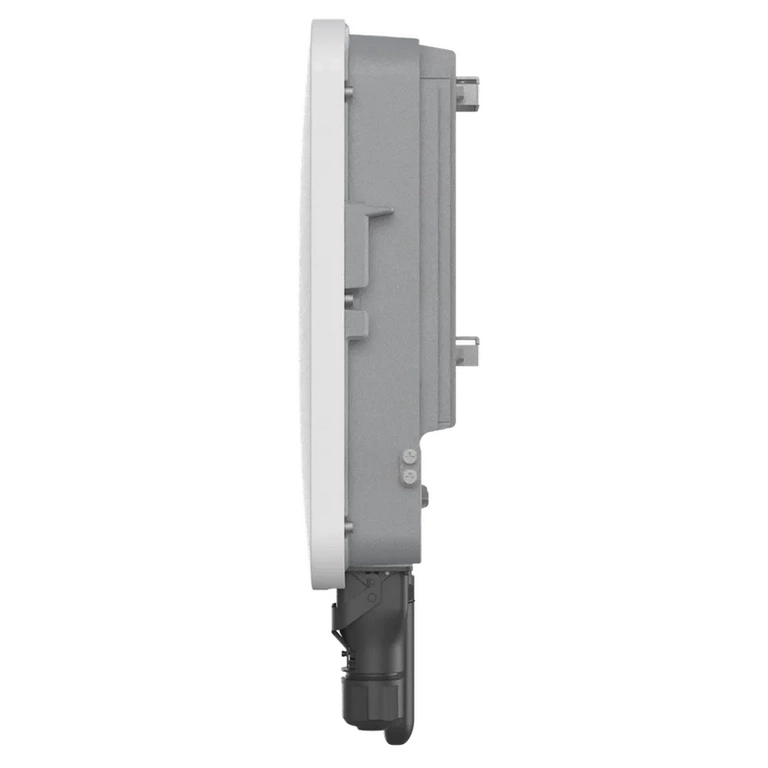

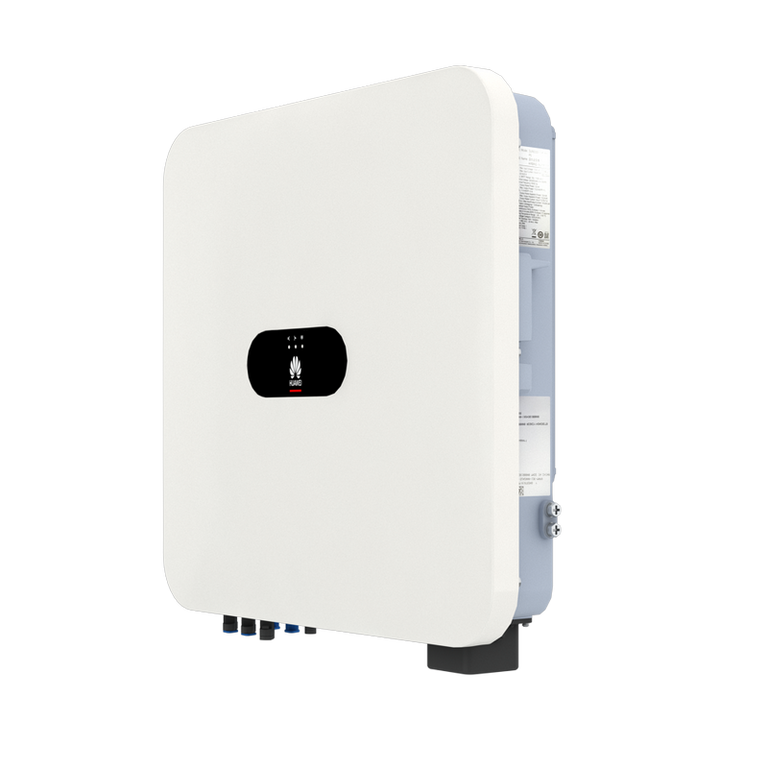

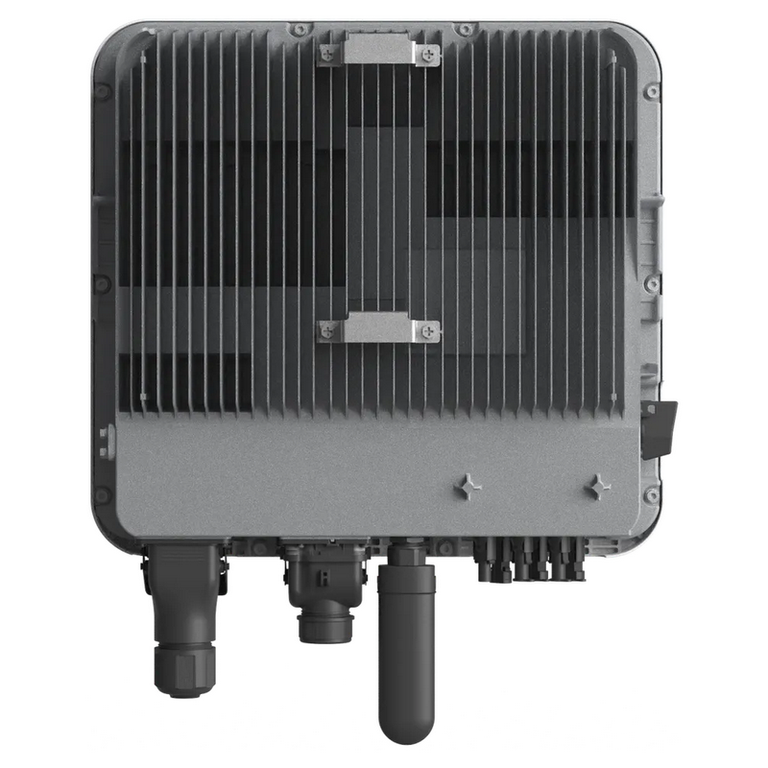

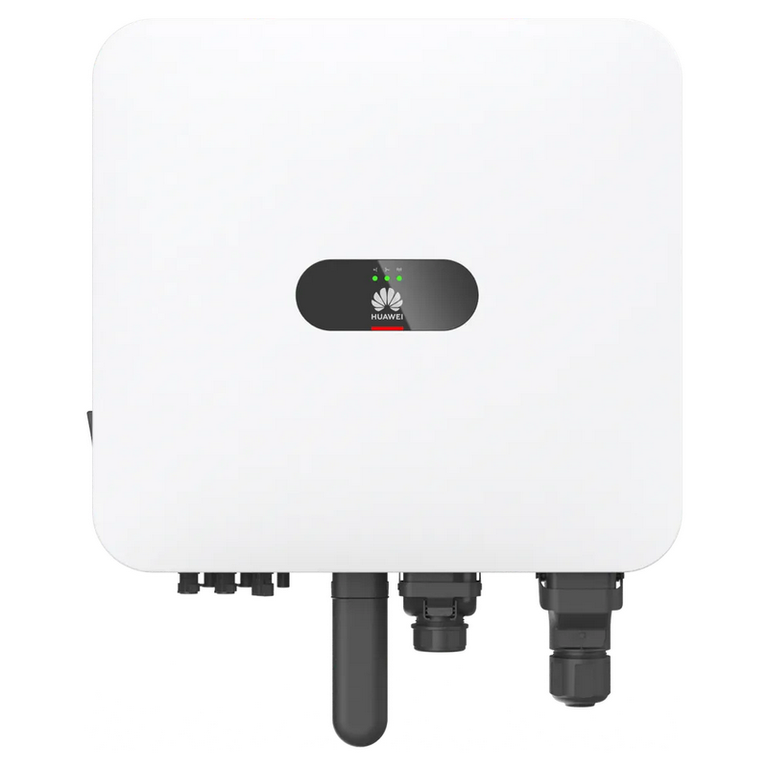

HUAWEI SUN2000-6K-MAP0 hybrid inverter
HUAWEI SUN2000-6K-MAP0 is a state-of-the-art 6 kW three-phase hybrid inverter designed for residential and commercial photovoltaic applications. The device offers high efficiency, reliability and full integration with Huawei LUNA2000 energy storage.
- AC rated power: 6,000 watts
- Maximum PV power: 11,000 Wp
- High maximum efficiency: 98.6%
- Two independent MPPT circuits
- IP66 rating and quiet operation (≤ 29 dB)
Product description
The HUAWEI SUN2000-6K-MAP0 inverter is part of the HUAWEI Smart Energy Controller series, designed to work in hybrid mode with LUNA2000 energy storage. The device is equipped with active protection (AFCI, RSD), connector temperature detection and support for asymmetrical three-phase load. With natural cooling, high IP66 protection and modern communication interfaces, it provides long-lasting, maintenance-free expLoatation.
Key features
- 200% overload and three-phase asymmetrical load support
- Active AFCI and RSD protection
- Compatibility with LUNA2000-S0/S1 energy storage units
- Support for RS485, WLAN, Ethernet and 4G communications
- Compatibility with HUAWEI SUN2000-450W-P2 and 600W-P optimizers
Technical data
| Parameter | Value |
|---|---|
| Model | SUN2000-6K-MAP0 |
| Maximum efficiency | 98,6 % |
| European efficiency | 97,7 % |
| Recommended max PV power | 11,000 Wp |
| Max. dc input voltage | 1100 V |
| Operating voltage range | 160 - 1000 V |
| Starting voltage | 160 V |
| Rated DC voltage | 600 V |
| Max. input current MPPT | 16 A |
| Max. short-circuit current | 22 A |
| Number of MPPT | 2 |
| Compatible energy storage | LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
| Battery voltage range | 600 - 980 V |
| Max. battery current | 20 A |
| Max. charging power | 12 000 W |
| Max. discharge power | 6 600 W |
| Network type | Three-phase |
| AC rated power | 6 000 W |
| Max. apparent power | 6,600 VA |
| AC output voltage | 220/380 V, 230/400 V, 240/415 V |
| Max. output current | 10,0 A |
| Power factor | 0.8 inductive - 0.8 capacitive |
| THD harmonic distortion | ≤ 3 % |
| Cooling mode | Natural convection |
| Noise level | ≤ 29 dB |
| Dimensions (with handles) | 490 × 460 × 130 mm |
| Weight | 21 kg |
| Degree of protection | IP66 |
| Operating temperature | -25 °C ... +60 °C |
| Relative humidity | 0 - 100 % |
| Max. working altitude | 4000 m above sea level |
| Compatible optimizers | SUN2000-450W-P2, SUN2000-600W-P |
Technical data source:data sheet for model SUN2000-6K-MAP0 Link
FAQ - Frequently Asked Questions
- Does the SUN2000-6K-MAP0 inverter work with energy storage? Yes, it supports LUNA2000-S0 and LUNA2000-S1.
- How many MPPT tracks does the device have? The inverter has two independent MPPT tracks.
- What is the maximum DC input voltage? 1100 V.
- What is the cooling of the device? Natural convection, without fans.
- Does the inverter support emergency operation? Yes, in conjunction with the SmartGuard-63A-T0 device.
- What are the protections? AFCI, RSD, overcurrent, overvoltage, overvoltage protection and connector temperature detection.
- What are the dimensions of the inverter? 490 × 460 × 130 mm.
- What communication interfaces are available? RS485, WLAN, Ethernet, 4G (Smart Dongle).
- What is the maximum three-phase load? 100% phase asymmetry.
- What are the night losses? Less than 5.5 watts.
The HUAWEI SUN2000-6K-MAP0 inverter is a robust and energy-efficient solution for PV installations with expandable energy storage. With high efficiency and safety features, it ensures stable and efficient system operation for many years.
