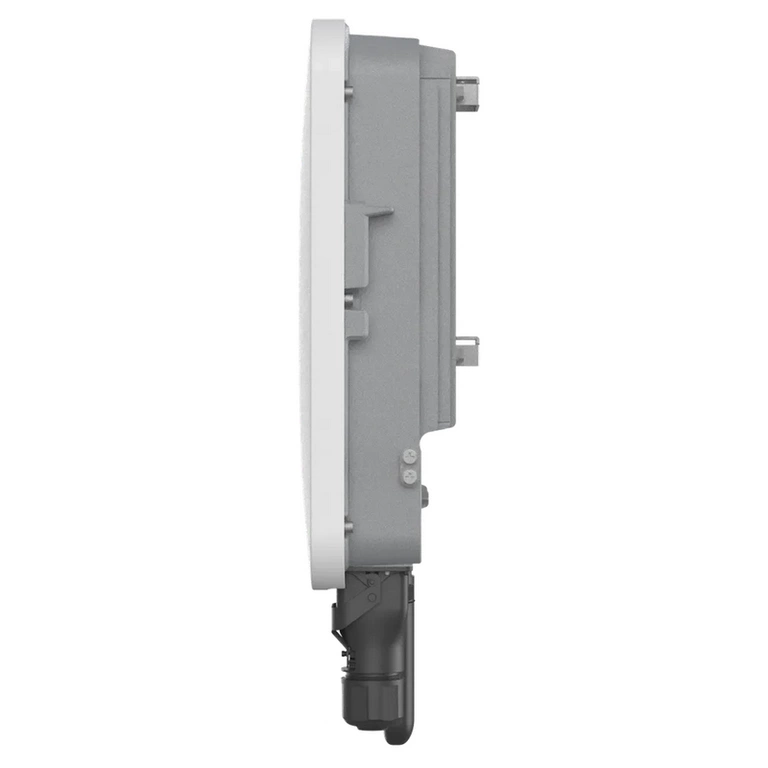

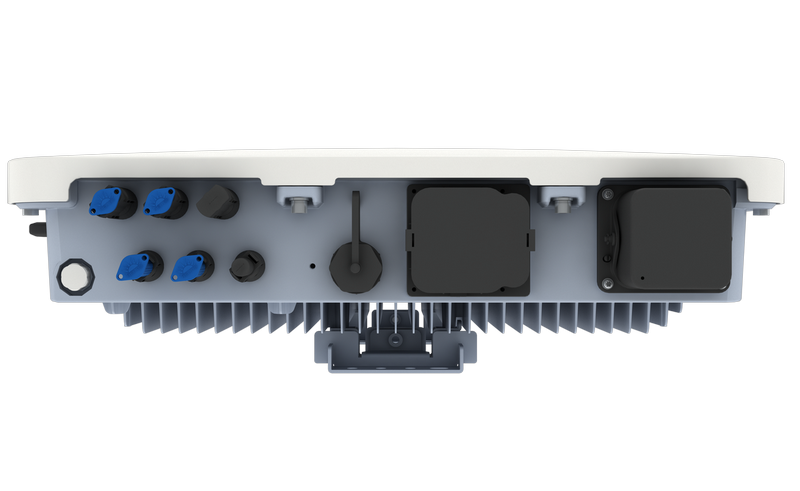

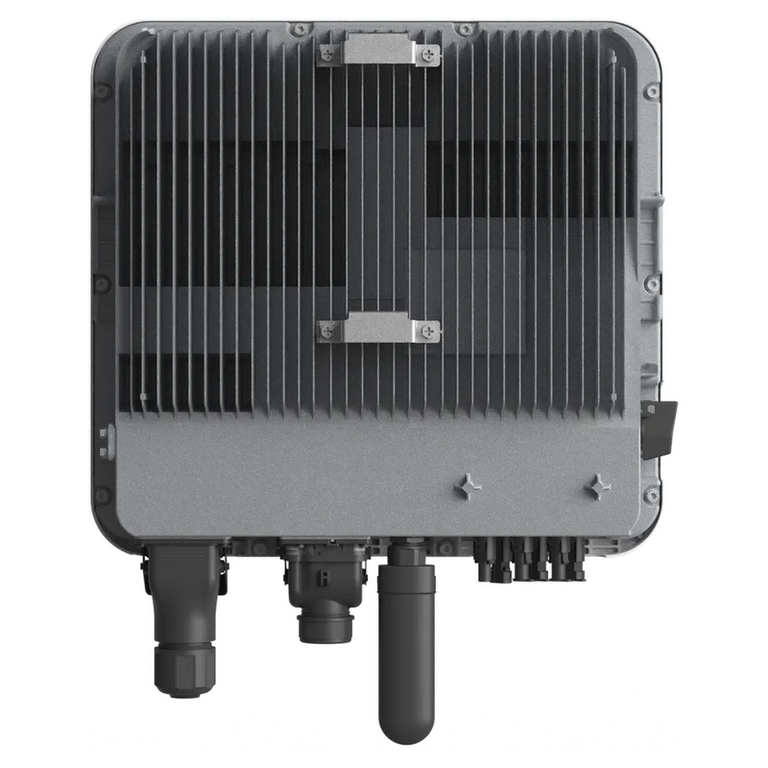

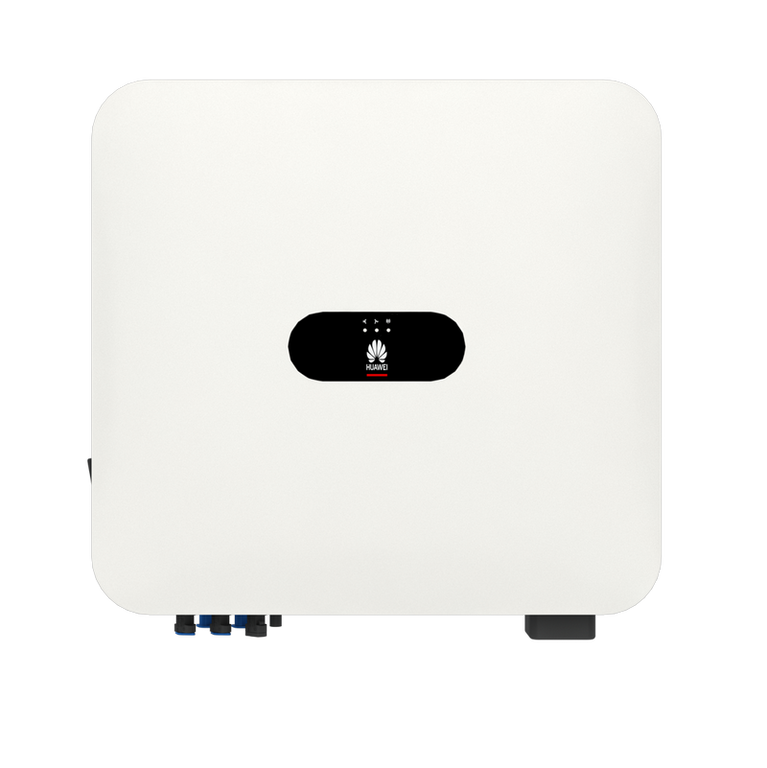

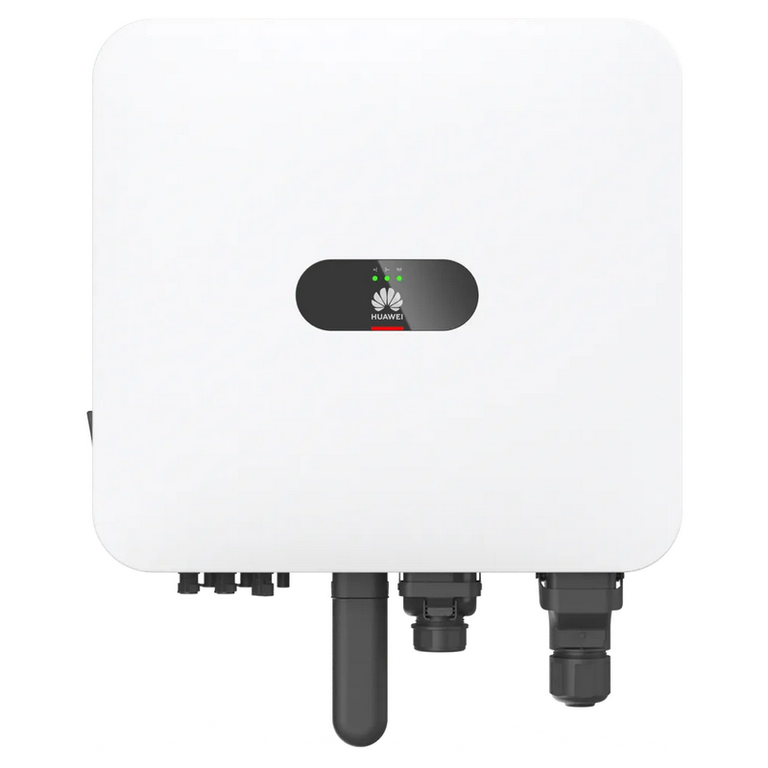

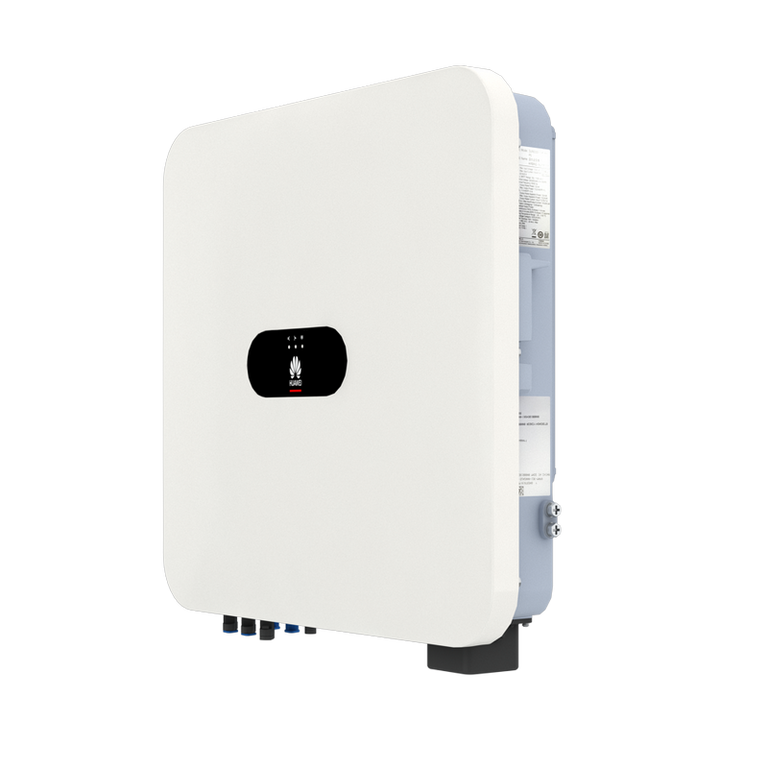

HUAWEI SUN2000-12K-MAP0 hybrid inverter
The HUAWEI SUN2000-12K-MAP0 is a 12 kW three-phase smart energy controller (Smart Energy Controller), designed for use with LUNA S0/S1 photovoltaic and energy storage systems. The device combines high efficiency with extensive security and communication functions.
- Three-phase hybrid inverter with on-grid and off-grid operation functions
- Maximum PV power: 22,000 Wp
- Huawei LUNA2000-S0/S1 energy storage support
- IP66 protection and natural cooling
- Built-in protection of AFCI, RSD, connector temperature detection
Product description
HUAWEI SUN2000-12K-MAP0 inverter is designed for modern photovoltaic systems in homes and businesses. With its high efficiency (up to 98.6%) and full compatibility with LUNA2000 energy storage, it allows efficient energy management and full utilization of PV production. It supports emergency power mode with SmartGuard-63A-T0, ensuring continuous operation of the system.
Key features
- 200% overload and three-phase asymmetrical output
- Active safety: AFCI, RSD and connector temperature detection
- Full compatibility with SUN2000-450W-P2 and 600W-P optimizers
- Communication: RS485, WLAN, Ethernet or 4G via Smart Dongle
- High environmental resistance - operation from -25 °C to +60 °C
Technical data
| Parameter | Value |
|---|---|
| Model | SUN2000-12K-MAP0 |
| Maximum efficiency | 98,6 % |
| European efficiency | 98,2 % |
| Recommended max. PV power | 22,000 Wp |
| Max. dc input voltage | 1100 V |
| Operating voltage range | 160 - 1000 V |
| Starting voltage | 160 V |
| Rated DC voltage | 600 V |
| Max. input current MPPT | 16 A |
| Max. short-circuit current | 22 A |
| Number of MPPT | 2 |
| Compatible energy storage | LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
| Battery voltage range | 600 - 980 V |
| Max. battery current | 20 A |
| Max. charging power | 12 000 W |
| Max. discharge power | 12 000 W |
| Network type | Three-phase |
| Rated AC power | 12 000 W |
| Max. apparent power | 13,200 VA |
| AC output voltage | 220/380 V, 230/400 V, 240/415 V |
| Max. output current | 20,2 A |
| Power factor range | 0.8 (inductive - capacitive) |
| THD harmonic distortion | ≤ 3 % |
| Cooling mode | Natural convection |
| Noise level | ≤ 29 dB |
| Dimensions (with handles) | 490 × 460 × 130 mm |
| Weight | 21 kg |
| Degree of protection | IP66 |
| Operating temperature | -25 °C ... +60 °C |
| Relative humidity | 0 - 100 % |
| Max. working altitude | 4000 m above sea level |
| Compatible optimizers | SUN2000-450W-P2, SUN2000-600W-P |
Technical data source:data sheet for model SUN2000-12K-MAP0 Link
FAQ - Frequently Asked Questions
- Does the SUN2000-12K-MAP0 inverter work with energy storage? Yes, it is fully compatible with LUNA2000-S0 and S1.
- How many MPPT tracks does the device have? The inverter has two independent MPPT tracks.
- What is the maximum PV power output? Up to 22,000 Wp.
- What is the maximum DC input voltage? 1100 V.
- Does the device have AFCI arcing protection? Yes, along with RSD and connector temperature detection.
- Can it operate in emergency (off-grid) mode? Yes, with the SmartGuard-63A-T0 device.
- What are the dimensions of the inverter? 490 × 460 × 130 mm.
- What safety standards does it meet? EN/IEC62109-1, EN/IEC62109-2.
- What communication interfaces are available? RS485, WLAN, Ethernet, 4G (Smart Dongle).
- What is the cooling of the device? Natural convection - no fans.
- Is it weatherproof? Yes, IP66.
- What is the operating noise level? ≤ 29 dB.
- What is the maximum installation altitude? Up to 4,000 meters above sea level.
- Does it support asymmetrical three-phase load? Yes, up to 100% asymmetry.
- What are the electrical protections? AC/DC, overvoltage, overcurrent, overvoltage and arc protection.
The HUAWEI SUN2000-12K-MAP0 is a versatile new-generation inverter, providing high efficiency, safety and readiness for integration with energy storage systems. It is ideal for residential and commercial installations.
