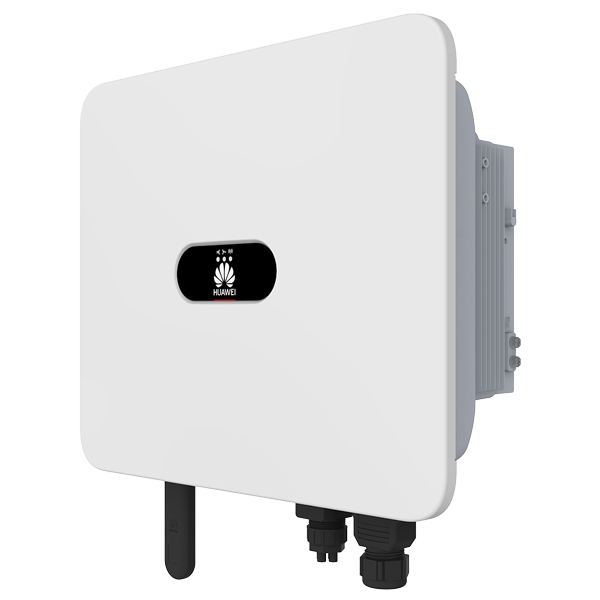

Huawei SUN2000-15K-MB0 Three-phase Hybrid Inverter
The Huawei SUN2000-15K-MB0 is an intelligent three-phase hybrid inverter designed for medium-power photovoltaic installations. The device offers high energy efficiency, LUNA2000 energy storage support and a full set of protections, including AFCI protection and Type II surge protectors. By integrating with power optimizers and pLatform FusionSolar, it ensures maximum energy yield and safe expLoatation of the PV system.
- Maximum efficiency of 98.4%
- Compatibility with Huawei LUNA2000-S0 energy storage units
- Active protection against electric arc (AFCI)
- Support for SUN2000-450W-P2 and 600W-P optimizers
- IP66 degree of protection
Product description
The Huawei SUN2000-15K-MB0 inverter is part of the state-of-the-art MB0 series of hybrid inverters that combine power conversion, energy storage management and system protection functions in a single unit. Thanks to built-in WLAN communication and compatibility with apLication of FusionSolar, the user has a full view of the system's operating parameters. The inverter supports two independent MPPT circuits, allowing efficient management of energy from PV panels under different solar conditions.
Efficiency and safety
The device achieves a maximum efficiency of 98.4% and a European efficiency of 98.0%. The protection system includes Type II surge protectors on the DC and AC sides, overcurrent and short-circuit protection, DC reverse polarity protection and intelligent insulation resistance detection. IP66 protection and air cooling ensure reliable operation in a wide range of environmental conditions.
Technical data
| Efficiency | |
|---|---|
| Maximum efficiency | 98,4% |
| Weighted European efficiency | 98,0% |
| DC input | |
| Recommended max. PV power | 22,500 Wp |
| Maximum input voltage | 1100 V |
| Maximum input current (MPPT) | 30 A (two chains) / 20 A (single chain) |
| Maximum short circuit current | 40 A |
| Starting voltage | 200 V |
| MPPT operating voltage range | 200 V - 1000 V |
| MPPT full load voltage range | 410 V - 800 V |
| Rated input voltage | 600 V |
| Number of MPPT | 2 |
| Maximum number of PV inputs | 4 |
| Energy storage system (ESS) | |
| Compatible energy storage | LUNA2000-5/10/15-S0 |
| Number of battery connectors | 2 |
| Maximum charging power | 25 kW |
| Maximum discharge power | 16.5 kW |
| Maximum operating current | 26.25 A (per chain) |
| Operating voltage range | 600 V - 980 V |
| AC output | |
| Rated output power | 15 000 W |
| Maximum apparent power | 16,500 VA |
| Rated output voltage | 220/380 V, 230/400 V, 240/415 V; 3W + N + PE |
| Rated output current | 22.8 A / 380 V; 21.7 A / 400 V; 20.9 A / 415 V |
| Maximum output current | 25.2 A / 380 V; 23.9 A / 400 V; 23.1 A / 415 V |
| Network frequency | 50 Hz / 60 Hz |
| Power factor | 0.8 leading - 0.8 lagging |
| Total harmonic distortion | ≤3% |
| Protection | |
| PV / AC overvoltage category | PV II / AC III |
| Protection against islanding operation | Yes |
| AC overcurrent protection | Yes |
| DC reverse polarity protection | Yes |
| DC surge protector | Type II |
| AC surge protector | Type II (according to EN/IEC 61643-11) |
| DC insulation resistance detection | Yes |
| Leakage current monitoring unit | Yes |
| Arc protection | Yes (AFCI) |
| General data | |
| Operating temperature range | -25°C ~ +60°C |
| Relative humidity | 0% ~ 100% |
| Maximum working altitude | 4000 m (reduction above 2000 m) |
| Cooling | By air |
| Display | LED indicators, WLAN + apLication FusionSolar |
| Communication | RS485, WLAN / Ethernet (Smart Dongle), 4G / 3G / 2G (optional), EMMA |
| Dimensions (W × H × D) | 546 × 460 × 228 mm |
| Weight | 21 kg |
| Degree of protection | IP66 |
| Max. number of units connected in parallel | 3 |
| Compatible optimizers | SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P |
Technical data source:data sheet for model SUN2000-15K-MB0 Link
FAQ
- What is the efficiency of the inverter? Maximum 98.4%, European 98.0%.
- What is the output power? 15,000 W (rated), 16,500 VA (apparent).
- Does it support energy storage? Yes, with LUNA2000-S0 storage.
- How many MPPTs does it have? 2 independent MPPT paths.
- What is the MPPT voltage? From 200 volts to 1,000 volts.
- Does it have AFCI protection? Yes, active arc protection.
- What are the compatible optimizers? SUN2000-450W-P2, 600W-P, MERC-1100W-P, MERC-1300W-P.
- What are the dimensions and weight? 546 × 460 × 228 mm, 21 kg.
- What is the cooling? By air, without a fan.
- What is the IP protection? IP66.
- Can inverters be connected in parallel? Yes, up to three units.
- Does it have an integrated WLAN module? Yes, integrated.
- Does it support 4G? Yes, via the Smart Dongle-4G.
- Does it have Type II protectors? Yes, on the DC and AC side.
- What standards does it meet? EN/IEC62109, VDE4105, CEI 0-21, EN50549, IEC62116.
Summary
The Huawei SUN2000-15K-MB0 is a reliable 15 kW three-phase hybrid inverter, providing high efficiency and safety. With its integration with energy storage, optimizers and pLatform FusionSolar, it provides a compLm ethical solution for commercial and residential mid-power PV installations.
