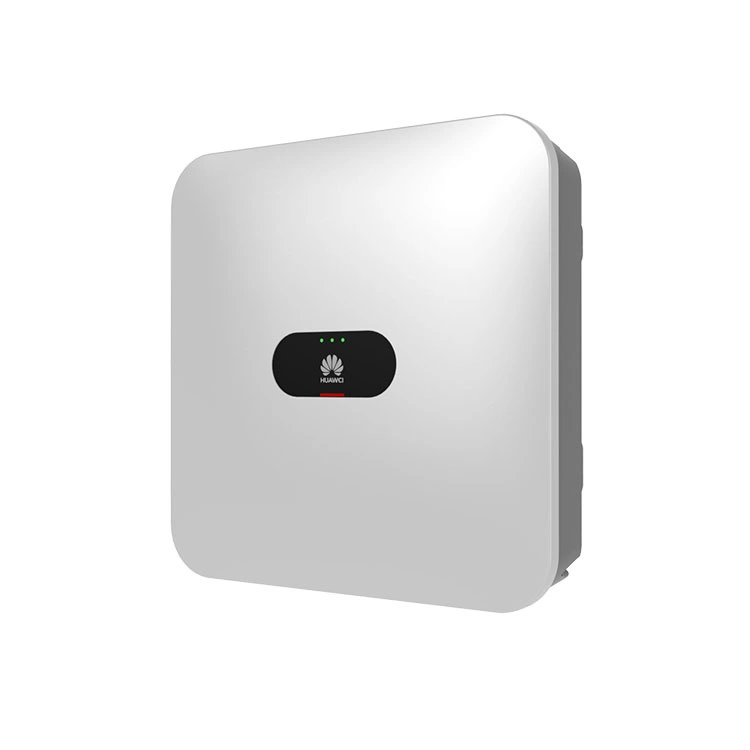

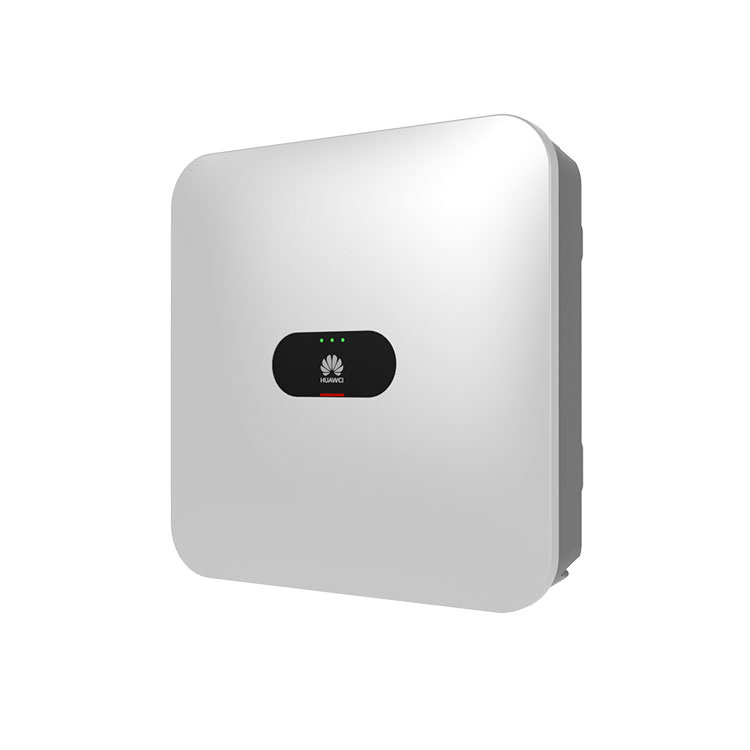

Huawei SUN2000-15KTL-M2 three-phase grid-tied photovoltaic inverter IP65 AFCI efficiency 98.65%
- Three-phase grid inverter for PV power conversion, AC rated power 15,000 W, maximum efficiency 98.65%, MPPT voltage range 160-950 V.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Huawei SUN2000-15KTL-M2 Three-phase Grid Inverter
The Huawei SUN2000-15KTL-M2 is a new-generation intelligent three-phase grid inverter designed for commercial and industrial installations. The device offers high power conversion efficiency, a number of protections, and the ability to work with Huawei power optimizers to ensure maximum energy yield and safety ekspLoatation.
- Maximum efficiency of 98.65%
- Active protection against electric arc (AFCI)
- Support for WLAN, Fast Ethernet and 4G communications
- Integrated PID Recovery function
- IP65 degree of protection
Product description
The Huawei SUN2000-15KTL-M2 inverter combines modern design, compact construction and advanced energy management technology. The device uses artificial intelligence to detect and eliminate arcing, which increases the safety level of the PV system. With support for Huawei SUN2000-450W-P power optimizers, it is possible to increase energy yield by up to 30%. Integrated WLAN communication and optional Ethernet and 4G modules enable convenient monitoring of operation via apLication of FusionSolar.
Efficiency and safety
The inverter achieves a maximum efficiency of 98.65% and a European efficiency of 98.3%, providing exceptional energy efficiency. It has a compLeks set of protections: Type II surge protection on the DC and AC side, overcurrent, short-circuit and reverse polarity protection. In addition, it is equipped with the PID Recovery function, which minimizes the degradation of photovoltaic modules. The IP65 degree of protection guarantees resistance to dust and moisture, and convection cooling ensures quiet and reliable operation.
Technical data
| Efficiency | |
|---|---|
| Maximum efficiency | 98,65% |
| European efficiency | 98,30% |
| Input (DC) | |
| Recommended maximum PV power | 22,500 Wp |
| Maximum input voltage | 1080 V |
| Operating voltage range | 160 V - 950 V |
| Starting voltage | 200 V |
| Rated input voltage | 600 V |
| Maximum operating current MPPT | 27 A |
| Maximum short-circuit current MPPT | 39 A |
| Number of MPPT | 2 |
| Maximum number of MPPT inputs | 4 |
| Output (AC) | |
| Connection type | Three-phase |
| Rated output power | 15 000 W |
| Maximum apparent power | 16,500 VA |
| Rated output voltage | 220/380 V, 230/400 V, 3W + N + PE |
| Network frequency | 50 Hz / 60 Hz |
| Maximum output current | 25,2 A |
| Power factor | 0.8 advance - 0.8 delayed |
| Total harmonic distortion (THD) | ≤3% |
| Protection | |
| Protection against islanding operation | Yes |
| AC overcurrent protection | Yes |
| AC short circuit protection | Yes |
| DC surge protection | Type II |
| AC surge protection | Type II according to EN/IEC 61643-11 |
| DC reverse polarity protection | Yes |
| Leakage current monitoring unit | Yes |
| Active AFCI protection | Yes |
| Integrated PID Recovery function | Yes |
| General information | |
| Operating temperature range | -25°C ~ +60°C |
| Relative humidity | 0% - 100% |
| Maximum working altitude | 4000 m (reduction above 2000 m) |
| Cooling | Natural convection |
| Display | LED + WLAN + apLication FusionSolar |
| Communication | RS485, ModbusRTU (SunSpec), Smart Dongle WLAN-FE, Smart Dongle-4G (optional) |
| Dimensions (with mounting bracket) | 525 × 470 × 262 mm |
| Weight | 25 kg |
| Degree of protection | IP65 |
| Power consumption at night | <5,5 W |
| Compatible optimizers | SUN2000-450W-P |
Technical data source:data sheet for model SUN2000-15KTL-M2 Link
FAQ
- What is the efficiency of the inverter? Maximum 98.65%, European 98.3%.
- What is the output power? 15,000 W of rated active power.
- How many MPPTs does the device have? 2 independent power tracking paths.
- What is the MPPT voltage range? 160-950 V.
- Does the inverter have arc protection? Yes, active AFCI protection supported by AI.
- Does it have a PID Recovery function? Yes, for regeneration of P-type PV modules.
- What is the cooling of the device? Natural convection - no fan.
- What are the dimensions and weight? 525 × 470 × 262 mm, 25 kg.
- What is the degree of protection? IP65 - high resistance to dust and water.
- What standards does it meet? EN/IEC62109, CEI 0-21, VDE-AR-N-4105, EN50549, IEC62116.
- Can the inverter be monitored remotely? Yes, through apLication of FusionSolar and Smart Dongle module.
Summary
The Huawei SUN2000-15KTL-M2 is a 15 kW three-phase grid-tied inverter that combines high efficiency, safety and smart features. Integrated communications, AFCI protection and PID Recovery function make it a reliable solution for modern PV installations in the commercial sector.
