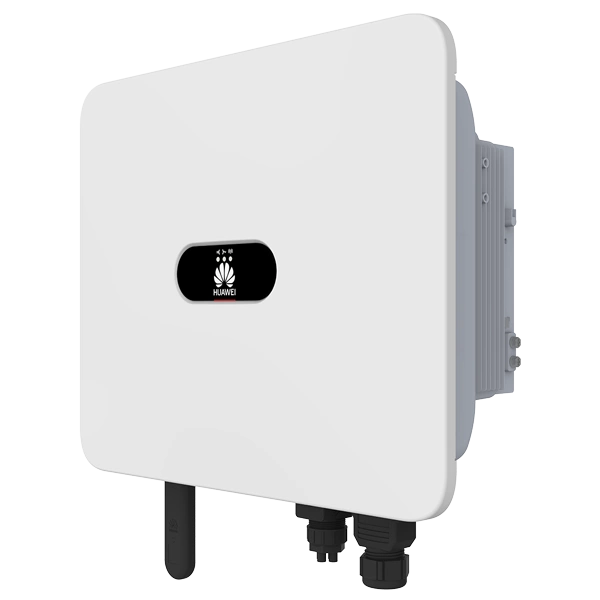

Huawei SUN2000-17K-MB0 three-phase on-grid ESS IP66 17 kW 2 MPPT photovoltaic hybrid inverter
- Three-phase hybrid inverter for photovoltaic installations with LUNA2000 energy storage; 17,000 W AC output power.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Huawei SUN2000-17K-MB0 Three-phase Hybrid Inverter
Huawei SUN2000-17K-MB0 is an advanced three-phase hybrid inverter designed for medium-power photovoltaic installations. It combines high energy efficiency, safe operation and the ability to integrate with Huawei LUNA2000 energy storage. With AFCI technology and power optimizer support, it provides maximum energy yield and long-term system reliability.
- Maximum efficiency of 98.4%
- Cooperation with LUNA2000-S0 energy storage
- Support up to 30% higher yields with Huawei optimizers
- Active protection against electric arc (AFCI)
- IP66 protection and air cooling
Product description
The Huawei SUN2000-17K-MB0 inverter is part of a new generation of smart hybrid inverters designed for commercial installations and large home systems. The unit features two independent MPPT and dual battery connectors, allowing it to work with LUNA2000 energy storage. An integrated WLAN module and apLication of FusionSolar allow remote monitoring, while active arc fault protection (AFCI) significantly improves the safety of PV installations.
Efficiency and safety
The inverter achieves a maximum efficiency of 98.4% and a European efficiency of 98.1%, which guarantees very high operating efficiency. It has an extensive set of protections, including DC insulation resistance detection, AC overcurrent protection, Type II surge protectors on the DC and AC sides, and leakage current monitoring. The device is designed to operate in harsh weather conditions with full IP66 protection.
Technical data
| Efficiency | |
|---|---|
| Maximum efficiency | 98,4% |
| Weighted European efficiency | 98,1% |
| DC input | |
| Recommended max. PV power | 22,500 Wp |
| Maximum input voltage | 1100 V |
| Maximum input current (MPPT) | 30 A (two chains) / 20 A (single chain) |
| Maximum short circuit current | 40 A |
| Starting voltage | 200 V |
| MPPT operating voltage range | 200 V - 1000 V |
| MPPT full load voltage range | 410 V - 800 V |
| Rated input voltage | 600 V |
| Number of MPPT | 2 |
| Maximum number of PV inputs | 4 |
| Energy storage system (ESS) | |
| Compatible energy storage | LUNA2000-5/10/15-S0 |
| Number of battery connectors | 2 |
| Maximum charging power | 25 kW |
| Maximum discharge power | 18.7 kW |
| Maximum operating current | 26.25 A (per chain) |
| Operating voltage range | 600 V - 980 V |
| AC output | |
| Rated output power | 17 000 W |
| Maximum apparent power | 18,700 VA |
| Rated output voltage | 220/380 V, 230/400 V, 240/415 V; 3W + N + PE |
| Rated output current | 25.8 A / 380 V; 24.5 A / 400 V; 23.7 A / 415 V |
| Maximum output current | 28.6 A / 380 V; 27.1 A / 400 V; 26.1 A / 415 V |
| Network frequency | 50 Hz / 60 Hz |
| Power factor | 0.8 leading - 0.8 lagging |
| Total harmonic distortion | ≤3% |
| Protection | |
| PV / AC overvoltage category | PV II / AC III |
| Protection against islanding operation | Yes |
| AC overcurrent protection | Yes |
| DC reverse polarity protection | Yes |
| DC surge protector | Type II |
| AC surge protector | Type II (according to EN/IEC 61643-11) |
| DC insulation resistance detection | Yes |
| Leakage current monitoring unit | Yes |
| Arc protection | Yes (AFCI) |
| General data | |
| Operating temperature range | -25°C ~ +60°C |
| Relative humidity | 0% ~ 100% |
| Maximum operating altitude | 4000 m (power reduction above 2000 m) |
| Cooling | By air |
| Display | LED + apLication FusionSolar |
| Communication | RS485, WLAN, Ethernet (Smart Dongle), 4G/3G/2G (optional), EMMA |
| Dimensions (W × H × D) | 546 × 460 × 228 mm |
| Weight | 21 kg |
| Degree of protection | IP66 |
| Max. number of units connected in parallel | 3 |
| Compatible optimizers | SUN2000-450W-P2, SUN2000-600W-P, MERC-1100W-P, MERC-1300W-P |
Technical data source:data sheet for model SUN2000-17K-MB0 Link
FAQ
- What is the efficiency of the inverter? Maximum 98.4%, European 98.1%.
- What is the output power? 17,000 W (rated), 18,700 VA (apparent).
- Does it support energy storage? Yes, with the LUNA2000-S0.
- How many MPPTs does it have? 2 independent power tracking paths.
- What is the MPPT voltage? From 200 V to 1,000 V.
- Does it have AFCI protection? Yes, active arc protection.
- What are the compatible optimizers? SUN2000-450W-P2, 600W-P, MERC-1100W-P, MERC-1300W-P.
- What is the cooling? By air, without fans.
- What is the weight and dimensions? 21 kg, 546 × 460 × 228 mm.
- What is the IP protection? IP66 - full resistance to dust and water.
- Can the inverters be connected in parallel? Yes, up to three units.
- What are the protections? AC overcurrent, Type II surge protection, DC insulation, AFCI.
- Does it have a built-in Wi-Fi module? Yes, integrated WLAN.
- Does it support 4G communications? Yes, with a Smart Dongle-4G module.
Summary
The Huawei SUN2000-17K-MB0 is a high-performance three-phase inverter with energy storage support and a wide range of safety features. With integration with Huawei LUNA2000 and FusionSolar systems, it provides a compLeks solution for modern PV installations providing reliability, efficiency and flexibility.
