Huawei SUN2000-17KTL-M5 three-phase photovoltaic inverter AFCI grid inverter 98.4% efficiency
- Three-phase grid inverter for photovoltaic installations, converts DC power to AC power, rated output power of 17,000 watts.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

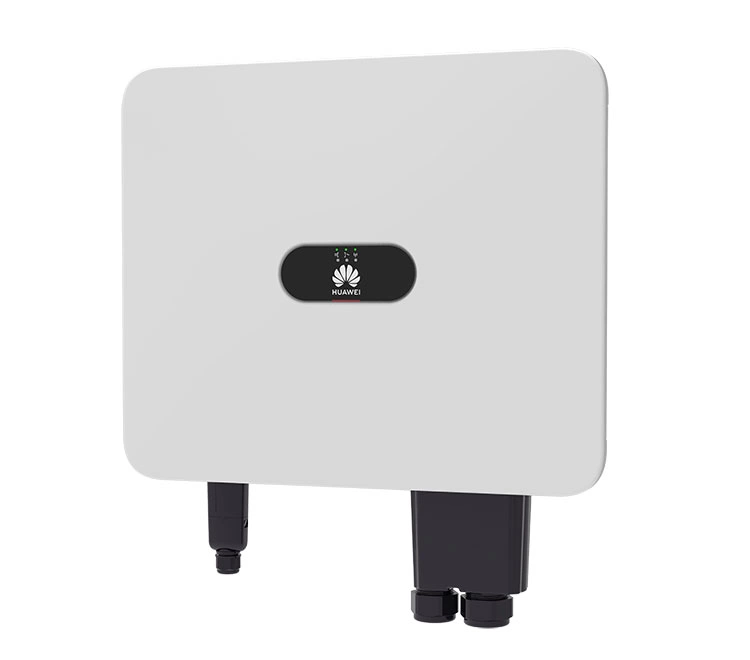

Huawei SUN2000-17KTL-M5 Three-phase Grid Inverter
The Huawei SUN2000-17KTL-M5 is a state-of-the-art three-phase inverter designed for commercial and industrial photovoltaic installations. The device combines the highest energy conversion efficiency, active safety features and the ability to integrate with Huawei power optimizers, ensuring maximum energy yield under all conditions.
- Maximum efficiency of 98.4%
- Arc protection (AFCI)
- Support for WLAN, Ethernet, 4G communications
- Compatible with SUN2000-450W/600W/1100W/1300W-P optimizers
- IP66 degree of protection
Product Description
Huawei's SUN2000-17KTL-M5 inverter belongs to a series of next-generation intelligent devices that use artificial intelligence technology to enhance safety and operational efficiency. With arc detection and prevention (AFCI) and integrated communications (WLAN, Ethernet, 4G), the device provides full control and safety of the PV system. Working with Huawei optimizers, up to 30% more energy can be obtained compared to traditional installations.
Efficiency and safety
The device offers a maximum efficiency of 98.4% and a European efficiency of 98.1%, guaranteeing the highest level of performance in its class. An integrated PID countermeasure function prevents the degradation of photovoltaic modules, extending their life. An air-cooling system and IP66 rating enable reliable operation in harsh environments. Built-in protections include Type II surge protectors on the DC and AC sides and a leakage current monitoring unit (RCMU).
Technical data
| Efficiency | |
|---|---|
| Maximum efficiency | 98,4% |
| Weighted European efficiency | 98,1% |
| Input (DC) | |
| Recommended maximum PV power | 25,500 Wp |
| Maximum input voltage | 1100 V |
| MPPT voltage range at full load | 440 V - 800 V |
| MPPT operating voltage range | 200 V - 1000 V |
| Starting voltage | 200 V |
| Rated input voltage | 600 V |
| Maximum input current for MPPT | 30 A (two chains) / 20 A (one chain) |
| Maximum short circuit current | 40 A |
| Number of MPPT | 2 |
| Maximum number of PV inputs | 4 |
| Output (AC) | |
| Connection type | Three-phase |
| Rated output power | 17 000 W |
| Maximum apparent power | 18,700 VA |
| Rated output voltage | 220/380 V, 230/400 V, 239.6/415 V (3W + N + PE) |
| Rated mains frequency | 50 Hz / 60 Hz |
| Maximum output current | 28.6 A / 380 V; 27.1 A / 400 V; 26.1 A / 415 V |
| Adjustable power factor | 0.8 leading - 0.8 lagging |
| Total harmonic distortion | ≤3% |
| Protection | |
| PV / AC overvoltage category | PV II / AC III |
| Input side disconnect device | Yes |
| Protection against island operation | Yes |
| AC overcurrent protection | Yes |
| DC reverse polarity protection | Yes |
| Chain fault detection | Yes |
| DC surge protection | Type II |
| AC surge protection | Type II |
| Leakage current monitoring unit (RCMU) | Yes |
| Arc fault protection (AFCI) | Yes |
| Integrated PID countermeasure function | Yes |
| General information | |
| Operating temperature range | -25°C ~ +60°C |
| Relative humidity | 0% ~ 100% |
| Maximum altitude. | 0 - 4000 m (reduction above 2000 m) |
| Cooling | Air cooling |
| Display | LED indicators; integrated WLAN + apLication of FusionSolar |
| Communication | RS485; WLAN/Ethernet via Smart Dongle; 4G via Smart Dongle-4G (optional) |
| Dimensions (W × H × D) | 546 × 460 × 228 mm |
| Weight | 21 kg |
| Degree of protection | IP66 |
| Compatibility with optimizers | |
| Models | SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P, SUN2000-1100W-P, SUN2000-1300W-P |
Technical data source:data sheet for model SUN2000-17KTL-M5 Link
FAQ
- What is the efficiency of the inverter? Maximum 98.4%, European 98.1%.
- What is the output power? 17,000 watts of rated active power.
- How many MPPTs does the device have? 2 independent power tracking circuits.
- What is the MPPT voltage range? From 200 V to 1,000 V.
- Does the inverter have arc protection? Yes, built-in AI-assisted AFCI protection.
- Is the inverter dust and water resistant? Yes, IP66 protection rating.
- Does it support 4G communication? Yes, through the Smart Dongle-4G.
- What are the compatible optimizers? SUN2000-450W-P/P2, 600W-P, 1100W-P, 1300W-P.
- Does it have PID protection? Yes, integrated PID countermeasure function.
- What are the dimensions and weight? 546 × 460 × 228 mm, 21 kg.
- What standards does it meet? EN/IEC62109-1/-2, G99, VDE-AR-N-4105/4110, CEI 0-21/0-16, EN50549, IEC61727.
Summary
The Huawei SUN2000-17KTL-M5 is a high-performance new-generation three-phase inverter designed for medium- and high-power photovoltaic systems. It combines advanced safety features, high energy efficiency and full compatibility with Huawei optimizers to guarantee reliability, safety and maximum energy yield.
