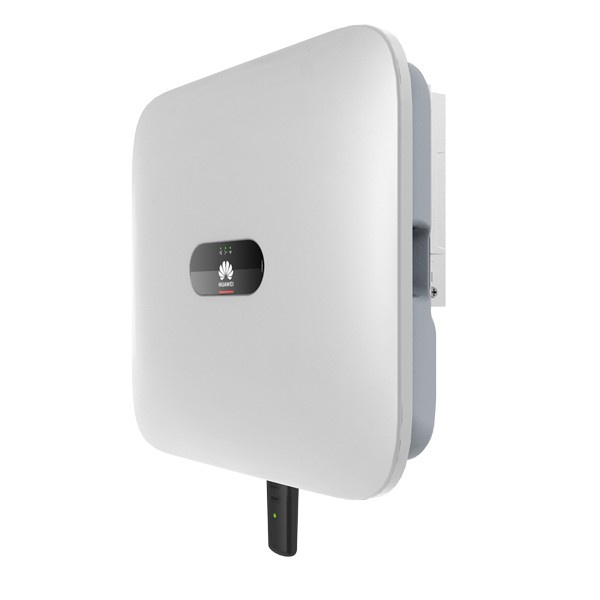

Huawei SUN2000-4KTL-M1-HC three-phase hybrid photovoltaic inverter High Current 4 kW 98.3% IP65
- Three-phase hybrid inverter for photovoltaic installations, works with Huawei LUNA2000 energy storage, AC rated power of 4,000 watts.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

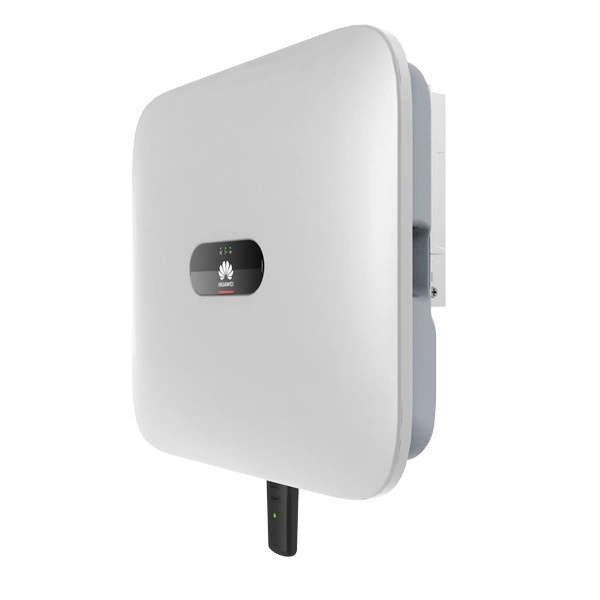

HUAWEI SUN2000-4KTL-M1-HC hybrid inverter
HUAWEI SUN2000-4KTL-M1-HC is a 4 kW three-phase hybrid inverter designed for small and medium-sized photovoltaic installations. The HC (High Current) version allows it to work with modern PV modules with high current, ensuring maximum efficiency and safety of system operation.
- AC rated power: 4,000 W
- Maximum PV power: 6,000 Wp
- Maximum efficiency: 98.3%
- Two independent MPPT circuits (13.5 A / 19.5 A)
- IP65 rating and natural cooling
Product description
The HUAWEI SUN2000-4KTL-M1-HC inverter combines a compact design with the latest developments in photovoltaics. The unit offers active AFCI arcing protection, built-in remote shutdown (RSD) function and connector temperature detection. Compatibility with Huawei LUNA2000 energy storage provides flexible energy management - surplus storage, backup power and enhanced self-consumption.
Key features
- High Current version - support for panels with high operating current
- High energy efficiency - up to 98.3%
- Built-in protections: AFCI, RSD, temperature detection
- Compatibility with LUNA2000 energy storage units
- Communication via RS485, WLAN, Ethernet, 4G (Smart Dongle)
Technical data
| Parameter | Value |
|---|---|
| Model | SUN2000-4KTL-M1-HC |
| Maximum efficiency | 98,3 % |
| European efficiency | 97,3 % |
| Recommended max PV power | 6,000 Wp |
| Max. dc input voltage | 1100 V |
| MPPT operating voltage range | 140 - 980 V |
| Starting voltage | 200 V |
| Rated DC voltage | 600 V |
| Max. input current MPPT | 13,5 A |
| Max. short-circuit current | 19,5 A |
| Number of MPPT | 2 |
| Compatible energy storage | Huawei LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
| Battery voltage range | 600 - 980 V |
| Max. battery current | 20 A |
| Max. charging power | 10 000 W |
| Max. discharge power | 4 400 W |
| Network type | Three-phase |
| AC rated power | 4 000 W |
| Max. apparent power | 4,400 VA |
| AC output voltage | 220/380 V, 230/400 V, 240/415 V |
| Max. output current | 6,7 A |
| Power factor | 0.8 inductive - 0.8 capacitive |
| THD (harmonic distortion) | ≤ 3 % |
| Operating temperature range | -25 °C ... +60 °C |
| Cooling | Natural convection |
| Degree of protection | IP65 |
| Noise level | ≤ 29 dB |
| Dimensions (with handles) | 525 × 470 × 166 mm |
| Weight | approx. 17 kg |
| Compatible optimizers | SUN2000-450W-P2 / 600W-P |
Technical data source:data sheet of SUN2000-4KTL-M1-HC model Link
FAQ - Frequently Asked Questions
- Does the SUN2000-4KTL-M1-HC inverter work with energy storage? Yes, it supports Huawei LUNA2000 energy storage.
- How many MPPT tracks does the device have? Two independent MPPT tracks.
- What is the maximum DC input voltage? 1100 V.
- What is the maximum current of the MPPT? 13,5 A.
- Does the device support failure mode? Yes, with the SmartGuard module.
- What kind of protection does the inverter have? AFCI, RSD, over-voltage, over-current, over-current and connector temperature detection.
- What are the dimensions of the inverter? 525 × 470 × 166 mm.
- What communication interfaces does it have? RS485, WLAN, Ethernet, 4G (Smart Dongle).
- What is the noise level? ≤ 29 dB.
- What are the compatible optimizers? SUN2000-450W-P2 and SUN2000-600W-P.
The HUAWEI SUN2000-4KTL-M1-HC inverter is a compact and efficient solution for PV systems, providing high efficiency, safety and configuration flexibility. It is ideal for modern home and small business installations.
