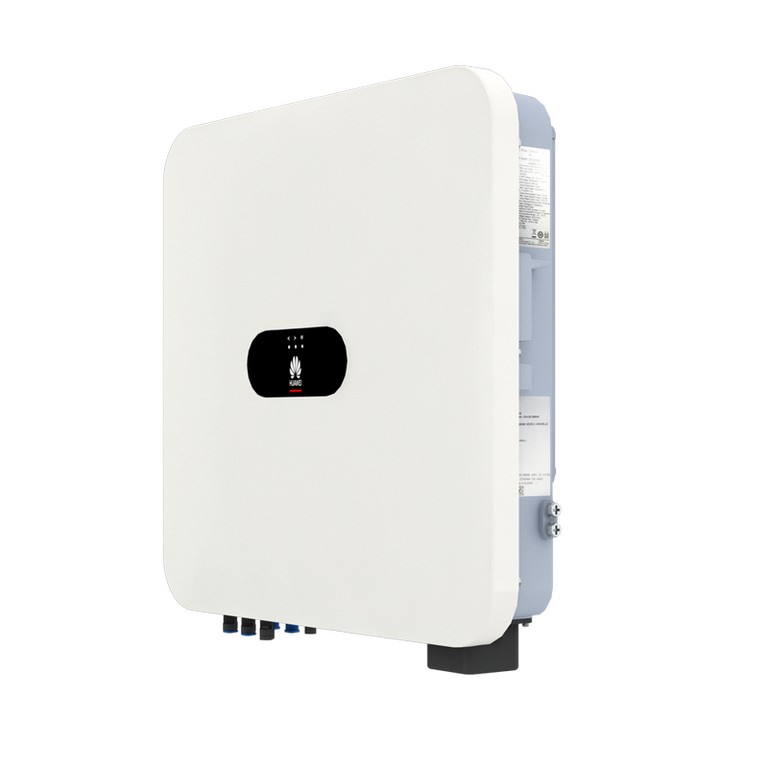

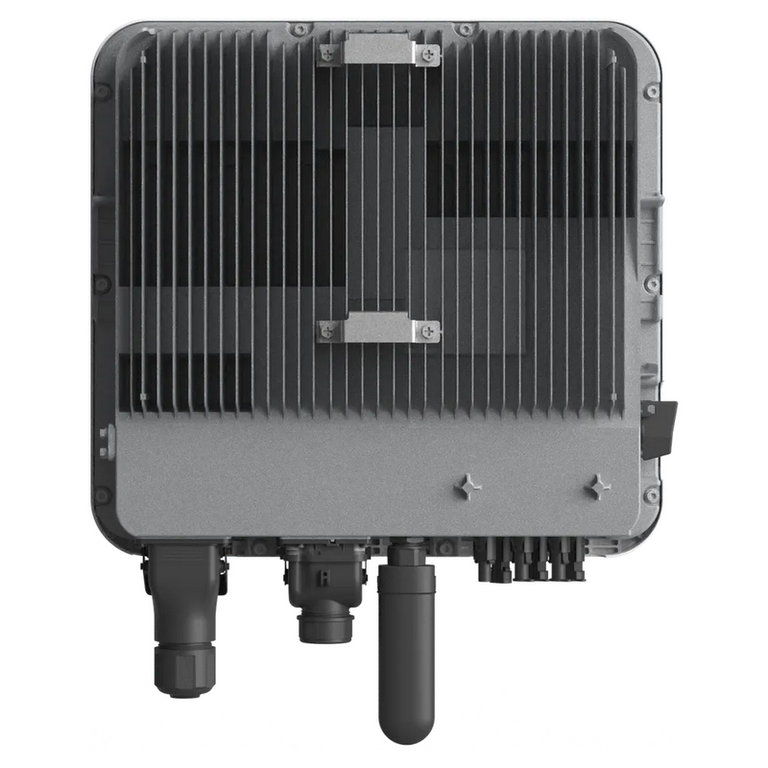

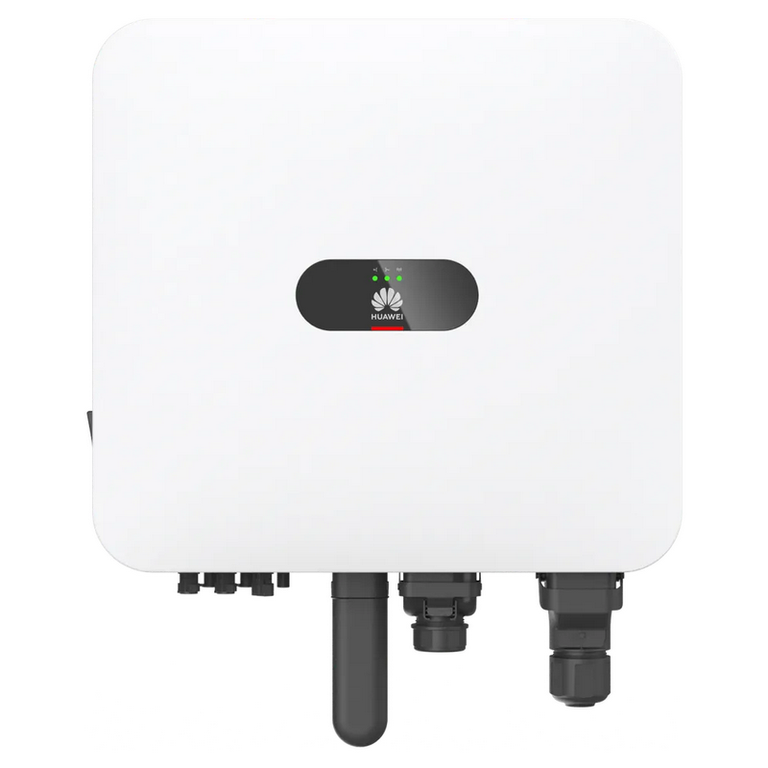

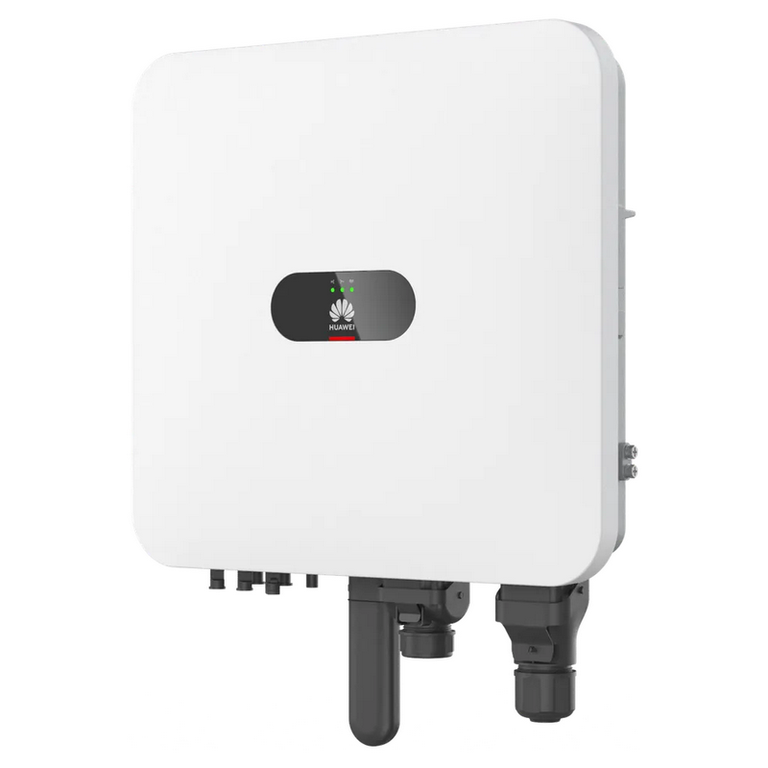

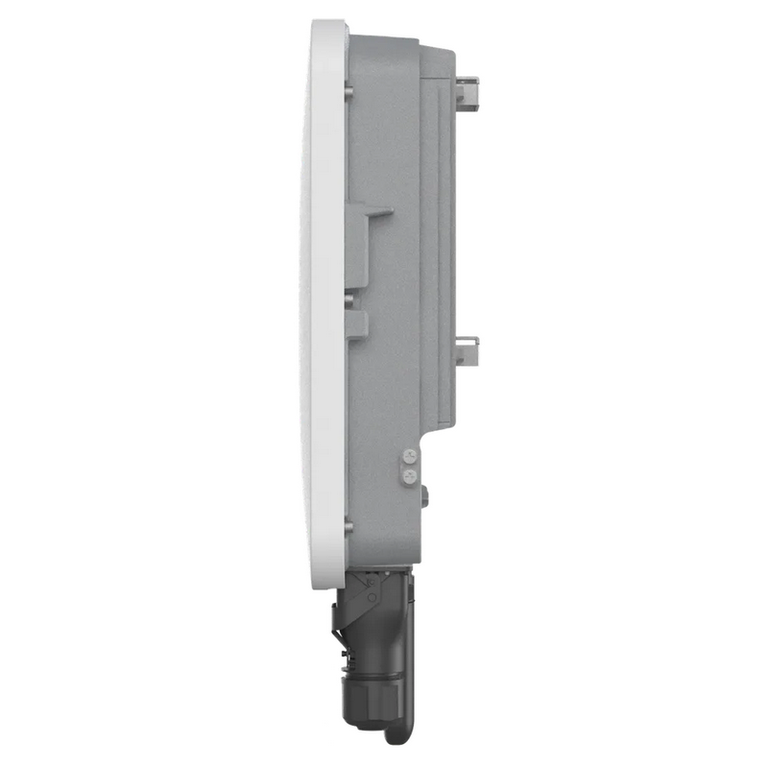

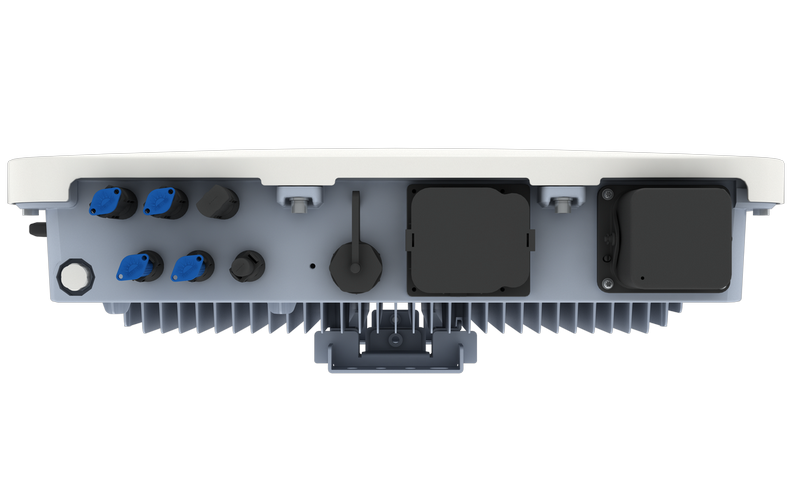

HUAWEI SUN2000-5K-MAP0 hybrid inverter
HUAWEI SUN2000-5K-MAP0 is a 5 kW three-phase hybrid inverter for modern photovoltaic installations with the possibility of integration with energy storage. The device combines high efficiency, full safety and HUAWEI FusionSolar smart energy management functionality.
- AC rated power: 5,000 watts
- Maximum PV power: 9,000 Wp
- High maximum efficiency: 98.4%
- Two independent MPPT circuits
- IP66 rating and quiet operation (≤ 29 dB)
Product description
The HUAWEI SUN2000-5K-MAP0 inverter is the smallest model in the Huawei Smart Energy Controller series. It offers excellent efficiency, safety and full compatibility with LUNA2000-S0 and LUNA2000-S1 energy storage. With AFCI, RSD and connector temperature detection functions, it provides the maximum level of installation protection. It also supports asymmetrical three-phase load and emergency power mode with SmartGuard-63A-T0.
Key features
- Active protections: AFCI, RSD, connector temperature detection
- Ability to operate in emergency mode (off-grid)
- Support for asymmetrical three-phase load
- Compatibility with SUN2000-450W-P2 and 600W-P optimizers
- Built-in RS485, WLAN, Ethernet and 4G (Smart Dongle) interfaces
Technical specifications
| Parameter | Value |
|---|---|
| Model | SUN2000-5K-MAP0 |
| Maximum efficiency | 98,4 % |
| European efficiency | 97,5 % |
| Recommended max PV power | 9,000 Wp |
| Max. dc input voltage | 1100 V |
| Operating voltage range | 160 - 1000 V |
| Starting voltage | 160 V |
| Rated DC voltage | 600 V |
| Max. input current MPPT | 16 A |
| Max. short-circuit current | 22 A |
| Number of MPPT | 2 |
| Compatible energy storage | LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
| Battery voltage range | 600 - 980 V |
| Max. battery current | 20 A |
| Max. charging power | 12 000 W |
| Max. discharge power | 5 500 W |
| Network type | Three-phase |
| AC rated power | 5 000 W |
| Max. apparent power | 5,500 VA |
| AC output voltage | 220/380 V, 230/400 V, 240/415 V |
| Max. output current | 8,3 A |
| Power factor | 0.8 inductive - 0.8 capacitive |
| THD harmonic distortion | ≤ 3 % |
| Cooling mode | Natural convection |
| Noise level | ≤ 29 dB |
| Dimensions (with handles) | 490 × 460 × 130 mm |
| Weight | 21 kg |
| Degree of protection | IP66 |
| Operating temperature | -25 °C ... +60 °C |
| Relative humidity | 0 - 100 % |
| Max. working altitude | 4000 m above sea level |
| Compatible optimizers | SUN2000-450W-P2, SUN2000-600W-P |
Technical data source:data sheet for model SUN2000-5K-MAP0 Link
FAQ - Frequently Asked Questions
- Does the SUN2000-5K-MAP0 inverter work with energy storage? Yes, it supports LUNA2000-S0 and LUNA2000-S1.
- How many MPPT tracks does the device have? Two independent MPPT tracks.
- What is the maximum DC input voltage? 1100 V.
- What are the protection features? AFCI, RSD, over-voltage, over-current, over-current and connector temperature detection protection.
- Can the inverter operate in emergency mode? Yes, with the SmartGuard-63A-T0 device.
- What are the dimensions of the inverter? 490 × 460 × 130 mm.
- What communication interfaces are available? RS485, WLAN, Ethernet, 4G (Smart Dongle).
- What is the noise level? ≤ 29 dB.
- What is the cooling of the device? Natural convection.
- What is the night loss? Less than 5.5 watts.
HUAWEI SUN2000-5K-MAP0 inverter is an efficient and safe solution for PV systems, enabling efficient energy management and cooperation with energy storage, with high efficiency and durability.
