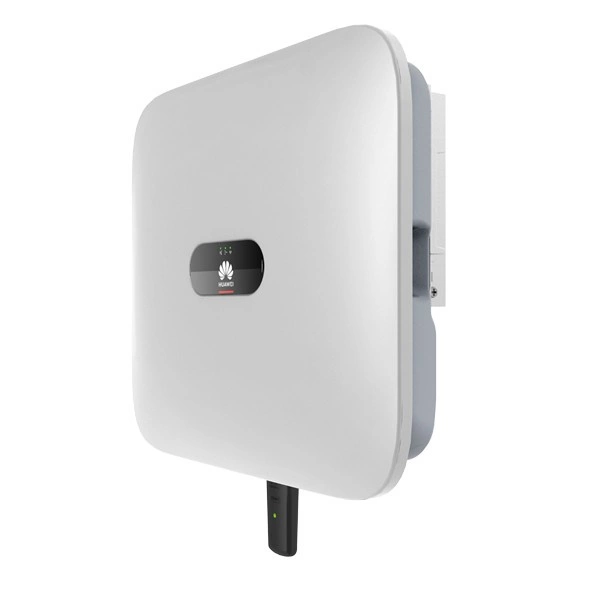

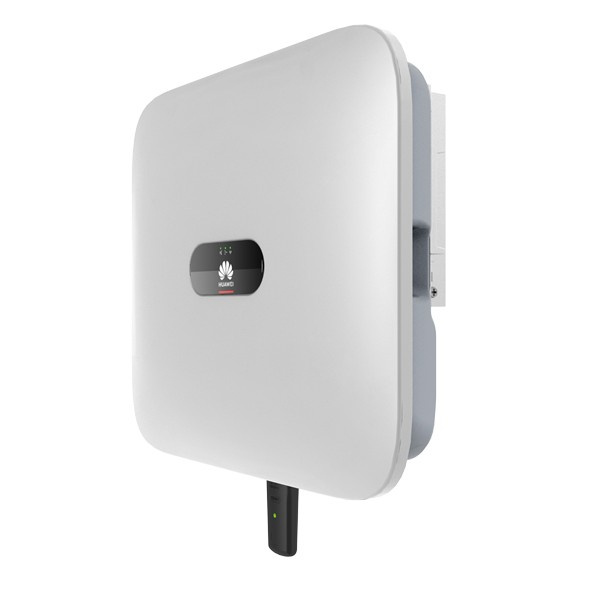

Huawei SUN2000-5KTL-M1-HC three-phase hybrid photovoltaic inverter High Current 5 kW 7500 Wp
- HUAWEI SUN2000-5KTL-M1-HC three-phase hybrid inverter for photovoltaic systems, suitable for high-current panels, rated AC power of 5000 W.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
HUAWEI SUN2000-5KTL-M1-HC hybrid inverter
The HUAWEI SUN2000-5KTL-M1-HC is a state-of-the-art 5 kW three-phase hybrid inverter for next-generation photovoltaic installations. The HC (High Current) version allows it to work with panels with high operating current, offering greater design flexibility and higher PV system efficiency.
- AC rated power: 5,000 W
- Maximum PV power: 7,500 Wp
- Maximum efficiency: 98.4%
- Two independent MPPT circuits (13.5 A / 19.5 A)
- IP65 rating and quiet operation (≤ 29 dB)
Product description
The HUAWEI SUN2000-5KTL-M1-HC inverter combines high efficiency, safety and intelligent energy management. It is equipped with active arc protection (AFCI), RSD remote shutdown and connector temperature detection. It allows cooperation with HUAWEI LUNA2000 energy storage, which allows for increased self-consumption and emergency power supply in the event of grid failure. This model is part of the Smart Energy Controller series, created for modern residential and commercial installations.
Key features
- High Current version - support for panels with higher operating current
- Compatibility with LUNA2000-S0 and LUNA2000-S1 energy storage units
- Active AFCI and RSD protection with connector temperature detection
- High efficiency up to 98.4% and natural cooling
- Communication via RS485, WLAN, Ethernet or 4G (Smart Dongle)
Technical specifications
| Parameter | Value |
|---|---|
| Model | SUN2000-5KTL-M1-HC |
| Maximum efficiency | 98,4 % |
| European efficiency | 97,5 % |
| Recommended max PV power | 7,500 Wp |
| Max. dc input voltage | 1100 V |
| MPPT voltage range | 140 - 980 V |
| Starting voltage | 200 V |
| Rated DC voltage | 600 V |
| Max. input current MPPT | 13,5 A |
| Max. short-circuit current | 19,5 A |
| Number of MPPT | 2 |
| Compatible energy storage | Huawei LUNA2000-5/10/15-S0, LUNA2000-7/14/21-S1 |
| Battery voltage range | 600 - 980 V |
| Max. battery current | 20 A |
| Max. charging power | 10 000 W |
| Max. discharge power | 5 500 W |
| Network type | Three-phase |
| AC rated power | 5 000 W |
| Max. apparent power | 5,500 VA |
| AC output voltage | 220/380 V, 230/400 V, 240/415 V |
| Max. output current | 8,3 A |
| Power factor | 0.8 inductive - 0.8 capacitive |
| THD (harmonic distortion) | ≤ 3 % |
| Operating temperature range | -25 °C ... +60 °C |
| Cooling | Natural convection |
| Degree of protection | IP65 |
| Noise level | ≤ 29 dB |
| Dimensions (with handles) | 525 × 470 × 166 mm |
| Weight | approx. 17 kg |
| Compatible optimizers | SUN2000-450W-P2 / 600W-P |
Technical data source:data sheet of SUN2000-5KTL-M1-HC model Link
FAQ - Frequently asked questions
- Does the SUN2000-5KTL-M1-HC inverter work with energy storage? Yes, it supports Huawei LUNA2000 energy storage.
- How many MPPT tracks does the device have? The inverter has two independent MPPT tracks.
- What is the maximum DC input voltage? 1100 V.
- What is the maximum current of the MPPT? 13,5 A.
- Does the device support failure mode? Yes, in combination with the SmartGuard module.
- What kind of protection does the inverter have? AFCI, RSD, overvoltage, overcurrent and connector temperature detection.
- What are the dimensions of the inverter? 525 × 470 × 166 mm.
- What communication interfaces are available? RS485, WLAN, Ethernet, 4G (Smart Dongle).
- What are the compatible optimizers? SUN2000-450W-P2 and SUN2000-600W-P.
- What are the nightly losses? Less than 5.5 watts.
The HUAWEI SUN2000-5KTL-M1-HC inverter is a compact, efficient and safe solution for home PV installations. It combines high efficiency, support for high-current panels and compatibility with energy storage, ensuring maximum utilization of solar energy.
