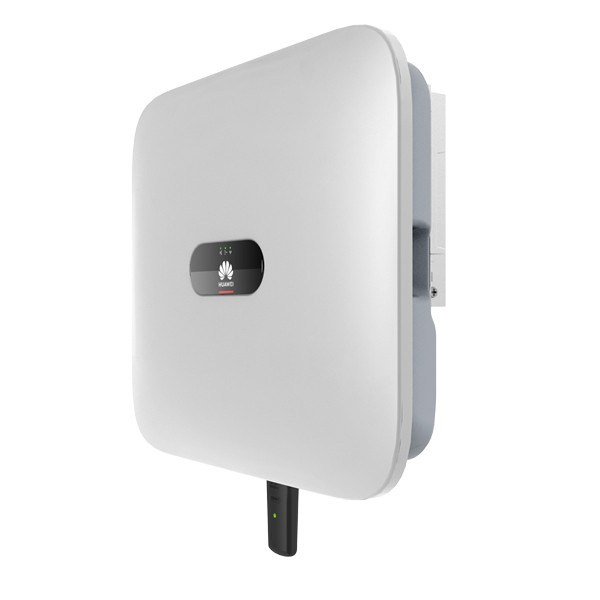

Huawei SUN2000-6KTL-M1-HC three-phase hybrid photovoltaic inverter High Current 6 kW 9000 Wp
- HUAWEI SUN2000-6KTL-M1-HC three-phase hybrid inverter for PV systems with energy storage, AC 6000 W rated power.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

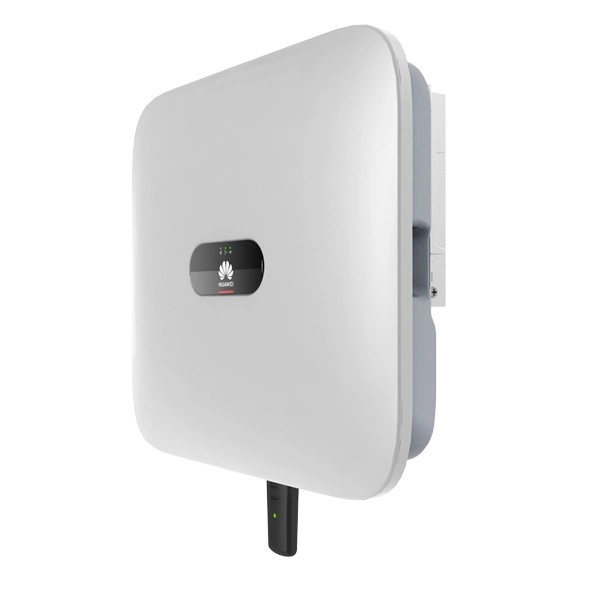

HUAWEI SUN2000-6KTL-M1-HC hybrid inverter
The HUAWEI SUN2000-6KTL-M1-HC is a 6 kW intelligent three-phase hybrid inverter for photovoltaic installations with energy storage connectivity. The HC (High Current) version provides support for higher input current from PV panels, allowing it to work with modern high-power modules with high operating current.
- AC rated power: 6,000 watts
- Maximum PV power: 9,000 Wp
- Maximum efficiency: 98.6%
- Two independent MPPT circuits (13.5 A / 19.5 A)
- IP65 rating and natural cooling
Product description
The HUAWEI SUN2000-6KTL-M1-HC inverter is part of the Smart Energy Controller series, featuring advanced safety and communication technologies. The device offers artificial intelligence-assisted active arc protection (AFCI), as well as built-in connector temperature detection. Thanks to its compatibility with energy storage, the HUAWEI LUNA2000 enables efficient energy management, including backup power when working with the SmartGuard module.
Key features
- Support for high-current photovoltaic modules (up to 13.5 A MPPT / 19.5 A Isc)
- Compatibility with LUNA2000 energy storage (5-30 kWh)
- Active AFCI, RSD protection and connector temperature detection
- RS485, WLAN, Ethernet and 4G communication (Smart Dongle)
- High efficiency - up to 98.6%
Technical data
| Parameter | Value |
|---|---|
| Model | SUN2000-6KTL-M1-HC |
| Maximum efficiency | 98,6 % |
| European efficiency | 98,0 % |
| Recommended max. PV power | 9,000 Wp |
| Max. dc input voltage | 1100 V |
| MPPT operating voltage range | 140 - 980 V |
| Starting voltage | 200 V |
| Rated DC voltage | 600 V |
| Max. input current MPPT | 13,5 A |
| Max. short-circuit current | 19,5 A |
| Number of MPPT | 2 |
| Compatible energy storage | Huawei LUNA2000-5/10/15-S0 or LUNA2000-7/14/21-S1 |
| Battery voltage range | 600 - 980 V |
| Max. battery current | 20 A |
| Max. charging power | 10 000 W |
| Max. discharge power | 6 600 W |
| Network type | Three-phase |
| AC rated power | 6 000 W |
| Max. apparent power | 6,600 VA |
| AC output voltage | 220/380 V or 230/400 V |
| Max. output current | 10,0 A |
| Power factor | 0.8 inductive - 0.8 capacitive |
| THD (harmonic distortion) | ≤ 3 % |
| Operating temperature range | -25 °C ... +60 °C |
| Cooling | Natural convection |
| Degree of protection | IP65 |
| Noise level | ≤ 29 dB |
| Dimensions (with handles) | 525 × 470 × 166 mm |
| Weight | approx. 17 kg |
| Compatible optimizers | SUN2000-450W-P2 / 600W-P |
Technical data source:data sheet of model SUN2000-6KTL-M1-HC Link
FAQ - Frequently Asked Questions
- Does the SUN2000-6KTL-M1-HC inverter work with energy storage? Yes, it is compatible with Huawei LUNA2000-S0 and S1 systems.
- How many MPPT tracks does the device have? The inverter has two independent MPPT tracks.
- What is the maximum DC input voltage? 1100 V.
- What is the maximum current of the MPPT? 13,5 A.
- Does the device support failure mode? Yes, in conjunction with the SmartGuard system.
- What kind of protection does the inverter have? AFCI, RSD, anti-overvoltage, overvoltage and connector temperature detection.
- What are the dimensions of the inverter? 525 × 470 × 166 mm.
- What communication interfaces does the device have? RS485, WLAN, Ethernet, 4G (Smart Dongle).
- What is the noise level? ≤ 29 dB.
- What is the operating temperature range? From -25 °C to +60 °C.
- What are the compatible optimizers? SUN2000-450W-P2 and SUN2000-600W-P.
The HUAWEI SUN2000-6KTL-M1-HC inverter is an efficient and reliable solution for next-generation PV systems. It combines high efficiency, safety and flexibility to offer compLeks energy control for your home or business.
