Huawei SUN2000-8KTL-M1-HC three-phase hybrid photovoltaic inverter High Current 8 kW IP65
- Three-phase hybrid inverter for photovoltaic systems with energy storage, works with Huawei LUNA2000, AC rated power 8000 W.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

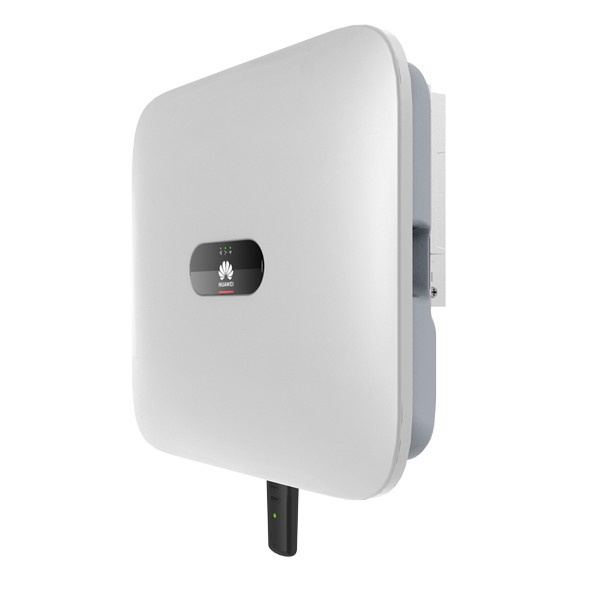

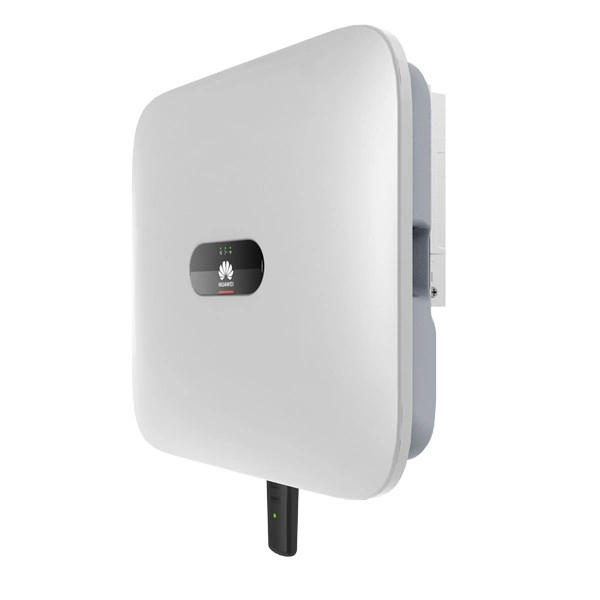

HUAWEI SUN2000-8KTL-M1-HC photovoltaic inverter
HUAWEI SUN2000-8KTL-M1-HC is a state-of-the-art 8 kW three-phase hybrid inverter from the High Current series, designed to work with energy storage systems. The device provides high efficiency, safety and integration with the Huawei FusionSolar smart monitoring system.
- AC rated power: 8,000 watts
- Maximum energy efficiency: 98.6%
- Two independent MPPT circuits
- IP65 protection and natural cooling
- Compatible with Huawei LUNA2000 energy storage devices
Product characteristics
The HUAWEI SUN2000-8KTL-M1-HC inverter is the heart of the next-generation photovoltaic system. With support for high-current PV strings and the ability to operate in hybrid mode, it ensures maximum utilization of solar energy while allowing surplus storage in batteries. AFCI technology with AI algorithm effectively protects the installation from the risk of arcing.
Features and benefits
- Hybrid mode of operation to work with energy storage
- Two independent MPPTs for optimized panel operation
- Built-in AC/DC protection and AFCI arc detection
- Communication via RS485 and WLAN (Smart Dongle)
- Wide operating temperature range and weather resistance
Technical data
| Parameter | Value |
|---|---|
| Device type | Three-phase hybrid inverter |
| Rated AC power | 8 000 W |
| Maximum apparent AC power | 8 800 VA |
| Maximum PV DC power | 12,000 Wp |
| Maximum DC input voltage | 1100 V |
| MPP voltage range | 140 - 980 V |
| DC starting voltage | ~200 V |
| Number of MPPT | 2 |
| Maximum MPPT current | 13,5 A |
| Maximum short-circuit current | 19,5 A |
| AC output voltage | 220/380 V or 230/400 V |
| Frequency | 50/60 Hz |
| Maximum efficiency | 98,6 % |
| European efficiency | 98 % |
| Protection | IP65 |
| Communication | RS485, WLAN (Smart Dongle) |
| Cooling | Natural |
| Operating temperature | -25 °C ... +60 °C |
| Dimensions | 525 × 470 × 146 mm |
| Weight | approx. 17 kg |
| Compatibility | Huawei LUNA2000 energy storage (5-30 kWh) |
Technical data source:data sheet of the SUN2000-8KTL-M1-HC model. link
Frequently Asked Questions (FAQ)
- Does the SUN2000-8KTL-M1-HC inverter work with energy storage? Yes, it is compatible with the Huawei LUNA2000 system.
- How many MPPT tracks does this model have? The inverter has two independent MPPT tracks.
- What is the maximum DC input voltage? The maximum voltage is 1100 V.
- What is the maximum efficiency of the device? The efficiency reaches 98.6%.
- Is the device weatherproof? Yes, thanks to the IP65 protection class.
- What communication interfaces are available? RS485 and WLAN (Smart Dongle).
- What are the dimensions of the inverter? Approximately 525 × 470 × 146 mm.
- Does the inverter support online monitoring? Yes, via apLication of Huawei FusionSolar.
- What are the device's protections? Short-circuit, overvoltage and AFCI protection.
- In what temperature range does it operate? From -25 °C to +60 °C.
- Is it possible to install outdoors? Yes, thanks to IP65 rating and natural cooling.
- What is the AC output voltage? 220/380 V or 230/400 V (3-phase).
- Does the inverter comply with EU standards? Yes, it meets the applicable quality and safety standards.
- Does it require external cooling? No, natural cooling is used.
- Is a software update available? Yes, possible through apLication of FusionSolar.
The HUAWEI SUN2000-8KTL-M1-HC inverter is an ideal solution for modern PV installations, providing efficient energy management. Thanks to its hybrid architecture and high efficiency, it guarantees long-term and stable operation of the photovoltaic system.
