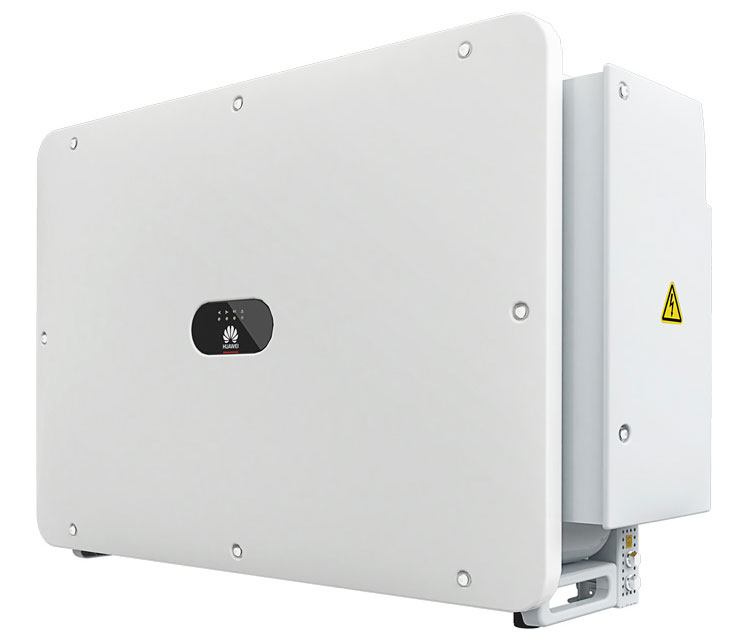

Huawei three-phase photovoltaic inverter SUN2000-115KTL-M2 grid inverter 115 kW 10 MPPT IP66
- Huawei SUN2000-115KTL-M2 three-phase grid-tied inverter for PV installation, panel power conversion to AC, output power rating of 115,000 watts.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Huawei SUN2000-115KTL-M2 Three-phase Network Inverter
Huawei SUN2000-115KTL-M2 is a high-performance three-phase grid inverter designed for large commercial and industrial installations. The device combines very high power conversion efficiency, maximum safety and configuration flexibility with up to 10 independent MPPT paths. With its AFCI technology and I-V curve diagnostic function, it ensures reliable, safe and intelligent PV system operation.
- Maximum efficiency of 98.7%
- 10 independent MPPT paths with 20 DC inputs
- Active arc fault protection (AFCI) with AI
- IP66 and C5 industrial grade immunity
- Built-in PID Recovery function and I-V diagnostics
Product description
The Huawei SUN2000-115KTL-M2 inverter is among the latest generation of smart inverters for commercial applications. It is designed for high power density, simple installation and maximum safety. Thanks to 10 MPPT circuits, it is possible to manage groups of PV panels independently, which optimizes energy yield under varying solar conditions. The device is compatible with Huawei SUN2000-450W-P optimizers and allows remote diagnostics and configuration via pLatforma FusionSolar.
Efficiency and safety
The inverter achieves a maximum efficiency of 98.7% and a European efficiency of 98.4%. It has a full set of safety features, including Type II surge protection on both the DC and AC sides, active arc fault protection (AFCI), leakage current monitoring function and reverse polarity protection. In addition, an integrated PID Recovery function protects modules from degradation. IP66 protection and C5 corrosion resistance allow installation even in harsh industrial and coastal environments.
Technical data
| Efficiency | |
|---|---|
| Maximum efficiency | 98,7% |
| European efficiency | 98,4% |
| Input (DC) | |
| Recommended maximum PV power | 150,000 Wp |
| Maximum input voltage | 1100 V |
| MPPT operating voltage range | 200 V - 1000 V |
| Rated input voltage | 720 V @480 V AC / 600 V @400 V AC |
| Number of MPPT | 10 |
| Maximum number of DC inputs | 20 (2 per MPPT) |
| Maximum input current of MPPT | 30 A |
| Maximum short circuit current of MPPT | 40 A |
| Output (AC) | |
| Connection type | Three-phase, direct to grid |
| Rated output power | 115 000 W |
| Maximum apparent power | 126,500 VA |
| Rated output voltage | 380/400/415 V, 3W + N + PE |
| Rated mains frequency | 50 Hz / 60 Hz |
| Nominal output current | 166 A @400 V |
| Maximum output current | 182 A @400 V |
| Power factor | 0.8 leading - 0.8 lagging |
| Total harmonic distortion (THD) | ≤3% |
| Protection | |
| Protection against islanding operation | Yes |
| AC overcurrent protection | Yes |
| AC short circuit protection | Yes |
| DC surge protection | Type II |
| AC surge protection | Type II |
| Leakage current monitoring unit (RCMU) | Yes |
| Active arc fault protection (AFCI) | Yes |
| Integrated PID Recovery function | Yes |
| General data | |
| Operating temperature range | -25°C ~ +60°C |
| Maximum altitude. | 4000 m (power reduction above 2000 m) |
| Relative humidity | 0% - 100% |
| Cooling | Active air cooling |
| Dimensions (W × H × D) | 1035 × 700 × 365 mm |
| Weight | 93 kg |
| Degree of protection | IP66, immunity class C5 |
| Power consumption at night | <3,5 W |
| Communication and monitoring | |
| Communication interface | RS485, MBUS |
| WLAN / Ethernet / 4G support | Yes (with Smart Dongle module) |
| ApLication for monitoring | Huawei FusionSolar |
| I-V curve diagnostics | Yes |
Technical data source:data sheet of the SUN2000-115KTL-M2 model. link
FAQ
- What is the efficiency of the inverter? Maximum 98.7%, European 98.4%.
- What is the output power? 115,000 W of active power, 126,500 VA of apparent power.
- How many MPPTs does the device support? 10 independent MPPT tracks, each with two inputs.
- What is the MPPT voltage? 200-1000 V, optimal 720 V.
- Does it have AFCI protection? Yes, active arc protection with AI.
- What are its dimensions and weight? 1035 × 700 × 365 mm, 93 kg.
- What protections are built in? SPD Type II, PID Recovery, RCMU, AFCI, overcurrent and short-circuit protection.
- What are the environmental conditions for operation? From -25°C to +60°C, IP66 and C5 immunity.
- Is it compatible with optimizers? Yes, with the Huawei SUN2000-450W-P.
- Does it support remote monitoring? Yes, via pLatforma FusionSolar and Smart Dongle.
Summary
The Huawei SUN2000-115KTL-M2 is a 115 kW industrial-grade three-phase inverter designed for large PV installations. With 10 MPPT, the highest efficiency of 98.7%, and advanced protection including PID Recovery and AFCI, the device guarantees maximum efficiency, safety and reliability in long-term expLoatation.
