Huawei three-phase photovoltaic inverter SUN2000-30KTL-M3 grid inverter IP66 efficiency 98.6%
- Three-phase grid inverter for PV installation, converts DC power to AC power, AC rated power of 30,000 watts.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

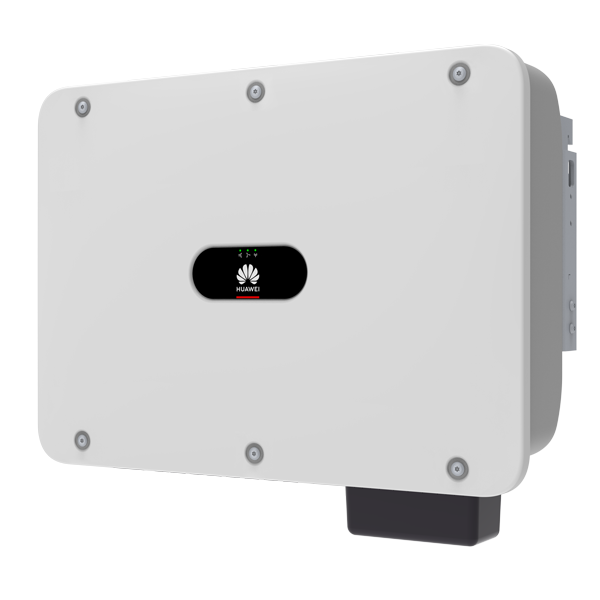

HUAWEI SUN2000-30KTL-M3 inverter
The HUAWEI SUN2000-30KTL-M3 is a 30 kW three-phase grid-tied inverter designed for commercial and industrial photovoltaic installations. The device features high efficiency, advanced safety features and full compatibility with HUAWEI optimizers, ensuring maximum PV system efficiency.
- AC rated power: 30,000 watts
- Maximum efficiency: 98.6%
- 4 independent MPPT paths and 8 DC inputs
- MPPT voltage range: 200 - 1000 V
- IP66 rating and convection cooling
Product description
The HUAWEI SUN2000-30KTL-M3 inverter is part of the Smart String Inverter line, combining intelligent monitoring functions with industrial-grade reliability. The applied active arc protection technology (AFCI), Type II overvoltage protection and built-in PID Recovery system guarantee maximum installation safety. With a high efficiency of 98.6%, the device enables maximum energy yield under all operating conditions.
Key features
- High conversion efficiency - up to 98.6%
- 4 independent MPPT paths and 8 DC inputs
- AFCI, DC/AC type II overvoltage protection and PID recovery function
- RS485, WLAN, Ethernet and 4G communication (Smart Dongle)
- Compatibility with SUN2000-450W-P and SUN2000-600W-P optimizers
Technical data
| Parameter | Value |
|---|---|
| Model | SUN2000-30KTL-M3 |
| Maximum efficiency | 98,6 % |
| European efficiency | 98,3 % |
| Max. DC input voltage | 1100 V |
| MPPT voltage range | 200 - 1000 V |
| Starting voltage | 200 V |
| Rated DC voltage | 600 V |
| Max. current per MPPT | 26 A |
| Max. short-circuit current MPPT | 40 A |
| Number of MPPT | 4 |
| Number of DC inputs | 8 |
| Rated AC power | 30 000 W |
| Apparent AC power | 33,000 VA |
| AC output voltage | 230 V / 400 V, 3W+N+PE |
| Network frequency | 50 / 60 Hz |
| Rated output current | 43,4 A |
| Max. output current | 47,8 A |
| Power factor | 0.8 inductive - 0.8 capacitive |
| THD | < 3 % |
| AFCI protection | Yes (AI) |
| DC/AC overvoltage protection | Type II |
| Leakage current protection | Yes |
| Integrated PID recovery function | Yes |
| Communication | RS485, WLAN, Ethernet, 4G/3G (Smart Dongle) |
| Display | LED + apLication FusionSolar |
| Dimensions (W × H × D) | 640 × 530 × 270 mm |
| Weight | approx. 38 kg |
| Cooling | Natural convection |
| Degree of protection | IP66 |
| Operating temperature range | -25 °C ... +60 °C |
| Max. working altitude | 4000 m above sea level |
| Noise level | < 46 dB |
| Standby power consumption | < 5,5 W |
Technical data source:data sheet of the SUN2000-30KTL-M3 model Link
FAQ - Frequently asked questions
- Is the SUN2000-30KTL-M3 inverter compatible with power optimizers? Yes, it is compatible with SUN2000-450W-P and SUN2000-600W-P optimizers.
- How many MPPT tracks does the device have? Four independent MPPT tracks and eight DC inputs.
- What is the maximum DC input voltage? 1100 V.
- Does the inverter have active arc protection? Yes, thanks to AFCI technology based on artificial intelligence.
- What communication interfaces does it have? RS485, WLAN, Ethernet and 4G (Smart Dongle).
- What is the cooling of the device? Natural convection - no fans.
- What are the dimensions and weight? 640 × 530 × 270 mm, weight about 38 kg.
- What kind of protection does it have? AFCI, overvoltage type II, leakage current, PID recovery.
- What is the degree of protection of the housing? IP66 - dust and water resistance.
- What is the rated voltage of AC? 400 V (three-phase).
The HUAWEI SUN2000-30KTL-M3 inverter is a reliable and modern solution for commercial PV systems, offering exceptional efficiency and safety. The device is an excellent choice for investors looking for durability, intelligent monitoring and efficient energy management.
