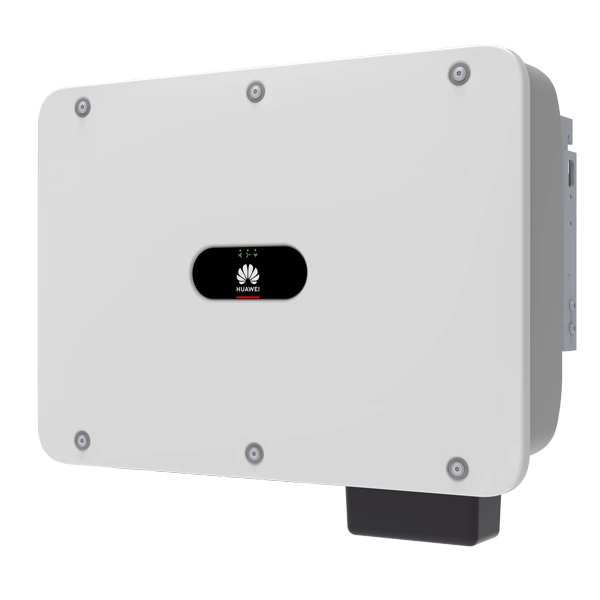

HUAWEI SUN2000-36KTL-M3 inverter
The HUAWEI SUN2000-36KTL-M3 is a 36 kW three-phase grid-tied inverter dedicated to medium and large photovoltaic installations. The device offers high efficiency, intelligent energy management functions and extensive protection, ensuring reliability and maximum energy yields for PV systems.
- Rated AC power: 36,000 W
- Maximum efficiency: 98.7%
- MPPT voltage range: 200 - 1000 V
- 4 MPPT paths and 8 DC inputs
- IP66 rating and convection cooling
Product description
The HUAWEI SUN2000-36KTL-M3 inverter is a state-of-the-art inverter from the Smart String series, designed for efficient photovoltaic installations. The device is distinguished by its high efficiency of 98.7%, low self-loss and a compLetable set of protections: AFCI protection, DC/AC overvoltage type II and leakage current detection function. With RS485, WLAN, Ethernet and 4G communications, it provides easy monitoring and integration with pLatform Huawei FusionSolar.
Key features
- High conversion efficiency - up to 98.7%
- 4 independent MPPT paths and 8 DC inputs
- Active AFCI protection against arcing
- Type II overvoltage protection on DC and AC side
- Cooperation with SUN2000-450W-P and SUN2000-600W-P optimizers
Technical data
| Parameter | Value |
|---|---|
| Model | SUN2000-36KTL-M3 |
| Maximum efficiency | 98,7 % |
| European efficiency | 98,4 % |
| Max. DC input voltage | 1100 V |
| MPPT voltage range | 200 - 1000 V |
| Starting voltage | 200 V |
| Rated DC voltage | 600 V |
| Max. current per MPPT | 26 A |
| Max. short-circuit current MPPT | 40 A |
| Number of MPPT | 4 |
| Number of DC inputs | 8 |
| Rated AC power | 36 000 W |
| Apparent AC power | 39,600 VA |
| AC output voltage | 230 V / 400 V, 3W+N+PE |
| Network frequency | 50 / 60 Hz |
| Rated output current | 52,0 A |
| Max. output current | 57,2 A |
| Power factor | 0.8 inductive - 0.8 capacitive |
| THD | < 3 % |
| AFCI protection | Yes (AI) |
| DC/AC overvoltage protection | Type II |
| Leakage current protection | Yes |
| Integrated PID recovery function | Yes |
| Communication | RS485, WLAN, Ethernet, 4G/3G (Smart Dongle) |
| Display | LED + apLication FusionSolar |
| Dimensions (W × H × D) | 640 × 530 × 270 mm |
| Weight | approx. 40 kg |
| Cooling | Natural convection |
| Degree of protection | IP66 |
| Operating temperature range | -25 °C ... +60 °C |
| Max. working altitude | 4000 m above sea level |
| Noise level | < 46 dB |
| Standby power consumption | < 5,5 W |
Technical data source:data sheet of the SUN2000-36KTL-M3 model Link
FAQ - Frequently asked questions
- Does the SUN2000-36KTL-M3 inverter work with power optimizers? Yes, it supports SUN2000-450W-P and SUN2000-600W-P optimizers.
- How many MPPT tracks does the device have? Four independent MPPT tracks and eight DC inputs.
- What is the maximum DC input voltage? 1100 V.
- Does the inverter have active AFCI protection? Yes, using AI algorithms for arc detection.
- What communication interfaces are available? RS485, WLAN, Ethernet and 4G (Smart Dongle).
- What is the cooling of the device? Natural convection - no fans.
- What are the dimensions and weight of the device? 640 × 530 × 270 mm, weight 40 kg.
- What is the degree of protection? IP66 - full resistance to dust and water.
- What are the certifications and compliance standards? IEC 62109-1/2, EN 50530, IEC 62116.
- What is the rated voltage of AC? 400 V (three-phase).
HUAWEI SUN2000-36KTL-M3 inverter is a modern solution for industrial PV systems, offering high efficiency, reliability and safe operation. The applied Huawei technologies guarantee maximum energy yield and long life of the device.
