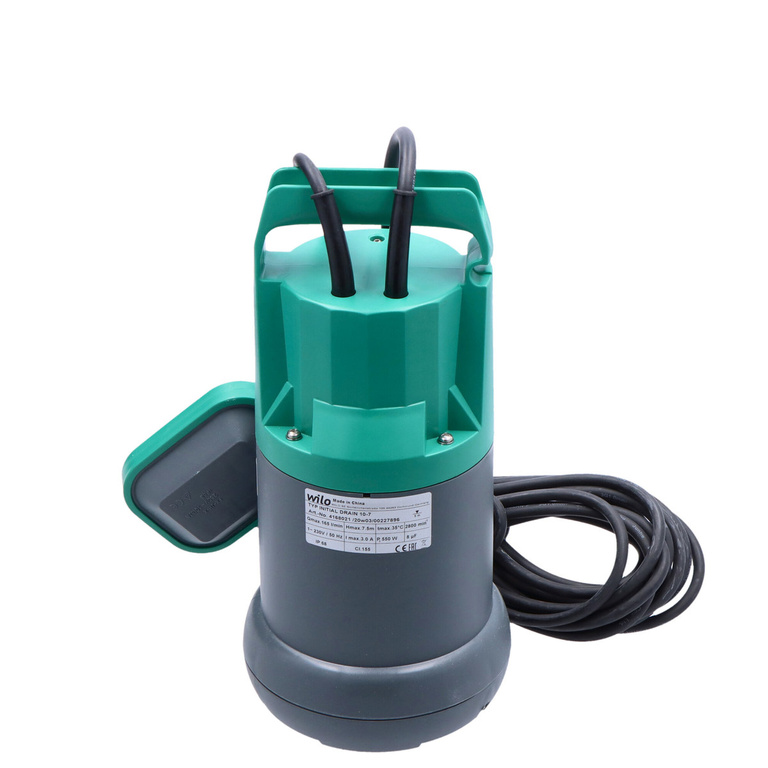

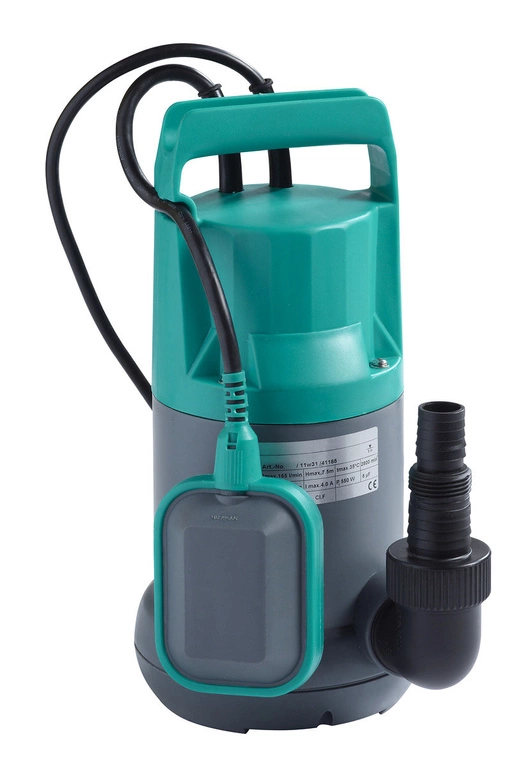

WILO Initial DRAIN 10-7 drainage pump for dirty water, with float switch and 10mb cable
WILO Initial DRAIN 10-7 drainage pump for dirty water, with float switch and 10mb cable
WILO Initial DRAIN 10-7 drainage pump for dirty water, with float switch and 10mb cable
WILO Initial DRAIN 10-7 drainage pump for dirty water, with float switch and 10mb cable
WILO Initial DRAIN 10-7 drainage pump for dirty water, with float switch and 10mb cable
WILO Initial DRAIN 10-7 drainage pump for dirty water, with float switch and 10mb cable

WILO Initial DRAIN 10-7 drainage pump for dirty water, with float switch and 10mb cable

+ Add to compareAdd to shopping list
Size
P/N:

132,95 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
Product available in our warehouse
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in our warehouse
Shipment
Cheap and fast delivery
14 days for easy returns
This store offers an additional guarantee of up to €20,000 and Trusted Shops insurance. You receive the purchased item or a refund.
After purchase you will receive pts.
Brand
WILO
Entity responsible for this product in the EU
WILO-POLSKA SP.Z O.O.More
Address: JEDNOŚCI 5Postal code: 05-506City: LESZNOWOLACountry: PolskaE-mail: wilo.pl@wilo.com
Symbol
4168021
Producer code
4048482250830
Series
Wilo-Initial Drain
Warranty
5 Year Warranty

Initial DRAIN 10-7/523/AEF-10M (No. 4168021) is a submersible pump designed for portable setting in intermittent operation, ideal for pumping contaminated water (with a small content of sand and gravel) in households. The pump is designed for wet conditions, where it can be submerged up to a depth of 5 meters

The unit is equipped with a Vortex-type impeller and a vertical discharge port with a threaded connection (male thread). The pump body and impeller are made of composite material (PP and PA6-GF30), and the drive is a single-phase AC motor with surface cooling. The motor has an integrated operating capacitor, automatic thermal control (Autoreset, bimetal protection) and a radial seal ring. The motor body is made of steel, and the pump is supplied with a 10-meter power cable (type H05RN-F, 3G1 mm²) terminated with a CEE7/7 plug

The system is equipped with a float switch to protect the unit from dry running. The whole system is supplied with installation/operation instructions

Technical Data

  • Operating data
    • Hydraulic system type: Free-flow impeller
    • Free ball passage in hydraulic system: 5 mm
    • Max. working pressure (PN): 3 bar
    • Max. immersion depth: 5 m
    • Temperature of pumped liquid: 5 °C (min) - 35 °C (max)
    • Ambient temperature: 3 °C (min) - 35 °C (max)
    • Max flow rate (Qmax): 13.0 m³/h
    • Headroom max (Hmax): 8.6 m
  • Motor data
    • Mains connection: 1~230 V, 50 Hz (tolerance ±5%)
    • Rated motor power (P2): 0.37 kW
    • Rated speed (n): 2900 1/min
    • Rated current (IN): 3 A
    • Power consumption (P1 max): 550 W
    • Max. switching frequency: 60 1/h
    • Switching type: Directly online (DOL)
    • Insulation class: F
    • Motor protection class: IP68
  • Power cable
    • Length: 10 m
    • Type: H05RN-F
    • Cross section: 3G1 mm²
    • Plug: CEE7/7 (with protective contacts)
  • Materials
    • Pump body: PP
    • Impeller: PA6-GF30
    • Shaft: Stainless steel
    • Seal material: NBR
    • Motor material: Steel

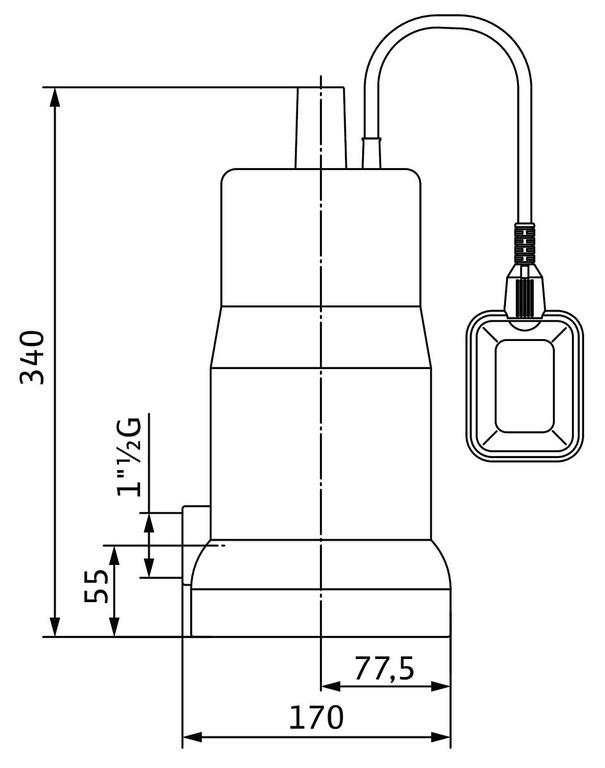

  • Installation dimensions
    • Discharge side connection: G 1½
  • Additional information
    • Product: Wilo
    • Product name: Initial DRAIN 10-7/523/AEF-10M
    • Article number: 4168021
    • Net weight: 5.1 kg
