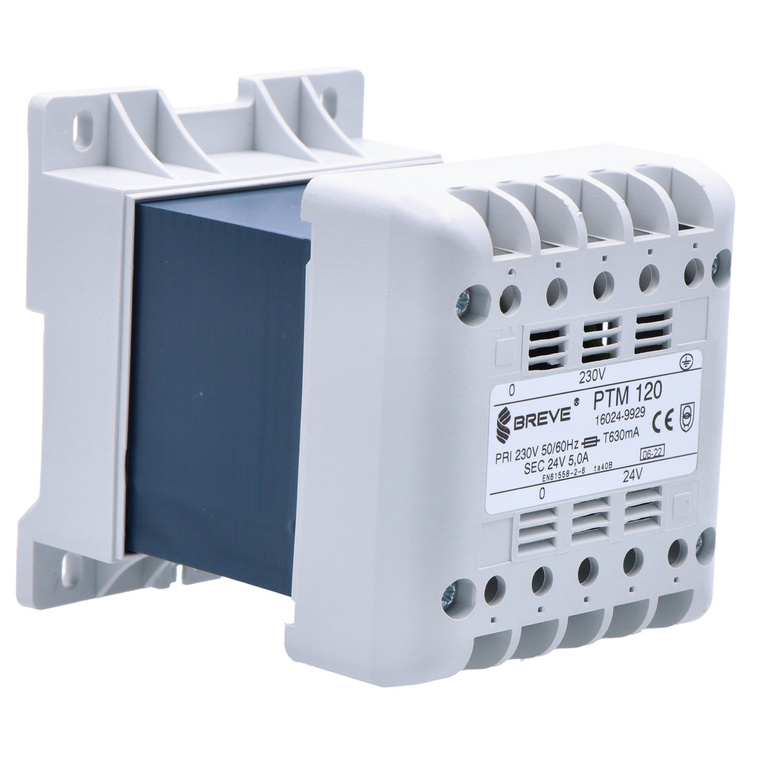

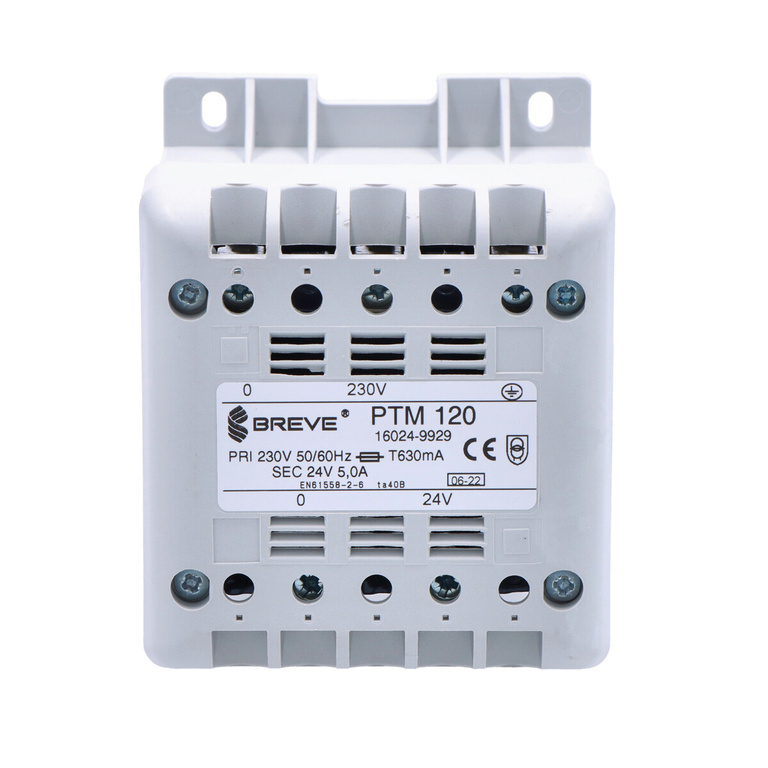

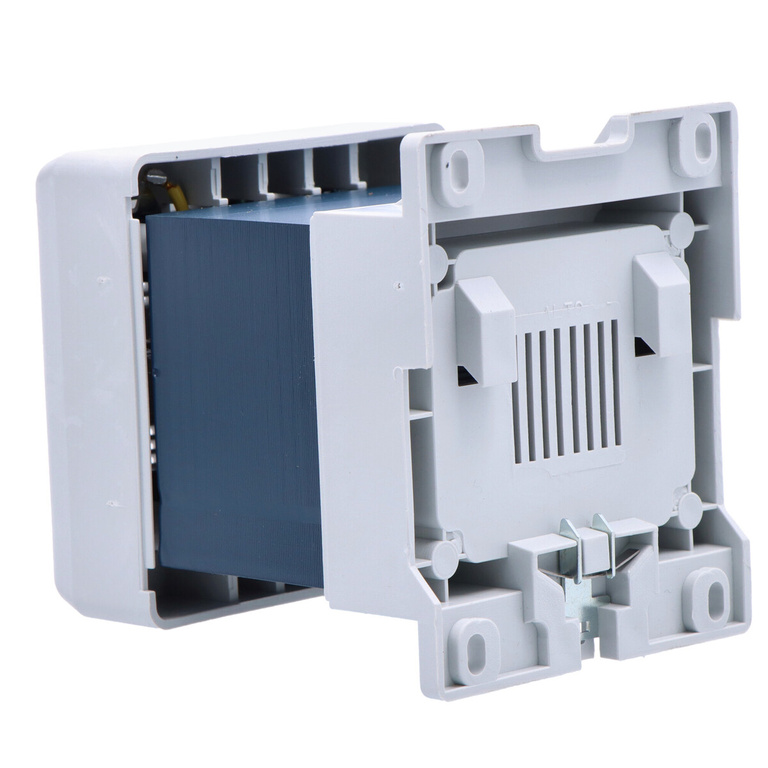

PTM 120 230V 24V IP21 single-phase transformer for DIN rail TH-35 enclosure
PTM 120 230V 24V IP21 single-phase transformer for DIN rail TH-35 enclosure
PTM 120 230V 24V IP21 single-phase transformer for DIN rail TH-35 enclosure
PTM 120 230V 24V IP21 single-phase transformer for DIN rail TH-35 enclosure
PTM 120 230V 24V IP21 single-phase transformer for DIN rail TH-35 enclosure
PTM 120 230V 24V IP21 single-phase transformer for DIN rail TH-35 enclosure
PTM 120 230V 24V IP21 single-phase transformer for DIN rail TH-35 enclosure
PTM 120 230V 24V IP21 single-phase transformer for DIN rail TH-35 enclosure

PTM 120 230V 24V IP21 single-phase transformer for DIN rail TH-35 enclosure

+ Add to compareAdd to shopping list
  • PTM 120 230V/24V single-phase transformer for DIN rail TH-35 in housing, insulation class I, IP21. Power 100-320VA, input voltage 110-400V, output voltage 6-250V. Easy installation, operating temperature up to 40°C.
Size
P/N:

93,40 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
Product available in our warehouse
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in our warehouse
Shipment
Cheap and fast delivery
30 days for easy returns
This store offers an additional guarantee of up to €20,000 and Trusted Shops insurance. You receive the purchased item or a refund.
After purchase you will receive pts.
Brand
BREVE
Entity responsible for this product in the EU
BREVE TUFVASSONS SP.Z.O.OMore
Address: POSTĘPOWA 25/27Postal code: 93-347City: ŁÓDŹCountry: PolskaE-mail: handel@breve.pl
Producer code
5907812716035
Warranty
24 Months Warranty
Manufacturer's Index
16024-9929

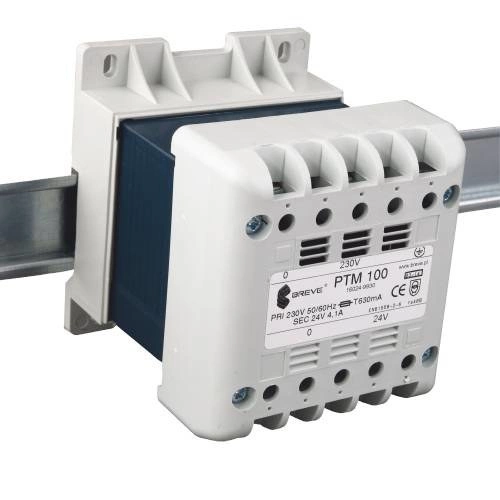

PTM - TRANSFORMERS FOR DIN RAIL

Safety or isolation enclosed transformers PTM, designed mainly for installation in devices using T-35 bus. Aesthetic enclosure with spring handle significantly facilitates and accelerates the mounting. Execution in insulation class I and protection degree IP21, max. ambient temperature 40°C, thermal insulation class B (130°C). Execution in accordance with PN-EN 61558-2-4, PN-EN 61558-2-6.

Power range: 100 - 320VA
PRI voltage range: 110 - 400V 50/60Hz
SEC voltage range: 6 - 250V
