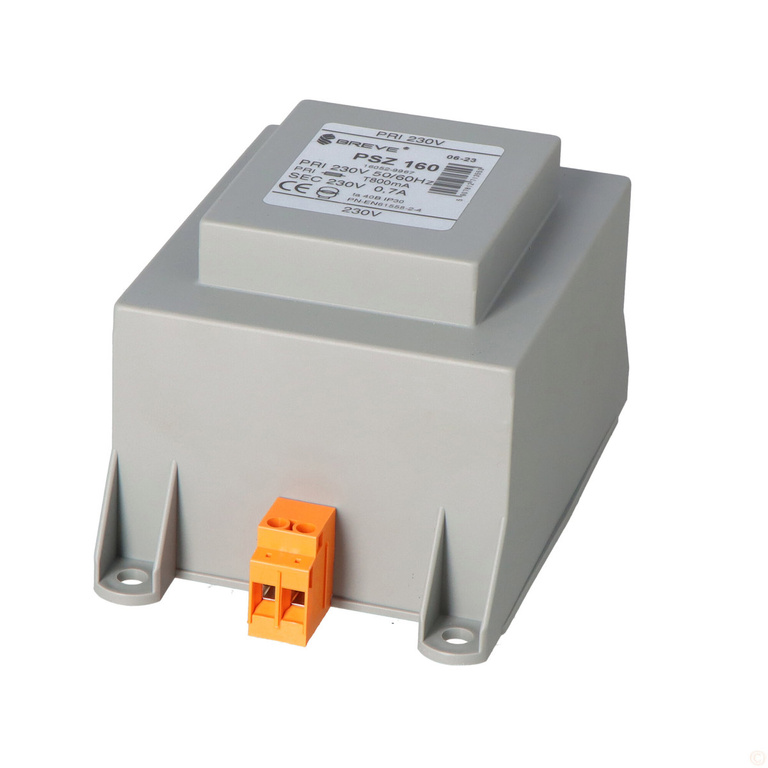

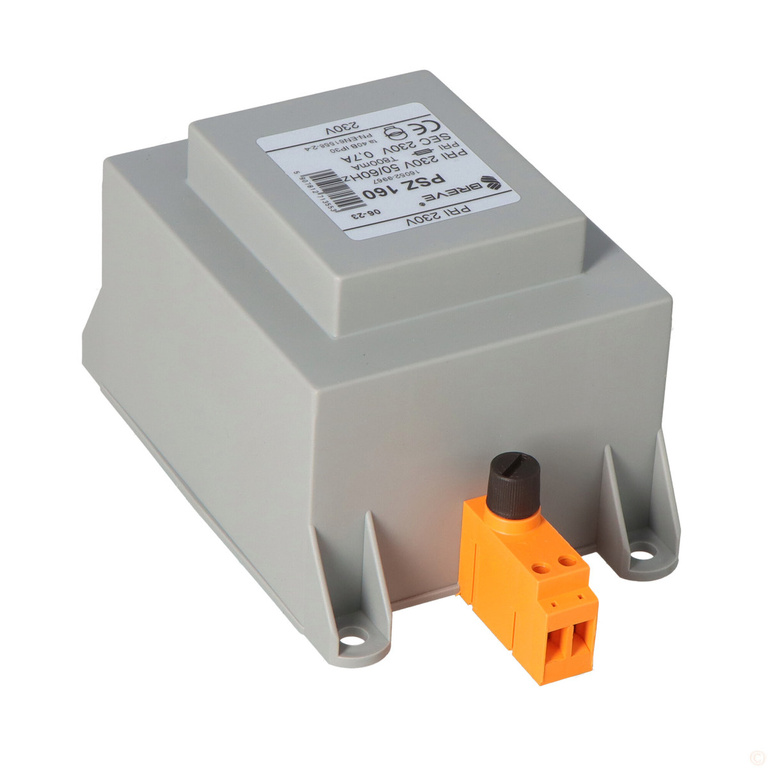

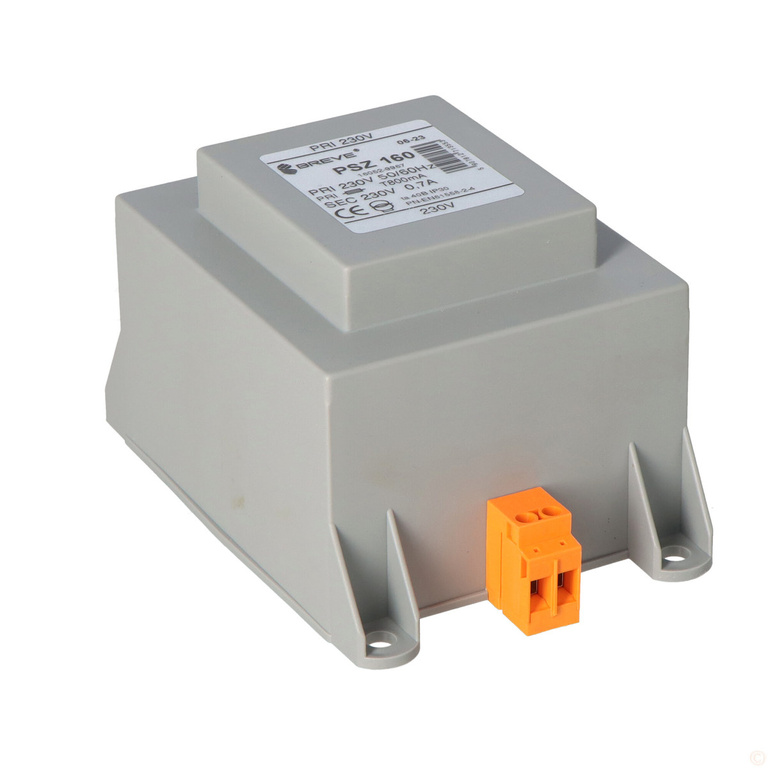

Single-phase transformer PSZ 160 230V to 230V IP30 on DIN rail TH-35 in modular housing with protection
Single-phase transformer PSZ 160 230V to 230V IP30 on DIN rail TH-35 in modular housing with protection
Single-phase transformer PSZ 160 230V to 230V IP30 on DIN rail TH-35 in modular housing with protection
Single-phase transformer PSZ 160 230V to 230V IP30 on DIN rail TH-35 in modular housing with protection
Single-phase transformer PSZ 160 230V to 230V IP30 on DIN rail TH-35 in modular housing with protection
Single-phase transformer PSZ 160 230V to 230V IP30 on DIN rail TH-35 in modular housing with protection
Single-phase transformer PSZ 160 230V to 230V IP30 on DIN rail TH-35 in modular housing with protection
Single-phase transformer PSZ 160 230V to 230V IP30 on DIN rail TH-35 in modular housing with protection

Single-phase transformer PSZ 160 230V to 230V IP30 on DIN rail TH-35 in modular housing with protection

+ Add to compareAdd to shopping list
  • PSZ 160 230V/230V single-phase transformer for mounting on DIN rail TH-35. Modular housing, insulation class II, IP30, power 100-200VA, input/output voltages 110-500V/6-250V. Thermal protection.
Size
P/N:

98,81 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
Notify about availability
You can also buy using:
Product sold out
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product sold out
Shipment
Cheap and fast delivery
30 days for easy returns
This store offers an additional guarantee of up to €20,000 and Trusted Shops insurance. You receive the purchased item or a refund.
After purchase you will receive pts.
Brand
BREVE
Entity responsible for this product in the EU
BREVE TUFVASSONS SP.Z.O.OMore
Address: POSTĘPOWA 25/27Postal code: 93-347City: ŁÓDŹCountry: PolskaE-mail: handel@breve.pl
Producer code
5907812713553
Warranty
24 Months Warranty
Manufacturer's Index
16052-9967
PSZ - TRANSFORMERS FOR DIN RAIL

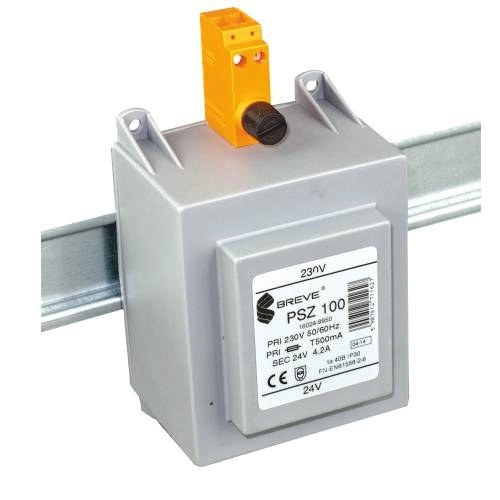

PSZ isolation or safety enclosed transformers, are usually designed for mounting on a T-35 rail. Aesthetic housing with a spring handle significantly facilitates and accelerates the mounting. Execution in insulation class II and degree of protection IP30, max ambient temperature 40°C, thermal insulation class B (130°C). Execution in accordance with EN 61558-2-4, EN 61558-2-6.

Power range: 100 - 200VA
PRI voltage range: 110 - 500V 50/60Hz
SEC voltage range: 6 - 250V
