Dahua DH-XVR5104HS-4KL-I3 compact WizSense 4K-N H.265+ 1xHDD 16 TB digital recorder 4 channels

Dahua DH-XVR5104HS-4KL-I3 4-channel WizSense 4K-N/5MP Compact 1U 1HDD DVR

This is a 4-channel penta-bridged WizSense DVR supporting HDCVI, AHD, TVI, CVBS and IP signals with AI Coding/H.265+/H.265/H.264+/H.264 video compression. The device offers artificial intelligence functions including SMD PLus, perimeter protection, face detection and recognition, and support for up to 8 IP channels.

• 4 channels of analog BNC inputs with HDCVI/AHD/TVI/CVBS adaptive access
• Up to 8 IP channels (4 IP by default + 4 after analog channel conversion), input bandwidth of 64 Mbps
• AI Coding and H.265+/H.265/H.264+/H.264 double stream compression
• AI functions: SMD PLus, perimeter protection, face detection, face recognition
• HDMI (up to 3840 × 2160) and VGA (up to 1920 × 1080) video outputs
• 1 SATA hard drive slot for up to 16 TB and numerous communication ports, including RS-485 and 2× USB 2.0

Description and features of the WizSense series

The Dahua DH-XVR5104HS-4KL-I3 is part of the XVR5000-4KL-I3 WizSense series, which uses an autonomous AI chip and deep learning algorithm to accurately recognize people and vehicles. According to the manufacturer's documentation, the series is designed to reduce false alarms and the cost of video surveillance by accurately alarming people and vehicles in various indoor and outdoor facilities.

Advanced smart and utility features

The DVR supports face recognition function with a database of up to 10 databases and 20,000 images, and operation of 1 face recognition channel and 1 face detection channel (up to 8 face images per second). The SMD function PLus implements secondary alarm filtering for people and motor vehicles, reducing false alarms caused by foliage, rain and light changes, and perimeter protection automatically filters alarms caused by animals, rustling leaves or strong light, improving detection accuracy. Also available, according to the manufacturer's documentation, are Scheduled AI function settings, Smart Dual Illuminators technology (IR/white light switching control for target detection), One-click Arming/Disarming, the ability to upload custom audio messages, and audio transmission over coaxial cable.

Supports video, network and recording signals

The device supports video signals up to 4K from HDCVI, AHD and TVI cameras, as well as 6 MP, 5 MP, 4 MP, 3 MP, 1080p and 720p modes with specific frame rates. The DVR allows recording in various modes, including general, motion detection, smart, alarm and POS, as well as 1/4 channel playback and smart playback (face and motion detection). According to the manufacturer's documentation, multiple network protocols are available (HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P), cooperation with selected camera manufacturers (ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Samsung) and mobile access via iOS and Android.

Source of technical data:manufacturer's documentation DAHUA datasheet of model DH-XVR5104HS-4KL-I3 Dokumentacja producenta

FAQ - frequently asked questions

• How many analog channels does the DH-XVR5104HS-4KL-I3 DVR support?
  The DVR supports 4 channels of analog BNC inputs with adaptive access.
• Does the device support IP cameras?
  Yes, it supports up to 8 channels of IP cameras: 4 IP channels by default and additional 4 after converting analog channels.
• What is the maximum resolution of CVI video supported by the DVR?
  According to the manufacturer's documentation, CVI resolutions up to 4K are supported.
• What hard drive capacity can be installed in the device?
  The DVR has 1 SATA port and supports a hard drive capacity of up to 16 TB, with the maximum capacity depending on the ambient temperature.
• What artificial intelligence features are available on this model?
  Available features include SMD PLus, perimeter protection, face detection and face recognition.
• How many face images per second can the face detection function process?
  The face detection function supports up to 8 face images per second on a single channel.
• What is the capacity of the face database in the recorder?
  The device can create up to 10 face databases with a total capacity of up to 20,000 images.
• Do AI functions remain active after expanding the number of IP channels?
  According to the manufacturer's documentation, after adding IP channels above the existing channels, AI functions (IVS, SMD, FACE) are disabled.
• What video compression standards are supported?
  The DVR supports AI Coding, H.265+, H.265, H.264+ and H.264.
• What output resolutions do the HDMI and VGA connectors offer?
  The VGA output supports up to 1920 × 1080, and the HDMI output supports up to 3840 × 2160.
• Does the device have a dual stream function?
  Yes, the manufacturer's documentation indicates dual stream support.
• What network protocols are supported?
  Supported protocols include HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS and P2P.
• Is it possible to access the DVR from a cell phone?
  Yes, the manufacturer's documentation states support for pLatform mobile iOS and Android.
• What recording modes are available?
  The DVR allows recording in general, motion detection, smart, alarm and POS modes.
• What are the operating temperature ranges of the device?
  The operating temperature range is -10 °C to +55 °C.
• What are the dimensions and weight of the recorder?
  The dimensions of the device are 260.0 mm × 237.9 mm × 47.6 mm, and the net weight is 0.53 kg.
• What certifications does this model have?
  Among other things, the recorder has FCC Part 15 Subpart B and CE (LVD and EMC) certifications in accordance with the listed standards.
• Does the device support two-way audio communication?
  Yes, the DVR supports two-way audio, sharing the same audio input with the first channel.

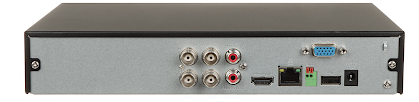

• What communication ports are available on the rear panel?
  Available ports include VIDEO IN, AUDIO IN/OUT (RCA), HDMI, VGA, network RJ-45, RS-485, USB, power input and ground.
• What is the type of DVR installation?
  According to the manufacturer's documentation, a desktop installation of the device is provided.

The Dahua DH-XVR5104HS-4KL-I3 DVR combines support for analog and IP signals with artificial intelligence features, enabling advanced video analysis and false alarm reduction. According to the manufacturer's documentation, the compact 1U chassis, support for up to 16 TB of storage and a wide range of interfaces make it a flexible solution for video surveillance systems.
